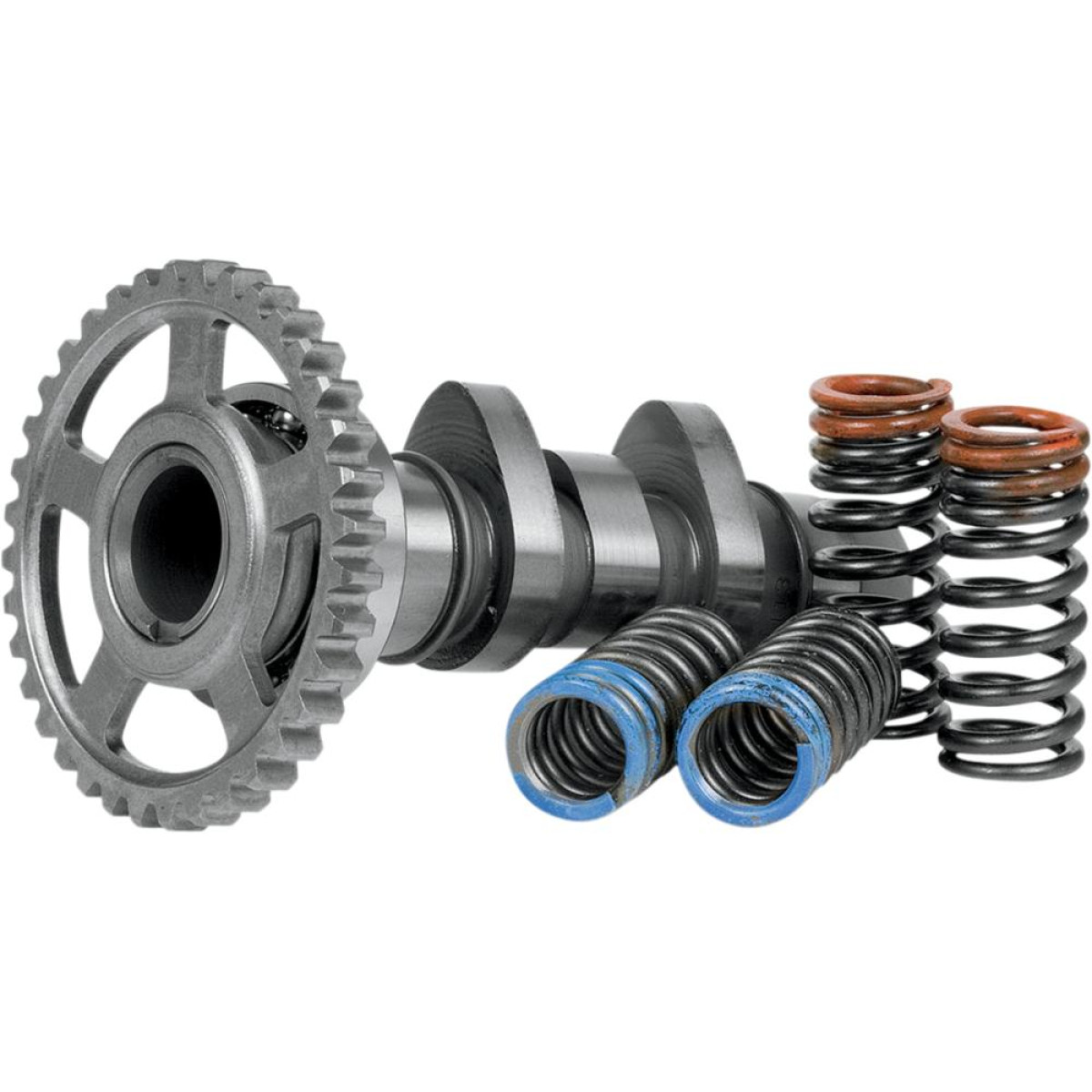

HOT CAM XR650 STAGE 2

Intake/Exhaust Camshaft

• High-performance racing camshafts
• Stage 1 and Stage 2 performance camshafts are drop-in cams that are designed to be used with stock valve springs
• In most applications, Stage 1 cams deliver more torque and Stage 2 cams provide more peak horsepower
• Select cams feature Hot Cams Improved Throttle Design (ITR) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end

More aggressive than the HRC profile with more top-end than Stage 1; does not use auto-decompression; uses stock valve springs and rockers.

EXHAUST DURATION	260°
EXHAUST LIFT	9,50 mm
INTAKE DURATION	265°
INTAKE LIFT	9,57 mm
APPLICATION	Exhaust| Intake
TYPE	Stage 2
UNITS	Each
PRODUCT NAME	CamShaft
INTAKE DURATION IMPERIAL	265°
INTAKE LIFT METRIC	9.57 mm
EXHAUST DURATION IMPERIAL	260°
EXHAUST LIFT METRIC	9.50 mm
