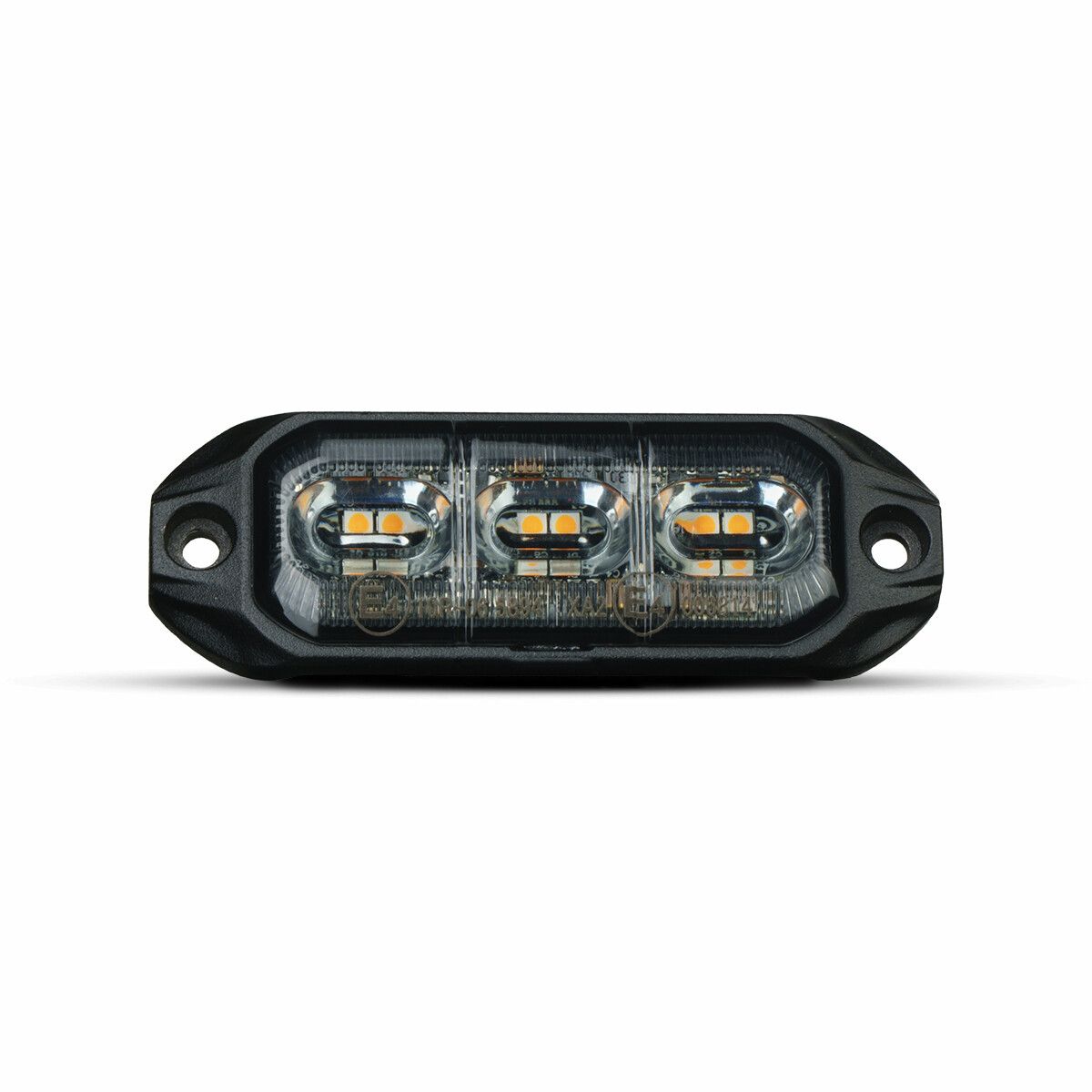

Warning beacon MONSTERLUX Alerta 3 LED, yellow, surface mount

The Monsterlux Alerta 3 is a compact, highly visible yellow LED surface warning light with 9 flash patterns, including ECE R65 and SAE-approved modes. Designed for easy installation and synchronization, it suits work machines, utility, and emergency vehicles, offering durable performance in demanding conditions.

Monsterlux Alerta 3 LED Surface Warning Light / Warning Light – Yellow is a powerful and highly visible warning light for vehicle use. The compact and low-profile design allows for easy installation even in tight spaces on work machines, utility vehicles, emergency vehicles, and for hobby use.

The surface warning light offers 9 different flash patterns for various applications. ECE R65-approved day and night modes, as well as SAE-approved patterns, make the light a versatile option for professional use. Multiple lights can be synchronized with each other, and the light remembers the set program even after a power outage. The durable construction is well suited for continuous use under very demanding conditions.

The light can be programmed to the desired flash pattern before permanent installation, meaning only power and ground wires are needed for operation. Clear wiring simplifies installation and startup.

Technical data
● Product: Monsterlux Alerta 3 LED Surface Warning Light / Warning Light – Yellow
● Light color: Yellow
● LED: 3 LEDs
● Flash patterns: 9
● ECE approval: ECE R65 class 1 and 2
● SAE approval: Yes
● Synchronization: Yes
● Dimensions: 85 × 29 × 11 mm (Width|Height|Depth)
Mounting & Functions
● Red: Positive pole
● Black: Negative pole
● Yellow: Flash pattern switching
● White: Synchronization
Flash patterns
● 1: Single flash, ECE R65 class 2 (day) – 125 FPM
● 2: Single flash, ECE R65 class 1 (night) – 125 FPM
● 3: Single flash, SAE California Title 13 – 75 FPM
● 4: Double flash – 125 FPM
● 5: Series of four flashes – 125 FPM
● 6: Combination: single / three flashes
● 7: Combination: single / five flashes
● 8: Strobe – 600 FPM
● 9: Constant light

Mounting hole distance: 74 mm
