Sprocket ESJOT 42 teeth Hercules Prima G3 Sachs 506/3 49 ccm, 2T 1.6 hp 3-speed manual tra

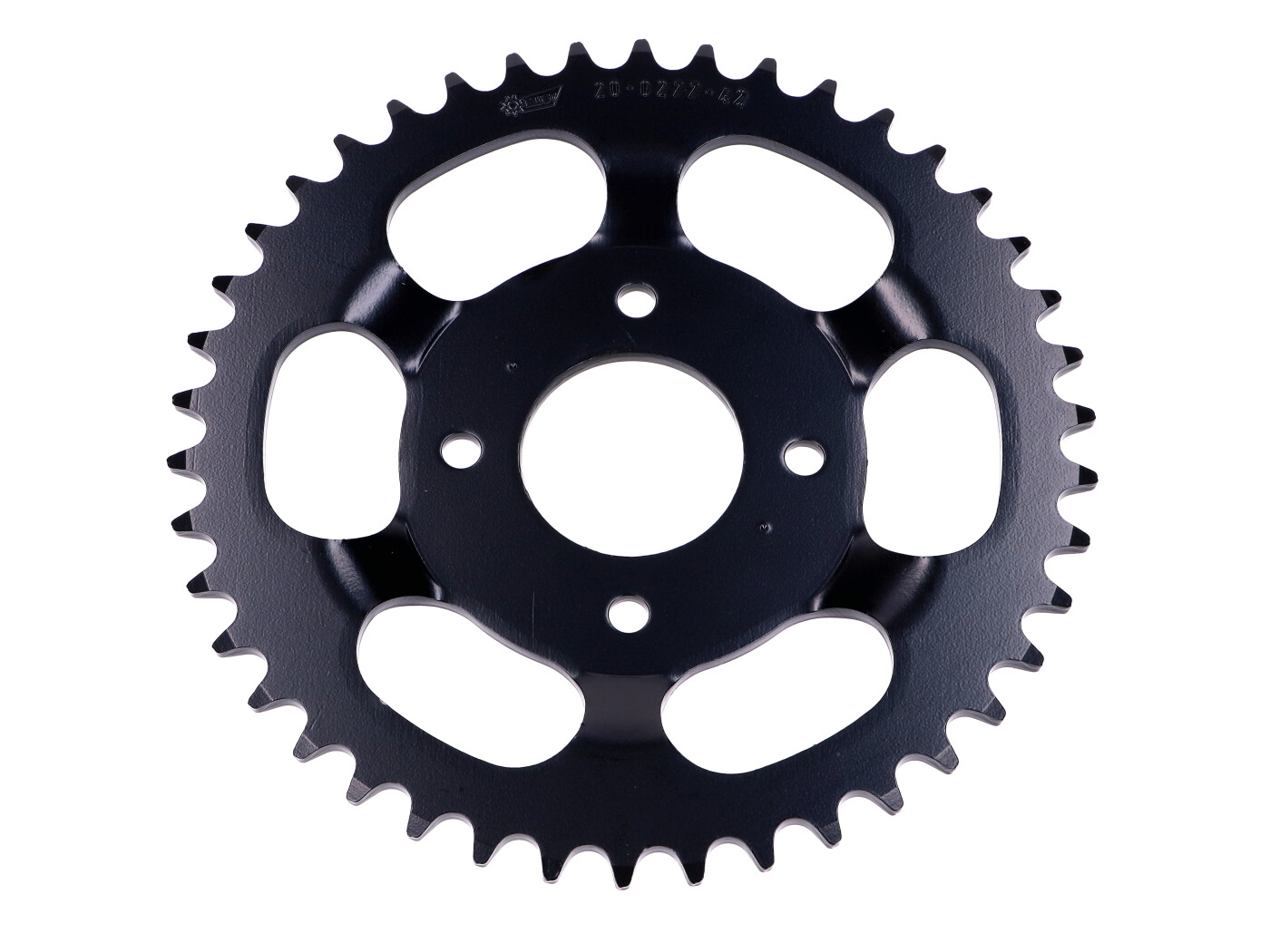

The ESJOT sprocket with 42 teeth is specially manufactured for the Hercules G 3 model. It is made of high-quality steel, crafted from materials Qste 420 or Qste 460, which ensure high strength and durability. The chain pitch is 5/8 x 5/16 (525 pitch), ensuring optimal compatibility with commercially available chains.

The precisely CNC-machined fit of the center hole, as well as countersunk and deburred mounting holes, guarantee easy installation and exact alignment. The special Diamond-Cut toothing ensures excellent running characteristics as well as a round and flat running tolerance of less than 0.2 mm, ensuring vibration-free and efficient power transmission.

Technical data:

• Number of teeth: 42
• Material: Steel (Qste 420 / Qste 460)
• Chain pitch: 5/8 x 5/16 (525)
• Inner diameter approx. 110 mm (depending on model)
• Precisely CNC-machined with deburred mounting holes
• Weight approx. 600 g

Note: Mounting screws are not included in the delivery.
