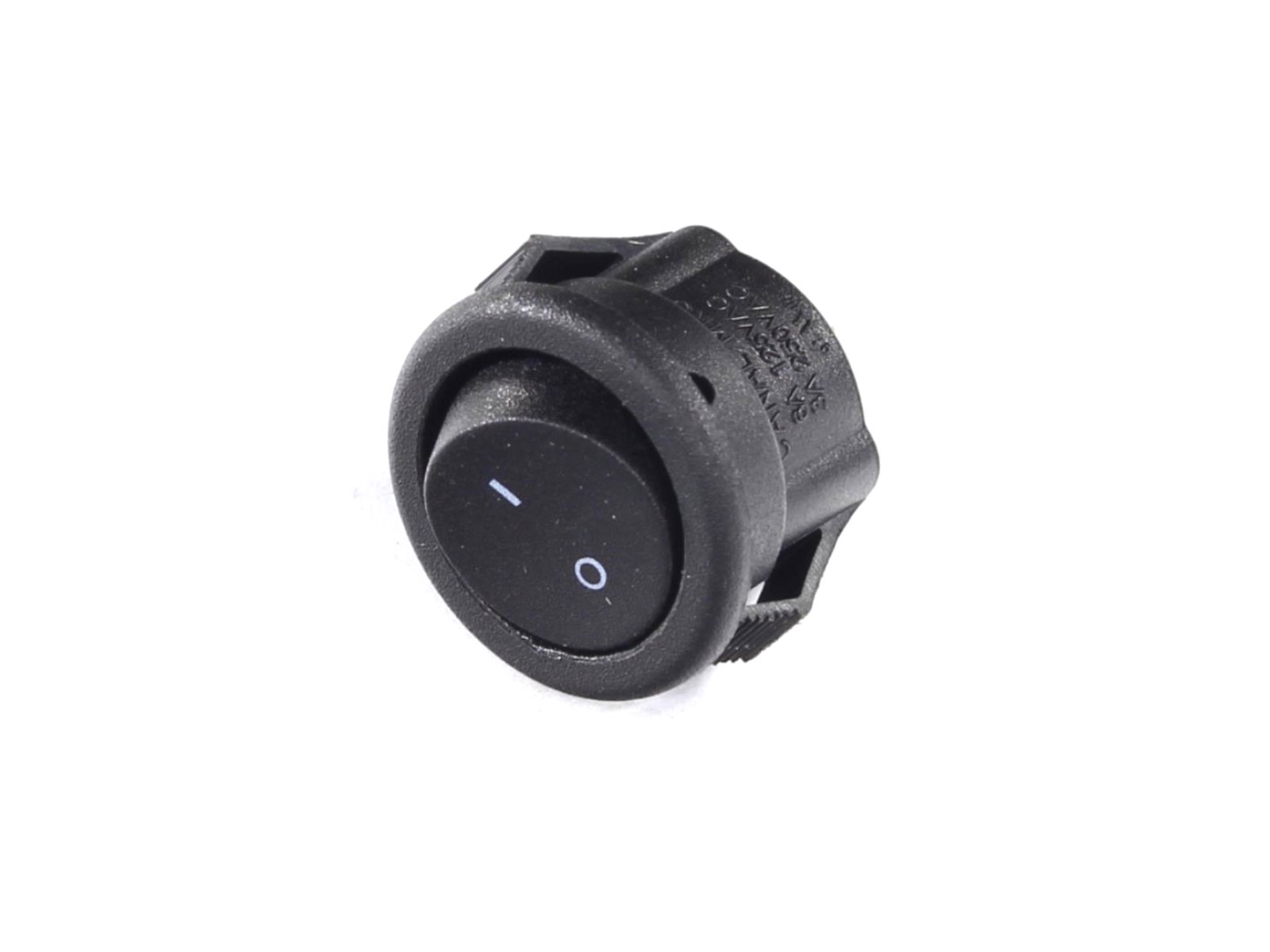

Rocker switch SPST 2P 3A, black, Ø15mm, max 2mm panel, solder terminals

Contact configuration: SPST
2 stable positions
Switching method: OFF-ON
Contact rating AC @R (with resistive load): 3 A / 250 VAC
Key color: black
Illumination: none
Max. contact resistance: 20mΩ
Body color: black
Flammability class: UL94V-2
Terminals: for soldering
Panel thickness: max 2mm
Electrical endurance: 10000cycles
Mounting hole dimensions: Ø15mm
Key markings: I-O
Shape: round
Body material: polyamide
ADDITIONAL INFORMATION:
Other names
rocker switch, ON/OFF switch, on-off switch, SPST switch, single-pole switch, 2-pin 3A switch
Category
Rocker switch
Part codes
ON-OFF ROCKER SPST 2P 3A ROCKER SWITCH, ON-OFF, ROCKER, SPST, 2P, 3A
