SHOCKS 412 SERIES 13.0" B

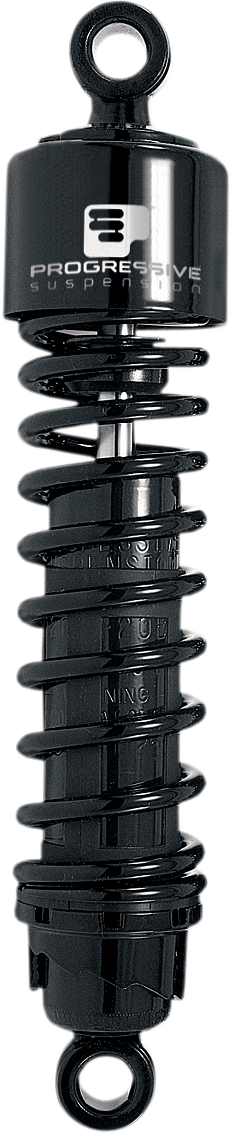

412 Series Shocks

• Designed specifically for Harley models
• The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance
• A five position cam style spring load preload adjuster lets you easily dial in your ride
• Some or all shocks listed have TüV approval. Refer to most recent TüV certificate for current listing
• All shocks are measured center-of-eyelet to center-of-eyelet.
• When installing shocks on 1986-2015 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.
• A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.
• A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.
• Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.
• Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.

Standard for Harley-Davidson FLT/FLHT/FLHR/FLTR 1984-2005. Heavy duty for Harley-Davidson FXR 1987-1994. Heavy duty for Harley-Davidson XL 1986-2003.

COLOR/FINISH	Black
MATERIAL	Steel
MODEL	412 Series without Covers
TYPE	Coilover Monotube
UNITS	Pair
PRODUCT NAME	Shock Absorber
MOUNTING POSITION	Rear
DUTY	Standard/Heavy Duty
DAMPING METHOD	Gas Charged
ADJUSTMENT STYLE	Automatic
EXTENDED LENGTH	330,00 mm (13,00")
SPRING TYPE	Single Progressive Rate
PROGRESSIVE SPRING RATE	1,60 kg/mm - 2,30 kg/mm (90 lb/in - 130 lb/in)
RESERVOIR LOCATION	Internal
