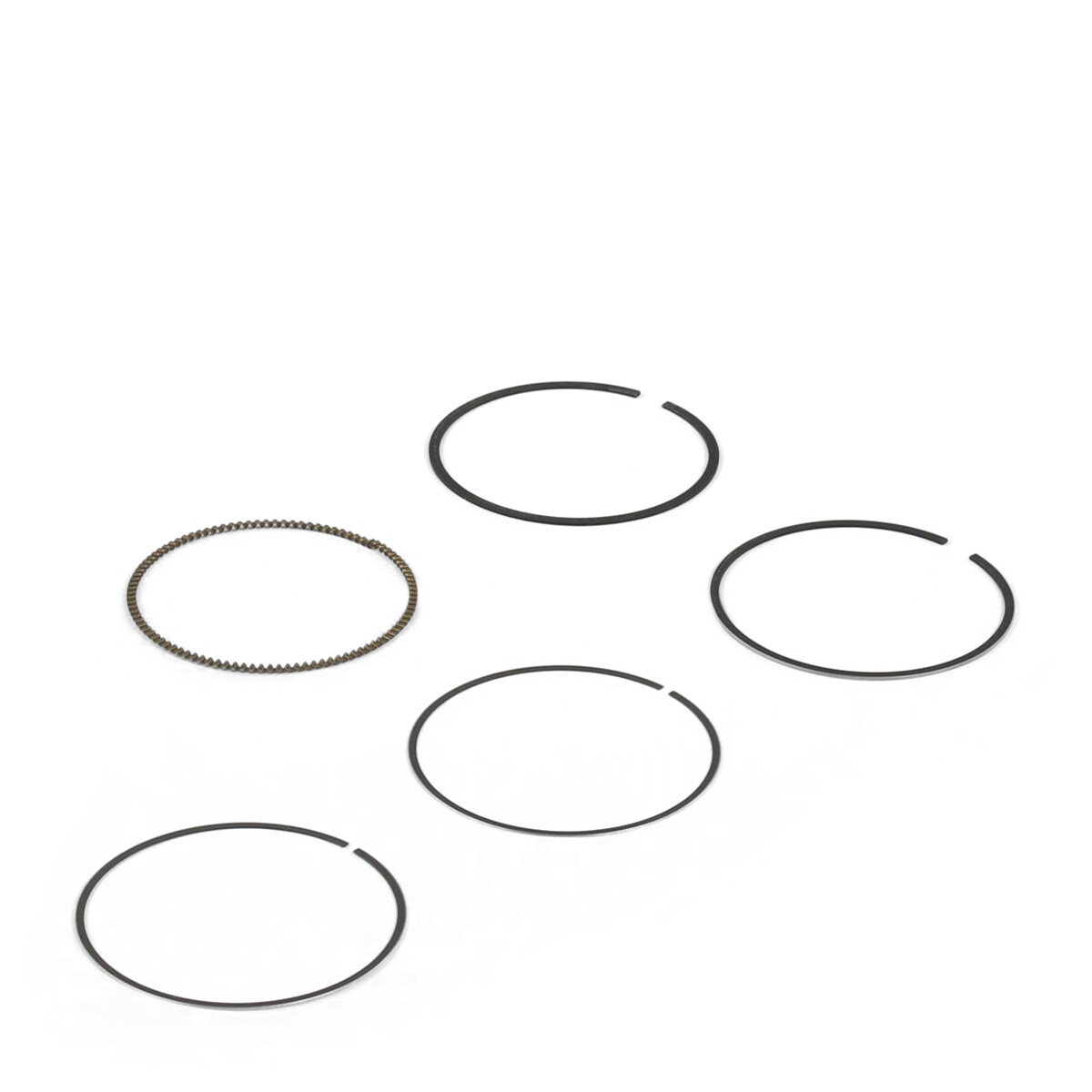

Piston ring set Apollo Motors 150cc / 160cc yx - ø60mm

In stock
SKU
A3861
€13.50

Price includes VAT. VAT is calculated at the delivery country rate in the cart.

Dispatching between 24.11.2026 and 25.11.2026
Inbank Bigbank Esto Esto3 Liisi Svea
Calculate and request instalments
▼
€
Loan amount: –
24 months
3 months 60 months
Monthly payment – €
Product price –
Loan amount –
Total amount –
Interest cost –
Interest rate –
Max loan amount –

The calculator is informative. The final offer depends on the provider's terms and credit decision.

Quick Overview
Les filtres à air VOLT PERFORMANCE sont fabriqués dans la meilleure usine de filtre de Chine. Ces...

Apollo Motors collaborates with one of the world's largest manufacturers of pistons and piston rings, producing a range of high-quality pistons and rings at a very good price!

These piston rings have an optimal shape and a long service life. These parts are very thin and fragile. They are made from a high-quality elastic steel spring, then cut into washers that form the rings. They are generally asymmetrical, so attention must be paid to the installation direction when assembling the engine.
The space between the two ends of the ring when it is inserted into the cylinder is called the ring end gap. Measuring it makes it possible to assess ring wear.

The rings ensure the piston is sealed in the cylinder. The piston rings also help cool the piston crown by transferring heat to the cooled liner. They spread a thin film of oil throughout the cylinder to limit wear. Finally, they prevent oil from rising to the top of the cylinder. The rings' outer diameter at rest is slightly larger than that of the cylinder.

Generally, 3 rings are located at the top of the piston:

  • the top compression ring, which is closest to the combustion chamber, allows combustion to produce maximum thrust on the piston. As its name indicates, it stops hot gases and reduces the temperature of the piston wall beneath it;
  • the sealing ring, also called the compression ring, provides additional sealing against gases that may pass through the top compression ring. It has almost the same appearance as the top compression ring;
  • the oil scraper ring: it scrapes the oil present on the cylinder below the piston to prevent it from being burned. This oil is constantly sprayed onto the cylinder, projecting it onto the piston to cool it.

150cc / 160cc - ø60mm

More Information
Weight 0.130000
Height 0
Width 0
Brand APOLLO
Lenght 0
Supplier reference 3861
Product group China, Pit Bike
Availability In the Tallinn store
Ships in 1-2 business days
