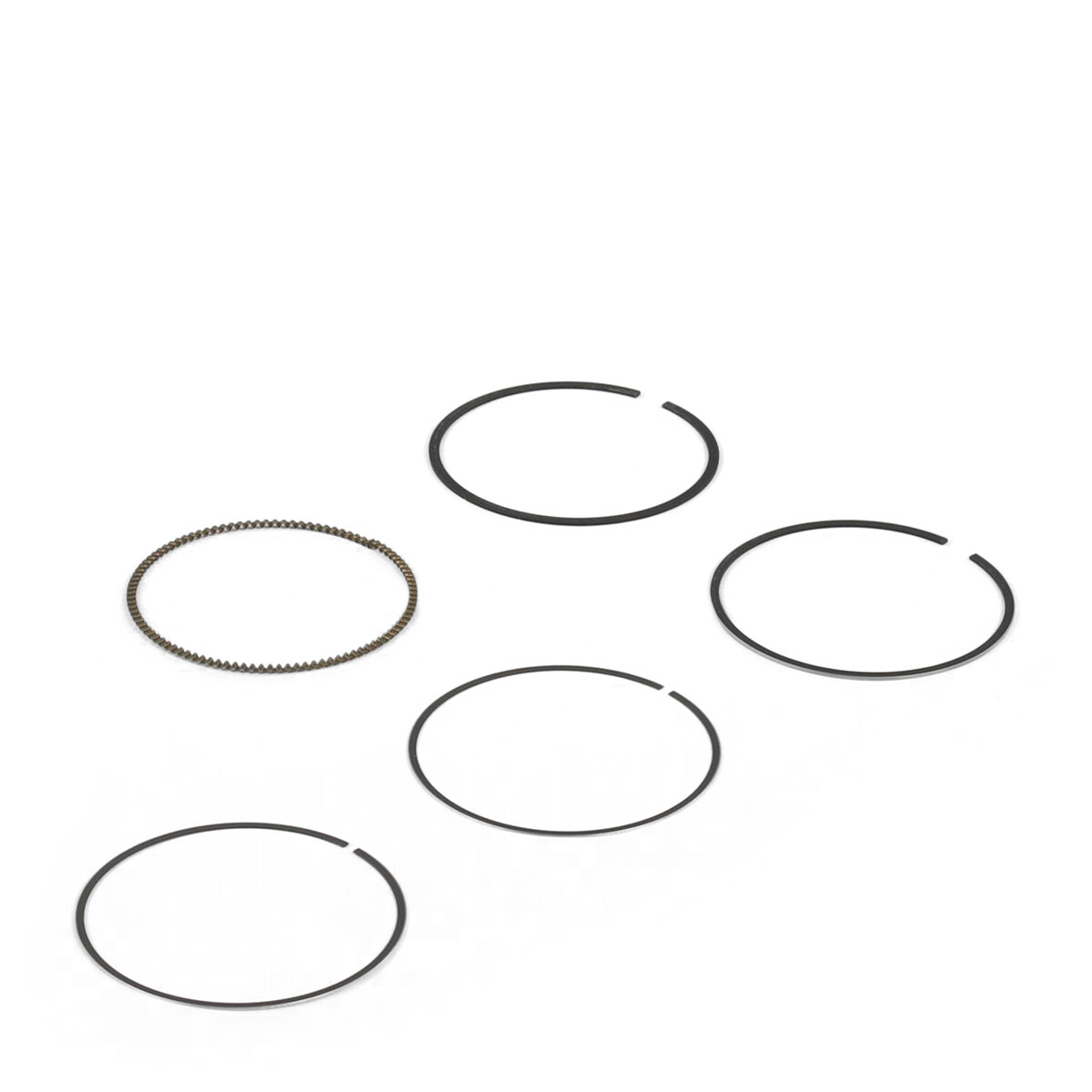

Piston ring set 125cc yx ø52,4mm

In stock
SKU
A2968
€13.50

Price includes VAT. VAT is calculated at the delivery country rate in the cart.

Dispatching between 24.11.2026 and 25.11.2026
Inbank Bigbank Esto Esto3 Liisi Svea
Calculate and request instalments
▼
€
Loan amount: –
24 months
3 months 60 months
Monthly payment – €
Product price –
Loan amount –
Total amount –
Interest cost –
Interest rate –
Max loan amount –

The calculator is informative. The final offer depends on the provider's terms and credit decision.

Quick Overview
Les filtres à air VOLT PERFORMANCE sont fabriqués dans la meilleure usine de filtre de Chine. Ces...

Our company collaborates with one of the world's largest manufacturers of pistons and piston rings, producing a range of high-quality piston rings at an excellent price!

These piston rings have an optimal shape and a long service life. These parts are very thin and fragile. They are made from a high-quality elastic steel spring, then cut into washers that form the rings. They are generally asymmetrical: pay close attention to the installation direction when assembling the engine.
The space between the two ends of the ring when it is inserted into the cylinder is called the ring end gap. Measuring it helps assess ring wear.

The rings seal the piston in the cylinder. The piston rings also help cool the piston crown by transferring heat to the cooled liner. They spread a thin film of oil in the cylinder to limit wear. Finally, they prevent oil from rising to the top of the cylinder. The outside diameter of the rings at rest is slightly larger than that of the cylinder.

Generally, 3 rings are located at the top of the piston:

  • the top compression ring, which is closest to the combustion chamber, allows combustion to provide maximum thrust to the piston. As its name indicates, it stops the hot gases and reduces the temperature of the piston wall beneath it;
  • the sealing ring, also called the compression ring, provides additional sealing for gases that may pass through the top ring. It looks almost the same as the top compression ring;
  • the oil scraper ring: it scrapes the oil present on the cylinder below the piston to prevent it from burning. This oil is continuously sprayed onto the cylinder and piston to cool it.

If it is time to replace the piston rings on your dirt bike, feel free to check out all the rings available on our website: equip your 125cc dirt bike (YX engine) with the best parts on the market!

ø52,4mm

More Information
Weight 0.020000
Height 0
Width 0
Brand APOLLO
Lenght 0
Supplier reference 2968
Product group China, Pit Bike
Availability In the Tallinn store
Ships in 1-2 business days
