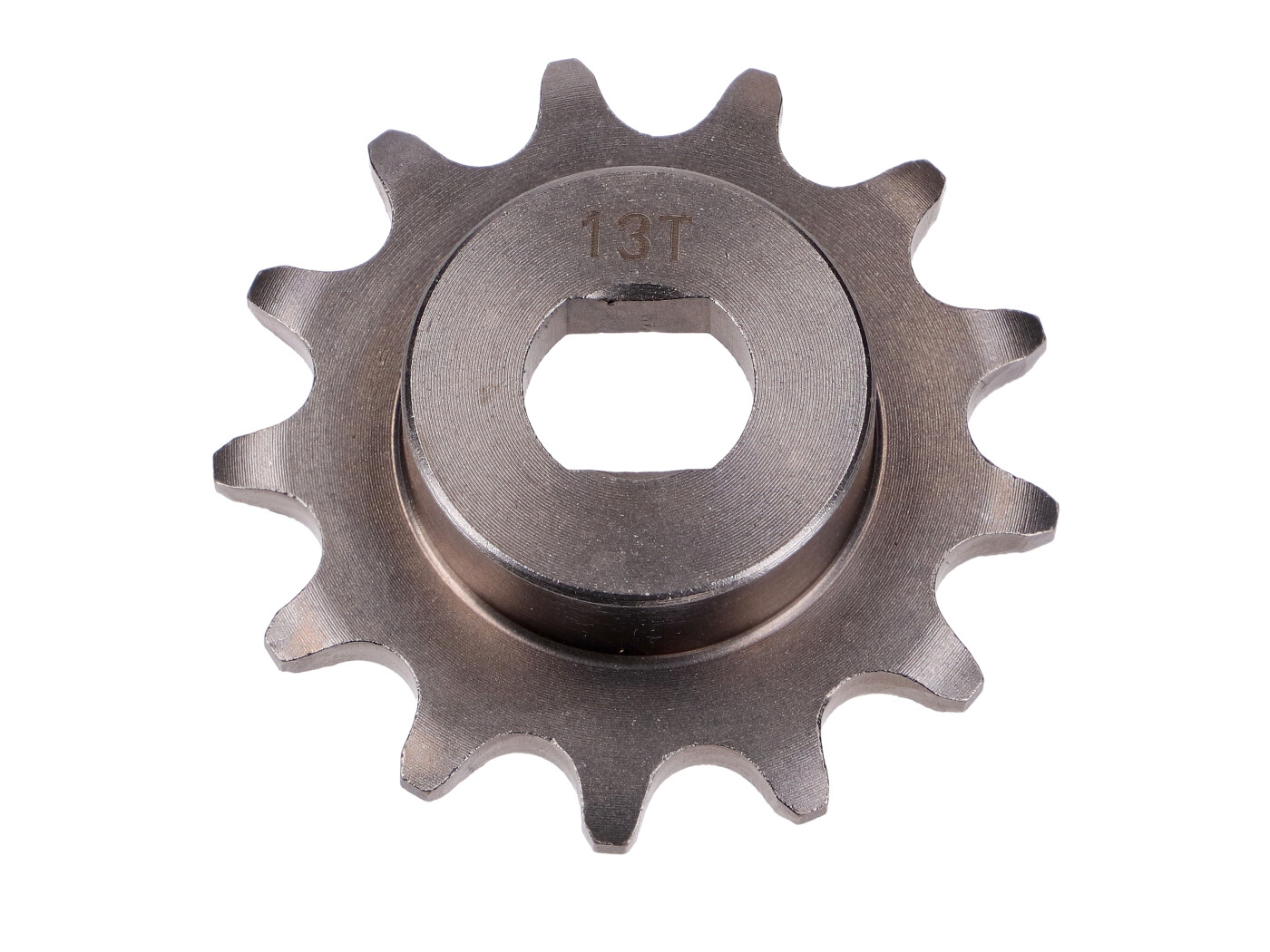

Pinion NTS PARTS 13 teeth Sachs

13-tooth pinion suitable for the following Sachs engines:
100-125cc 3/4-speed
100-125cc 5/6-speed
50/1 MB, MA (X), M (I, NL)
50/2 MA (NL/SF/X) MB, S, DK, C, D (NL)
50/2 MAK (SF), K (S, DK)
50/2 MLA, MLB, MLC
50/3 H
50/3 L (S)
50/3 MA (I, NL, SF, X) MB
50/3 MAKF (SF, X), KF (S), BKF (S)
50/3 MK (X), MAK (SF), MKA (I)
50/3 MLA (X, NL), MLB, LHX
50/3 MLFB, LFH, LFS
50/3 MLKB, MLKA (X), LKH
50/3 NL, C (NL), D
50/3, 50/4
50/4 CF (NL), DF (X)
50/4 EKF
50/4 LF (NL), MLFA (NL)
50/4 MLFB, MLKAX, LKS, LKH
50/A MAL (X), LS, ML (S), MLR (S, X), MLC
50/A MB, MA (SF, I, X) S, DL (X), E (X)
50/A, 50/2
501
502
503
504/1
505/1
505/2
505/3
506
50S
These engines were installed in many Hercules, Miele, KTM, Rixe and Göricke mopeds, as well as mopeds and mokicks. Also suitable for transport moped MCB 1189/1199.
Dimensions:
Teeth: 13
Mounting: 15.5x12mm
Thickness: 14,5mm
OEM no. for comparison purposes: 0236 094 200
