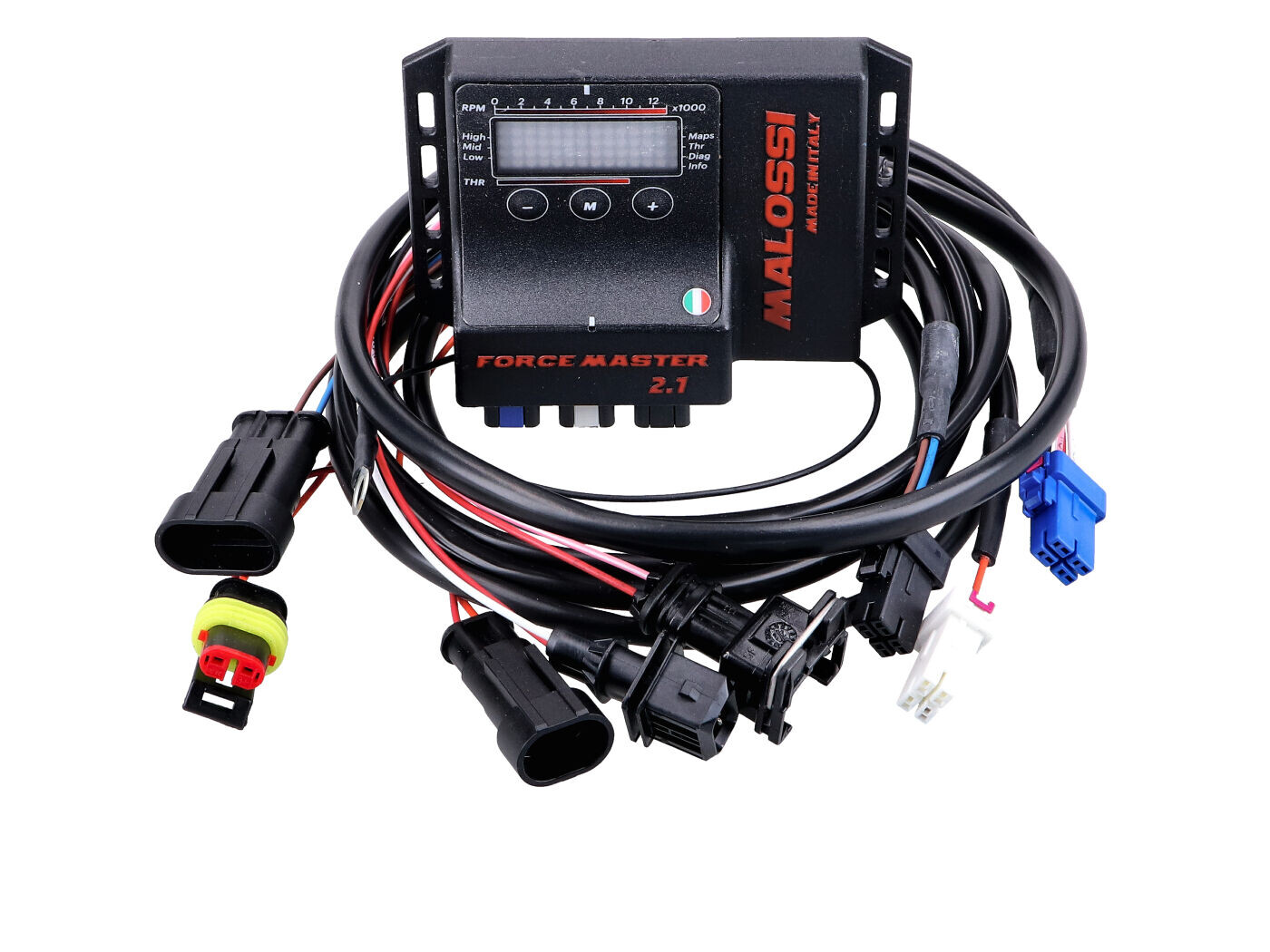

Injection module MALOSSI Force Master 2.1 for Piaggio 125ie 4T 4V Euro3

Malossi Force Master 2.1 injection module suitable for maxi scooters with 125cc Piaggio 4-stroke injection engine with 4-valve technology and Euro3 standard such as Aprilia SR Max 125ie, Gilera Nexus 125ie, Piaggio Beverly 125ie, MP3 Yourban 125ie, X7 Evo 125ie and Vespa GTS Super 125ie.
The Force Master 2.1 control unit has a completely new look and is much easier to configure. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, the Force Master 2.1 is the ideal addition to the vehicle's power management: without functional restrictions, it allows the engine to be revved beyond the limit of the original rev limiter.
Injection rate: ± 14% LOW / HIGH / MEDIUM
Speed limiter: +1,100 RPM
Temperature range = -30°C +80°C
Minimum operating voltage: +7V
Maximum operating voltage: +16V
Average current consumption: Protection class: IP65
4 different characteristic curves:
Curve 0: Original exhaust system, Malossi cylinder, original head, original camshaft, original filter
Curve 1: Original exhaust system, Malossi cylinder, original head, Malossi camshaft, original filter
Curve 2: Original exhaust system, Malossi cylinder, Malossi head, Malossi camshaft, original filter
Curve 3: Malossi with DB-Killer exhaust system, Malossi cylinder, Malossi head, Malossi camshaft, original filter
