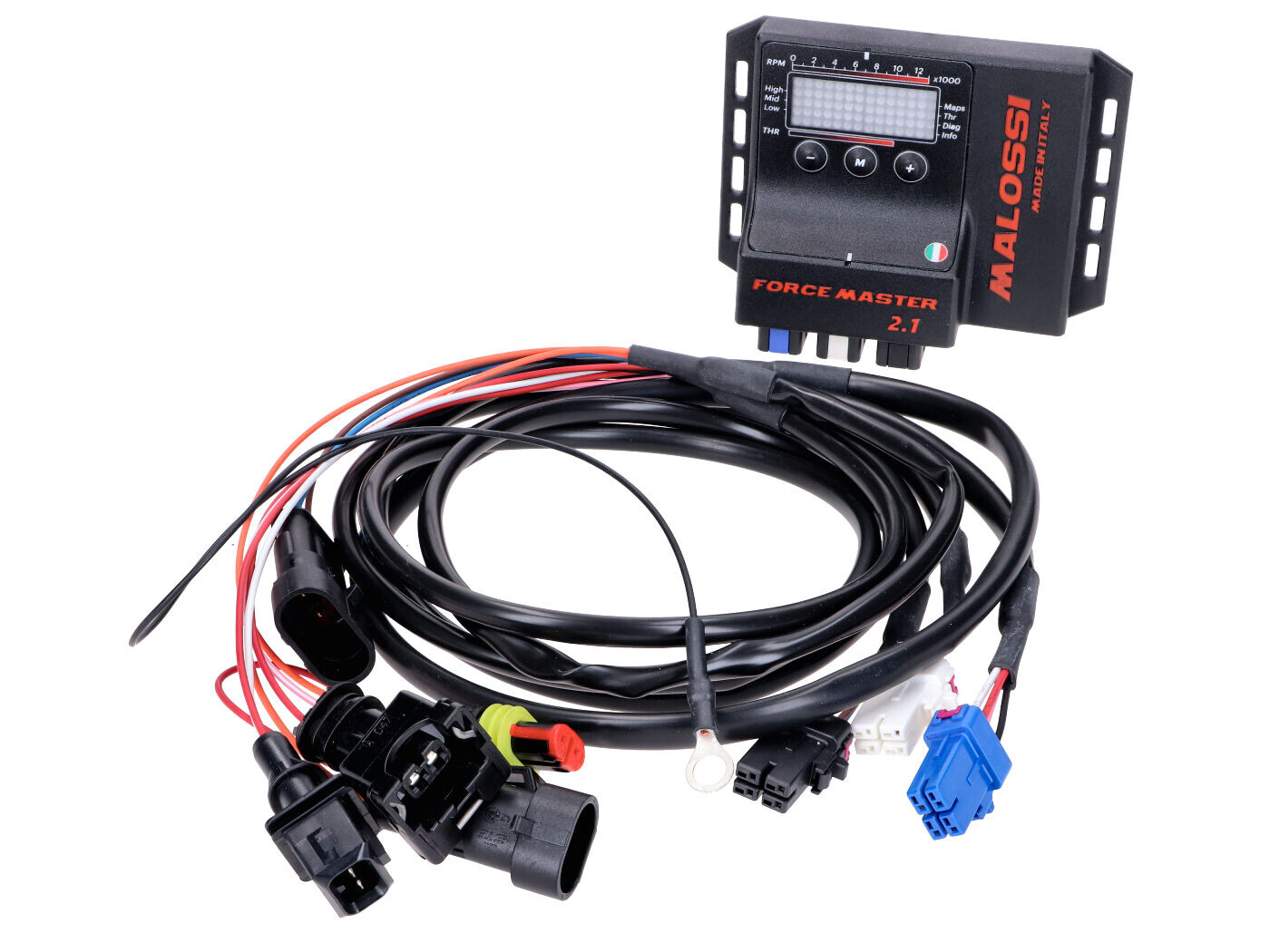

Injection module MALOSSI Force Master 2.1 for Aprilia RS4 125ie, RX125ie

Malossi Force Master 2.1 injection module suitable for Aprilia RS4, RS, RS GP Replica, RX and SX 125cc models with fuel injection. Also suitable for Derbi Senda DRD 4V R - SM 125 ie 4T LC Euro3 and Aprilia Tuono 125 ie 4T LC Euro4 2019-20.

The Force Master 2.1 control unit has a completely new look and is much easier to configure. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, the Force Master 2.1 is the ideal complement for the vehicle's power management: without functional limitations, it allows the engine to be revved beyond the limit of the original rev limiter.
Technical details:

• Injection quantity: ± 14% LOW / HIGH / MID
• Speed limiter: +1000 RPM
• Temperature range: -30°C +80°C
• Minimum operating voltage: +7V
• Maximum operating voltage: +16V
• Average current consumption:
• Protection class: IP65

4 different maps:

• Curve 0 : Malossi with DB-killer exhaust system, original cylinder, original head, original camshaft, original filter
• Curve 1 : Original exhaust system, Malossi cylinder, original head, original camshaft, original filter
• Curve 2 : Malossi with DB-killer exhaust system, Malossi cylinder, original head, original camshaft, original filter
• Curve 3 : Malossi with DB-Killer exhaust system, Malossi cylinder, original head, original camshaft, Malossi filter

injection module Malossi Force Master 2.1 for Aprilia RS4 125ie, RX125ie
