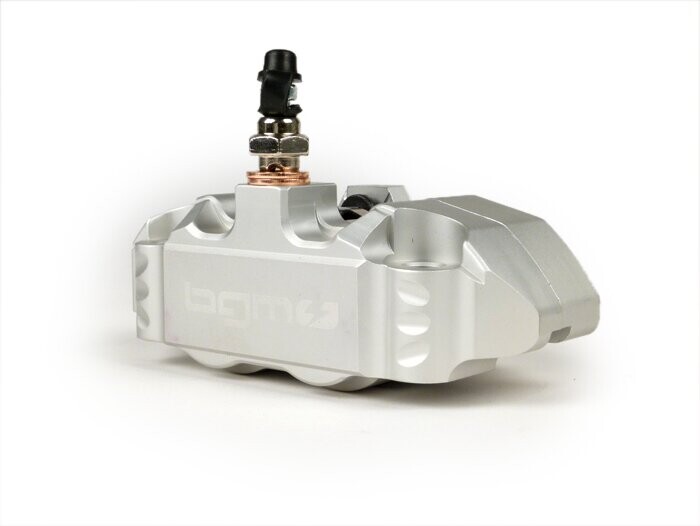

front brake caliper BGM PRO 4-piston, radial mount, adapter needed, silver

With 4x25mm pistons, the caliper has 40% more piston area than a conventional two-piston caliper with 30mm pistons. The hydraulic transmission ratio is greatly improved and the braking force (with the same leverage) is increased. Another advantage of the 4 piston technology is the symmetrical load on the pads, which means that they are always in full contact. A pad change is done by a stud quickly and easily. A big advantage in racing. Central connection of the brake line.

Suitable for the BGM brake caliper mount for PX, PK, T5 and Cosa

• Piston diameter: 4x 25mm
• Mounting type: Radial
• Hole diameter: 82mm
• Mounting holes: Ø 8mm
• Brake banjo connection: M10x1,25mm
• Bleeder nipple integrated in brake banjo screw
• Can be driven with original brake pump
• Recommended brake pump piston diameter:
• Std. pump: 12-13mm
• Radial pump: 10-11mm
