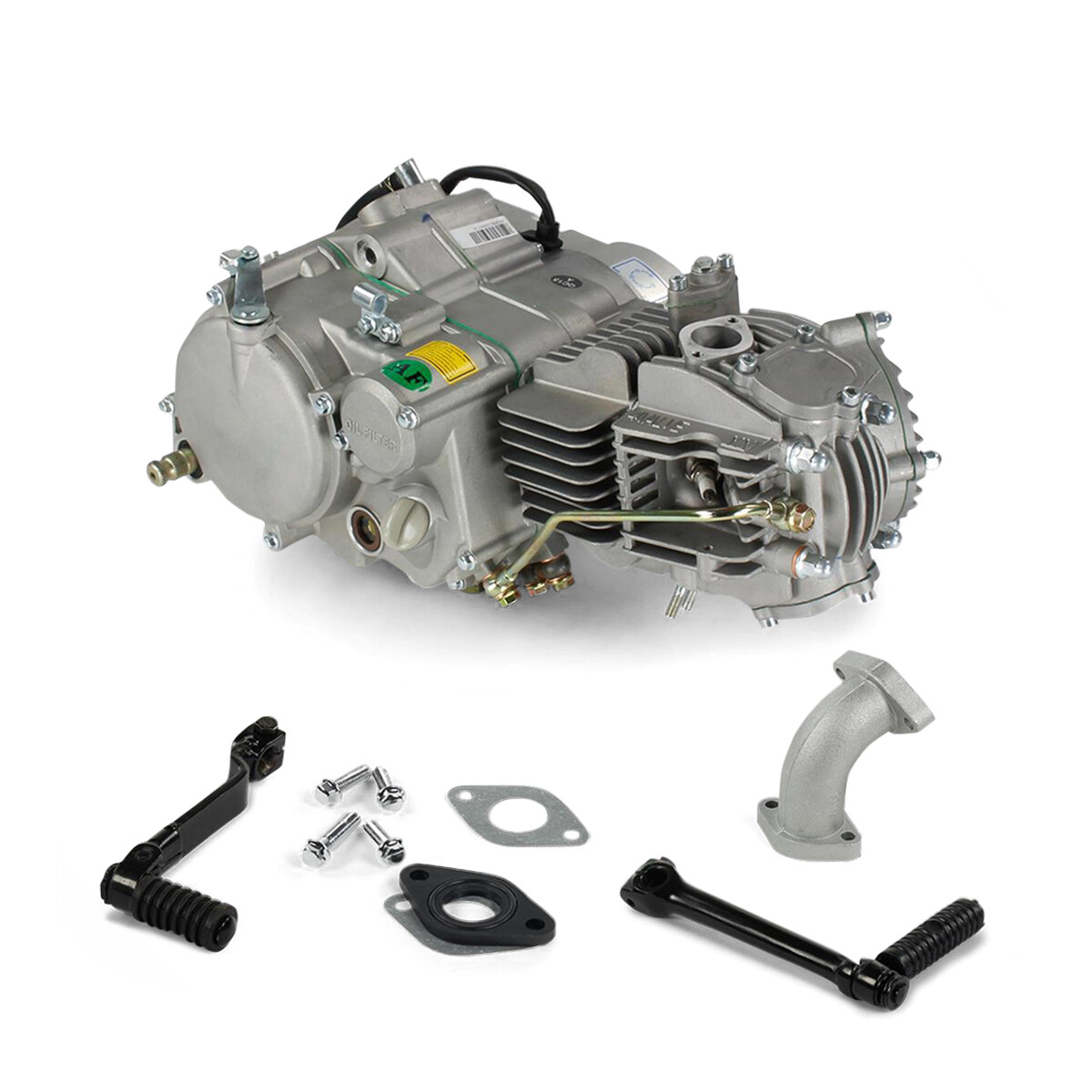

Engine YX 150cc V3 KLX type

The YX 150cc 2-valve engine equipped with its KLX-type cylinder head is the most widely used engine in racing! Looking for power? You will get it!

Major difference compared with the 149cc YX engine: the 150cc has a KLX cylinder head instead of a CRF cylinder head, reinforced engine cases, a piston with a larger bore (60mm instead of 56mm on a 149cc YX), and much larger valves. The engine delivers tremendous power at low RPM.

You can also upgrade this engine to 4 valves by optionally using the YX 4S cylinder head. Our team recommends using Racing parts if you want to upgrade your engine for competition. It produces 15 HP as standard, without preparation! You can add parts such as a Volt exhaust or a Mikuni VM24 carburetor to gain even more horsepower.

For the most experienced Dirt Bike builders, please do not hesitate to contact us by phone. Our team of Dirt Bike / Pit Bike professionals will check your carburetor adjustment, valve timing and camshaft timing after your engine has been installed.

ENGINE SPECIFICATIONS
Engine type: YX single-cylinder 4-stroke
Displacement: 150
Bore x stroke: 60mm x 53mm
Oil capacity: 950mL
Cooling: Oil radiator
Clutch: Wet clutch
Ignition: CDI electronic unit
Starting: Kick-start
Transmission: 4 gears (Neutral down, 1/2/3/4 up)
Maximum power: 10 kW at 9500 rpm, equivalent to 15 HP
Maximum torque: 11.2 N.m at 7500 rpm
DIMENSIONS
Weight: 24Kg
