Engine 101 OCTANE 152QMI GY6 125cc short, rear drum brake, 743mm drive belt

Exclusive dealer product. This item can only be purchased from one of our official dealerships.
You can find a retailer near you here: Dealer Locator

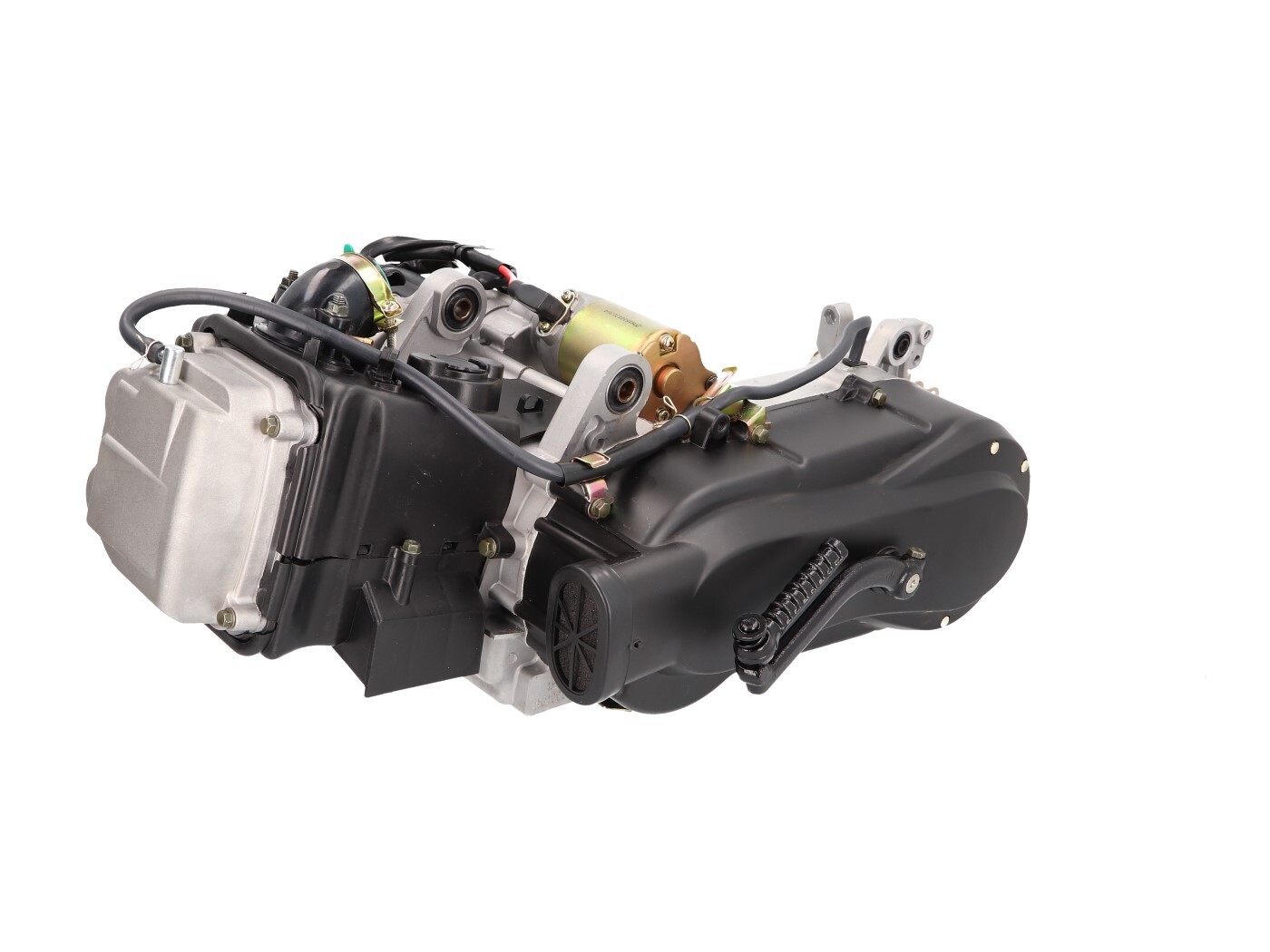

Complete replacement engine for 125cc GY6 4-stroke 152QMI engines with a long block and rear disc brake. Long block models take an 743mm v-belt. The engine length can be determined by the distance from the crank (variator) to the gearbox input shaft (clutch bell). This distance is approx. 23cm on the replacement engine. This replacement engine is complete with all the drive parts, alternator, starter motor etc. There can be differences in the gearbox output shaft (the shaft that the rear wheel mounts to). A short shaft is used on vehicles with a rear shock, the longer shaft with vehicles with 2 rear shocks. This motor is fitted with a long gearbox output shaft. If the shorter version is required, it can easily be removed from the original engine. IMPORTANT!
IMPORTANT: check engine and gearbox oil levels after installation. Owing to the quality of oil used by Chinese manufacturers, we recommend changing the oil after a 50km run-in period. Valve play should be carefully monitored. Both valves should be set within 0.08mm. All in all, this engine offers a low-cost alternative to time-consuming and expensive repairs.

short version for rear drum brake, 743mm drive belt
