MODULE SECONDARY FUEL TRI

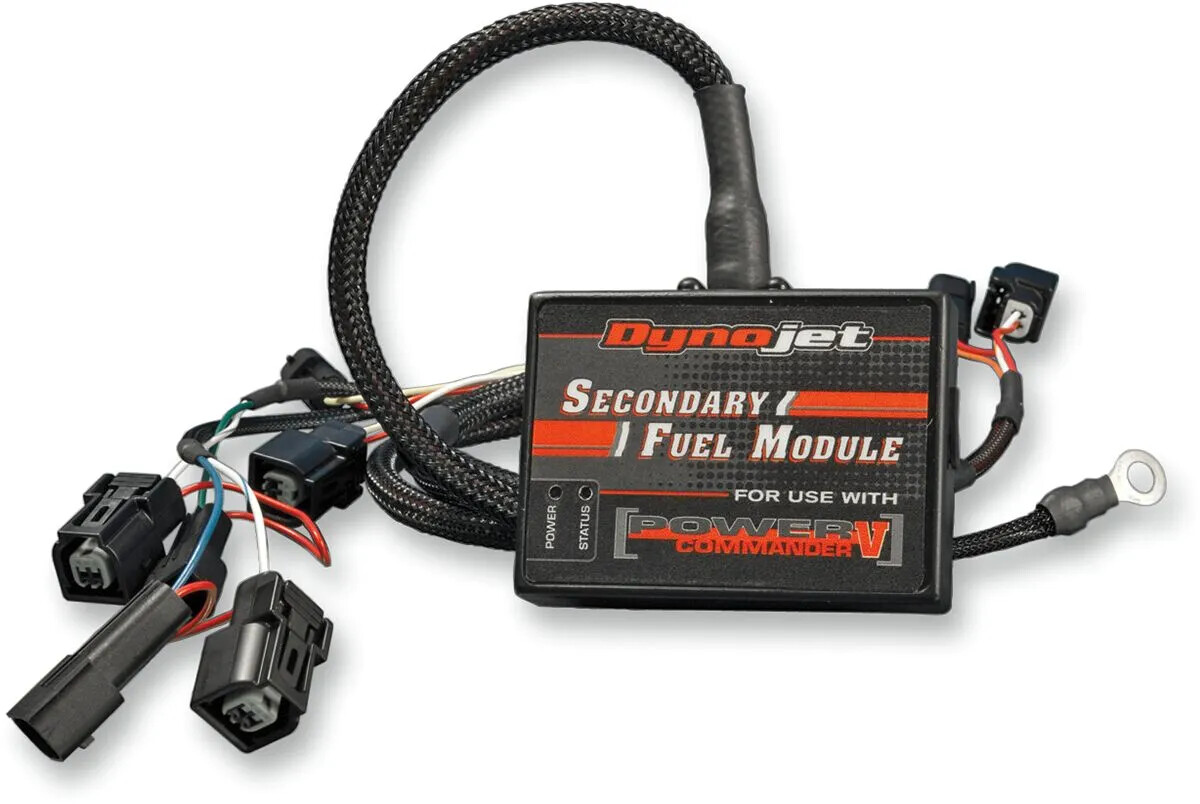

Secondary Fuel Module

• The "basic" mode is the perfect setting for modified engines that require more fuel than four-injectors can provide, but do not need the complexity of mapping each cylinder and each gear separately
• The "basic" mode allows you to have a single fuel table that simply puts the requested fuel change in both upper and lower injector modules at the same time
• Allows for the use of the Dynojet Quick Shifter sensor on eight-injector bikes which provides added fuel control and shifter functionality
• If gear position input is connected to your PCV, you can adjust all of the injectors on a "per gear" basis
• You can also map each injector separately, giving you up to 48 complete maps
• Adjusts both upper and lower injectors by as much as +250/-100%
• Connects to the upper injector rail using OEM connectors
• Allows for the adjustment of all eight-injectors
• Single cable connection to the PCV
