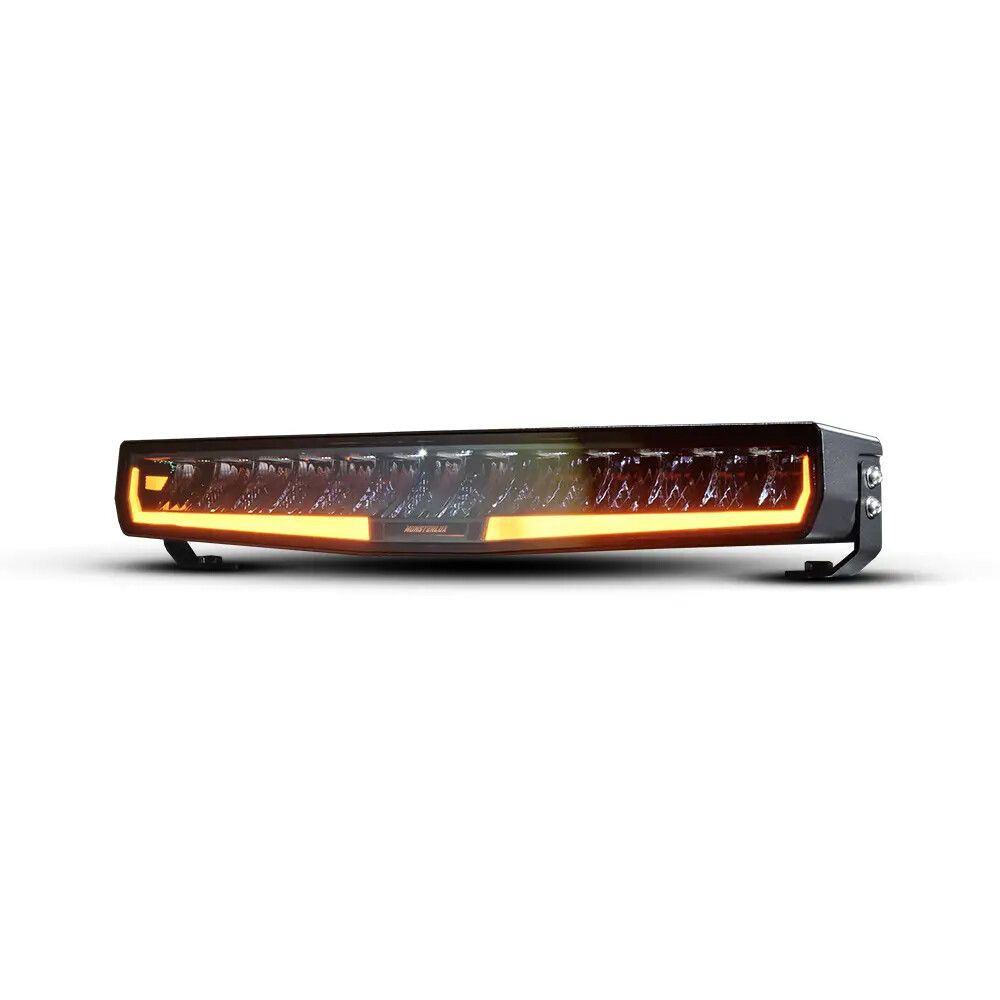

Driving Light MONSTERLUX Dark Digger 20 180w / 16800lm

Monsterlux Dark Digger 20 is a powerful LED driving light featuring dual light modes: the road-legal e-Safe mode and the high-performance Monster Mode™ for off-road use. It offers a wide, controlled light pattern with 16800 lumens in Monster Mode and 2800 lumens in e-Safe mode, ensuring excellent visibility and safety in various driving conditions. Its curved design includes horn-shaped parking lights and is IP68 rated for durability.

Monsterlux Dark Digger 20 is a new-generation LED auxiliary light panel that combines a controlled light pattern, long and wide range, and modern design. The Vision Select optics offer two different light modes: the road-traffic-approved e-Safe mode and the very powerful Monster Mode™ off-road mode for demanding conditions.

The panel optics provide a wide and comfortable light pattern that effectively illuminates even road edges and side areas. The e-Safe mode uses separate optics to reduce glare and allows longer use of high beams during oncoming traffic. Monster Mode™ unleashes the lamp's full performance for off-road and single-lane roads when maximum range and brightness are required. The curved design and stylish horn-shaped parking lights complete the lamp's appearance. The e-Safe cut light pattern works excellently even in snowfall and foggy driving conditions. To get the most out of the light and ensure easy installation, we recommend using the ready-made Monsterlux wiring harness with power relay for one lamp. With the wiring harness, you can easily switch brightness and light pattern with the push of a button depending on driving situation and weather conditions. The wiring harness is available under article number 3555-811101.

The smooth surface of the chassis repels dirt, snow, and ice, making cleaning easier in Nordic conditions. The wide operating voltage range, clear connections, and multiple mounting options make installation easy on passenger cars, commercial vehicles, and work machines.

Technical data
- Article number: 3555-201101
- Brand and model: Monsterlux Dark Digger 20
- Lumens: 2800 lm (measured in e-Safe) / 16800 lm (measured in Monster Mode)
- Range at 1 Lux: 260 m (e-Safe) / 630 m (Monster Mode)
- Color temperature: 5000 K
- Current consumption at 13.7 V: 1.8 A (e-Safe) / 13.1 A (Monster Mode)
- Operating voltage: 9-32 V
- Power: 25 W (e-Safe) / 180 W (Monster Mode)
- Reference number: 25 (e-Safe mode)
- Parking lights: Yes – horn-shaped parking lights (white and orange)
- Approved for road traffic: Yes, in e-Safe mode (Monster Mode – not for road traffic)
- Approvals: R10, R149
- IP rating: IP68
- Connector type: 4-pin Deutsch DTP
- Connector pair: Yes
- Cable length: 50 cm
- Shape: Curved panel
- Dimensions: 508 × 60-71 × 73 mm (Width|Height|Depth) (Height with foot 80 mm)
- Weight: 2.7 kg
- LED: 14 x 15W LEDs
- Brightness control (boost): Yes, Monster Mode™ (off-road)
- Mounting: End feet and adjustable sliding feet under the panel
- Warranty: 24 months
