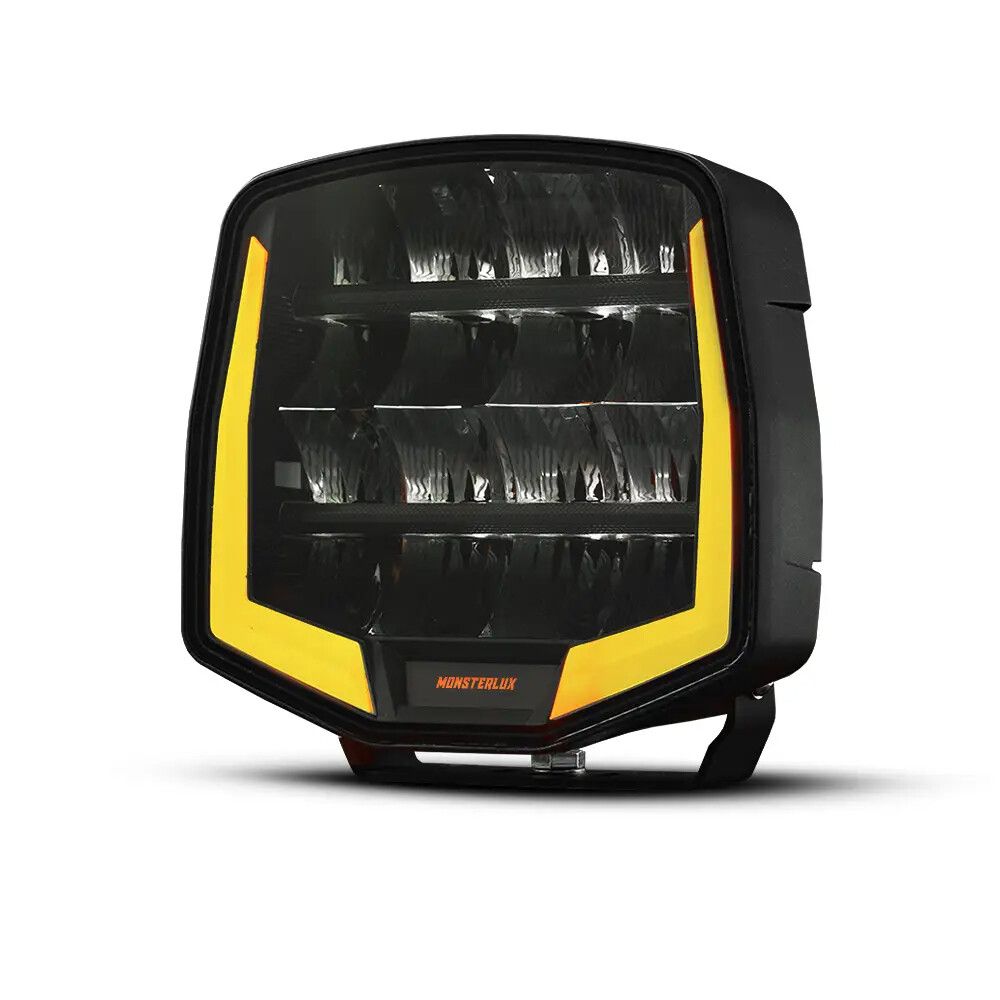

driving light MONSTERLUX Dark Digger 10 199w / 16800lm

The Monsterlux Dark Digger 10 is a powerful 199W LED driving light offering 16,800 lumens with dual modes: e-Safe for road use and Monster Mode™ for off-road. It features Vision Select optics for long-range and wide light distribution, white and orange position lights, and an IP68-rated durable housing. Easy to install with a wide voltage range and lower mounting foot, it enhances visibility in various driving conditions.

Monsterlux Dark Digger 10 is a next-generation LED auxiliary light that combines long range, wide light distribution, and an impressive design. The Vision Select optics offer two optimized modes for different uses: the e-Safe mode, approved for road traffic, and the very powerful Monster Mode™ off-road mode.

DD10 delivers a powerful and balanced light pattern that improves visibility both far ahead and along the road edges. The e-Safe mode uses separate optics to reduce glare and allows longer use of high beams when facing oncoming traffic. Monster Mode™ unleashes the lamp’s full performance for off-road and private roads when maximum range and brightness are needed. The e-Safe cut-off light pattern works excellently even in snowfall and foggy driving conditions. To get the most out of the light and ensure easy installation, we recommend using the ready-made Monsterlux wiring harness with power relays for up to three lamps. With the harness, you can easily switch between power modes and light patterns with the push of a button depending on driving situations and weather conditions. The harness is available under article number 3555-811103.

The smooth housing reduces dirt buildup and facilitates cleaning in demanding conditions. White or orange position lights and a startup animation sequence complete the modern look. The wide operating voltage range and the lower mounting foot make installation easy on many vehicles.

Technical data:

Article number: 3555-901101
Brand and model: Monsterlux Dark Digger 10
Lumen: 5600 lm (e-Safe measured) / 16800 lm (Monster Mode measured)
Range at 1 Lux: 340 m (e-Safe measured) / 680 m (Monster Mode measured)
Color temperature: 5000 K
Current consumption at 13.7V: 3.68 Amp (e-Safe measured) / 14.5 Amp (Monster Mode measured)
Operating voltage: 9-32 V
Power: 50.4 W (e-Safe measured) / 199 W (Monster Mode measured)
Reference number: 25 (e-Safe mode)
Position lights: Yes – horn position lights (white and orange)
Approved for road traffic: Yes, in e-Safe mode (Monster Mode – not for road traffic)
Approvals: R10, R149
IP rating: IP68
Connector type: 4-pin Deutsch DTP
Connector counterpart: Yes
Cable length: 50 cm
Shape: "round"
Dimensions: 221 × 208 × 83 mm (with foot 123 mm) (Width|Height|Depth) ((Height with foot 218 mm))
Weight: 2.7 kg
LEDs: 16 x 15W LEDs
Light control (boost): Yes, Monster Mode™ (off-road)
Mounting: Lower foot
Warranty: 24 months
