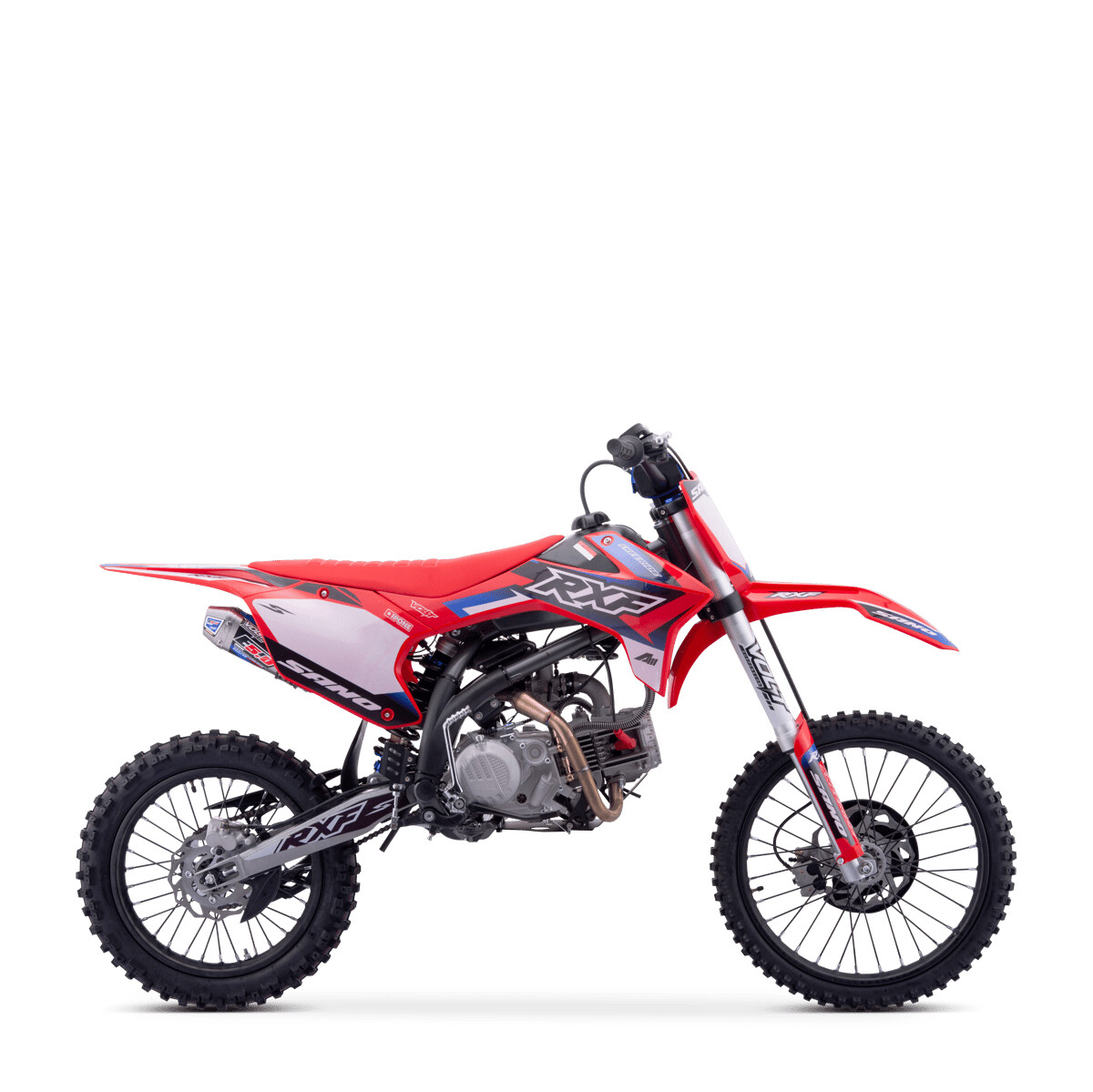

Dirt bike Apollo Sano RXF Freeride 190-L

The Apollo Sano RXF Freeride 190 L is the largest model in the Freeride range.

The Freeride is equipped with an electric starter, making it very easy to start. Apollo Motors is currently one of the only brands to offer large 16/19 wheels as standard, powered by the torque monster, the Zongshen 190cc engine.

This motorcycle is therefore the tallest in its range and provides greater comfort and maneuverability. The RXF Freeride 190 is powered by a Zongshen 190cc two-valve engine delivering 16.8 hp. The RXF also features an electric starter, allowing you to start the engine effortlessly and providing excellent assistance in the most extreme conditions.

These features allow children and adults to enjoy the full power of the engine with a chassis that is pleasant to ride and capable of handling all types of terrain, including enduro and motocross.

Five years of development at Apollo Motors headquarters were required to create and develop the new RXF concept. Apollo Motors engineers worked hard to produce a very well-equipped motorcycle that meets your expectations, including improvements to this latest model in the range:

• New triple clamps
• New exhaust with visible welds and powerbomb, improving low-rpm torque
• New graphics for a more racing-inspired look

The RXF Freeride gets a complete makeover.

The plastic kit for the RXF Freeride models was developed in France at Apollo Motors’ offices in close collaboration with their factory riders: an ultra-thin beam line, maximum freedom of movement, and no compromise in component placement. Everything fits perfectly. The intelligent design of the new plastic kit is apparent as soon as you sit on the motorcycle. After the first few laps, you realize the true impact of all these differences.

The new airbox fits the entire RXF range. Its special feature is the removable drawer, allowing the air filter to be changed in less than 30 seconds.

This RXF has been redesigned in both dimensions and appearance to offer motorcycles close to those used in motocross championships. This new RXF will meet your expectations.

The entire RXF range is supplied with a maintenance manual so you can enjoy your motorcycle for as long as possible.

The Apollo RXF Freeride 190-L is an ideal minicross motorcycle for off-road and all-terrain riding.

Be careful when starting the engine. First, press gradually with your foot to pass the compression point. Do not press suddenly, as this may break the kick-start shaft.

When using the electric starter, we recommend not accelerating at the same time, as this may cause kickback that will be transmitted to the starter chain and eventually break it.

If the engine is cold or difficult to start, operate the choke on the carburetor. If this is not sufficient, tighten the idle screw by a quarter turn.

When you are ready to ride, remove the choke and loosen the idle screw by a quarter turn.

This engine is intended exclusively for competition and professional use. No warranty applies in the event of damage resulting from its installation or use.

This includes crankcase cracks, internal breakage, or malfunction with the other components installed on your vehicle. This purchase must therefore be made with full awareness of these conditions.

ENGINE
Engine type: Single-cylinder 4-stroke - Zongshen 190
Engine: 4-stroke
Final drive type: Chain
Displacement: 190
Bore/bore and stroke: 62mm x 62mm
Oil capacity: 900mL
Cooling: Air + oil radiator
Carburetor: PE 28 carburetor
Clutch: Manual clutch, start in gear
Ignition: Microprocessor CDI ignition
Starting: Kick + electric starter
Final drive: Reinforced 428 KMC chain
Transmission: 5-speed (1-N-2-3-4-5)
Gearing: 43-tooth sprocket, 14-tooth pinion
Maximum power: 12.35 kW at 9500 rpm (16.8hp)
Maximum torque: 11.2 N.m at 7500 rpm
Fuel: SP 98 gasoline
Maximum speed (km): 90

CHASSIS
Front suspension: Volt Suspension V-ONE 830mm
Front travel: 210mm
Triple clamps: Forged aluminum 48mm/51mm
Rear suspension: Volt Suspension V-FORCE 350mm rebound adjustable
Swingarm: Steel mounted on needle bearings
Front brake: Double-piston caliper disc brake - 220mm disc
Rear brake: Single-piston caliper disc brake - 190mm disc
Front wheel: Steel rim 19 inches;70/100-19
Rear wheel: Steel rim 16 inches 90/100-16
Exhaust: VOLT PERFORMANCE STAINLESS STEEL RACING + POWER BOMB
Seat: Removable from underneath
Tank: 6.5L
Handlebar: 28.6mm steel Fatbar
Grips: Apollo
Frame: Central tubular chassis made of profiled tubes

DIMENSIONS
Carton size: 1660 x 380 x 850 mm
Vehicle dimensions (L x W x H): 188*83*118 cm
Seat height: 910mm
Wheelbase: 1300mm ±10 mm
Ground clearance: 360mm
Weight: 91 Kg
Maximum load: 120
