Cylinder kit SCHMITT 50cc/38mm 44mm stroke, Mokick Sachs 504, 505

Schmitt 38 mm cylinder kit, 50cc Mokick version with 44 mm stroke, suitable for Mokick motorcycles and mopeds with Sachs 504, 505 engines, such as Hercules Prima, M, Sachs 504/505, KTM Pony and Hobby.
OEM no. for comparison purposes: 0213 146 376
Cylinder designed from scratch in original look. Not a copy of the copy. Schmitt has clearly defined the focus here: familiar quality, modern production and the old look.
100% true-to-original timing as well as channel and combustion chamber geometry. The engine performance corresponds to the original part. The cylinder is manufactured using the die-casting process and therefore has a great surface finish. Thanks to the precisely manufactured 3 mm gray cast iron liner, the cylinder is durable, can be overhauled several times and has a very long product life. Original splash-proof deco connection with O-ring seal.
The piston is manufactured with the original profile contour from an aluminum alloy with 18% silicon content. The maximum mileage and very good emergency running properties are enhanced by two piston rings with different thicknesses, just like the original. During the running-in phase, the printed molybdenum disulphide coating additionally supports and protects the sliding properties of the new piston.

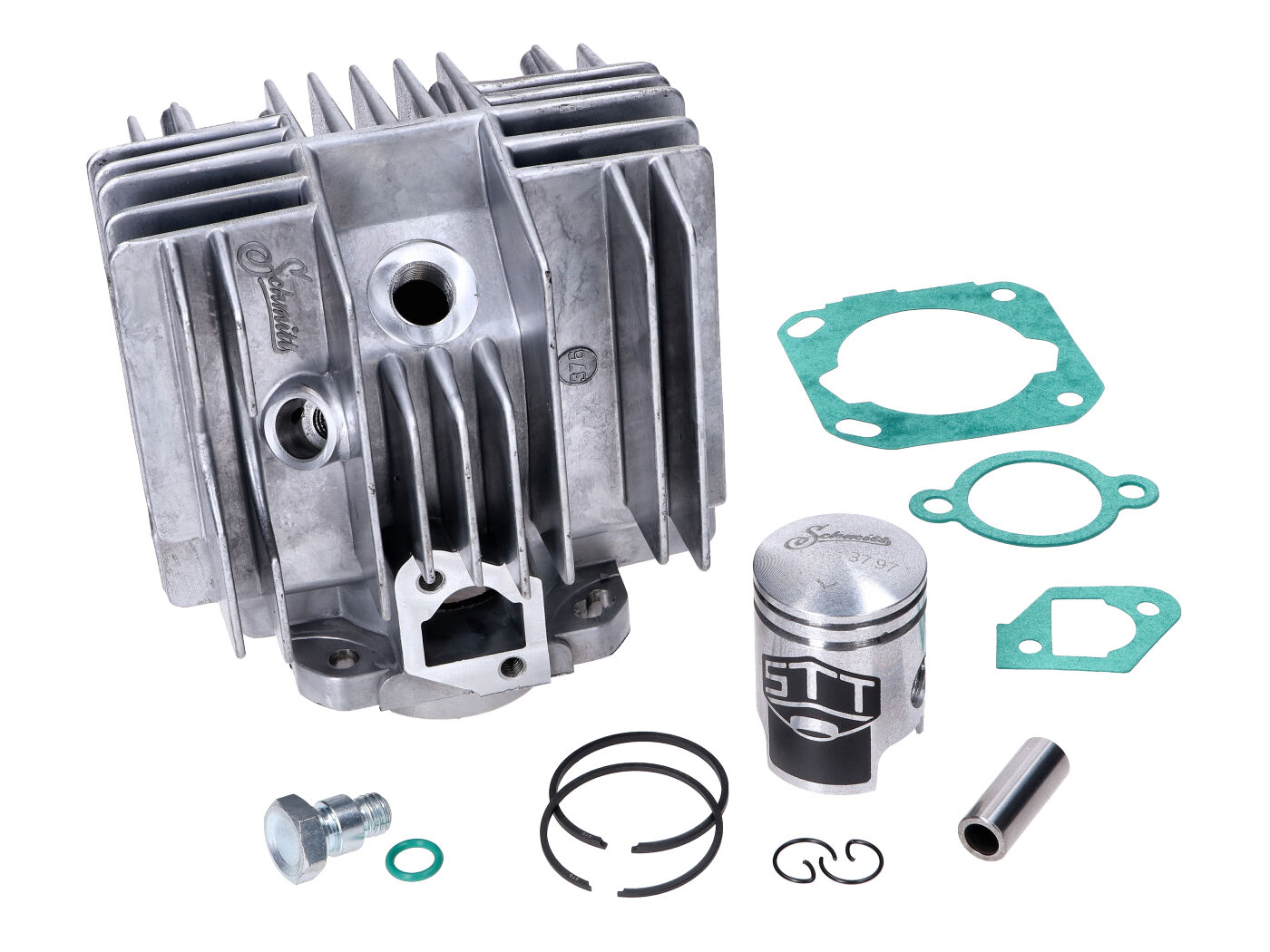

Scope of delivery:

• Cylinder with d=38mm
• Piston
• Piston rings
• Piston pin with clips
• Foot gasket
• Blind screw for decompression
