Cylinder kit PARMAKIT 40mm 50cc short stroke with head for Sachs S / RS engine, Hercules K

50cc cylinder kit with a 40mm bore, including a fan-cooled cylinder head from Parmakit, suitable for Sachs 50 S / RS engines. These engines were installed in Hercules K50, KX5, Ultra, Supra, Prima GT, MK Prima, as well as KTM Comet and DKW RT 139, among others.

The combustion chamber has been optimized and the compression increased, resulting in a noticeable increase in power and faster gas exchange. In addition, piston windows and a notch in the cylinder liner have been incorporated, which tightens the timing.
Displacement: 50ccm
Piston pin: 12mm
Stroke: 39.7mm short stroke
Bore: 40mm

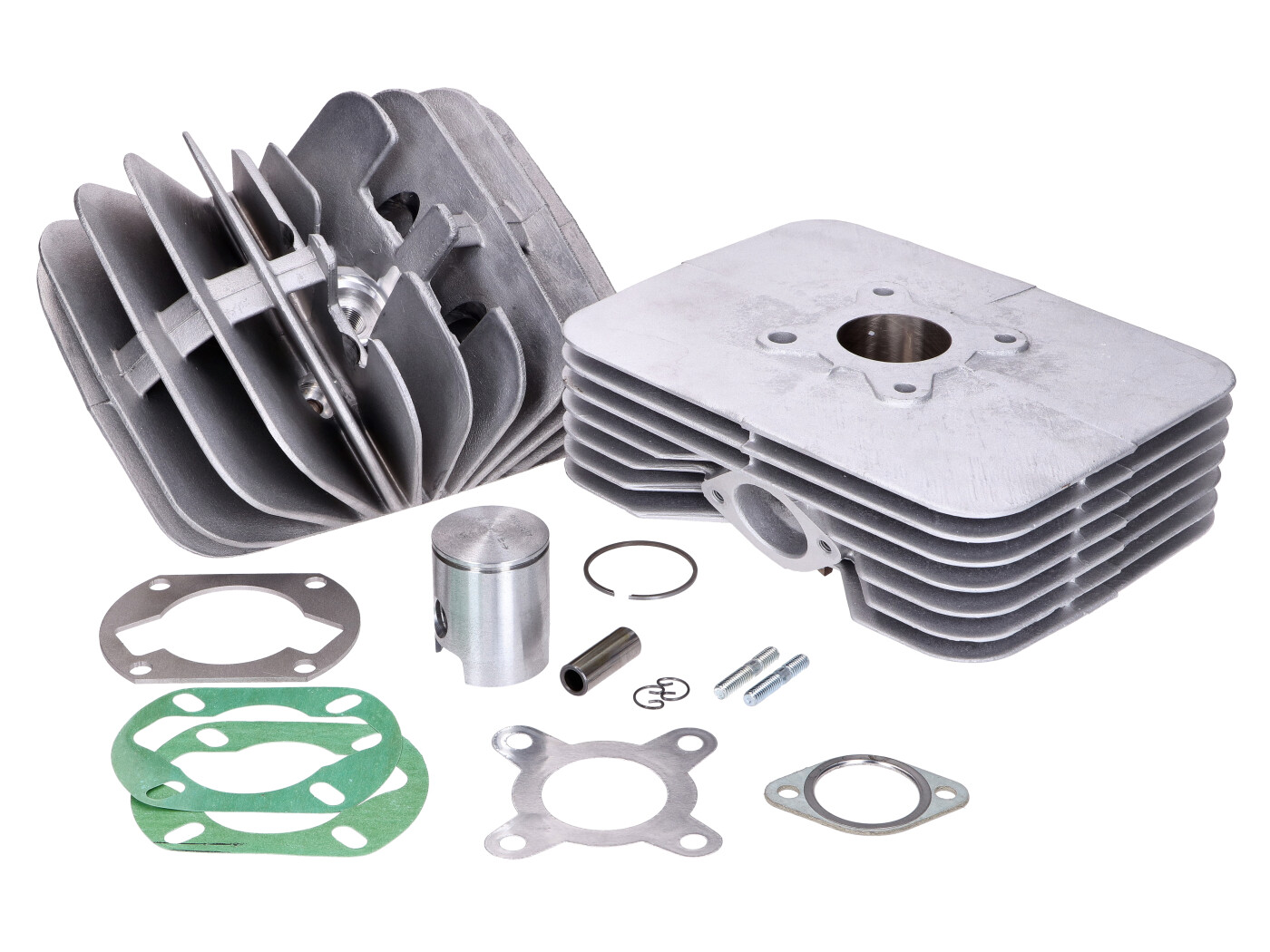

The set consists of a cylinder, cylinder head, piston set (piston, piston rings, piston pin, clips), and gaskets.
