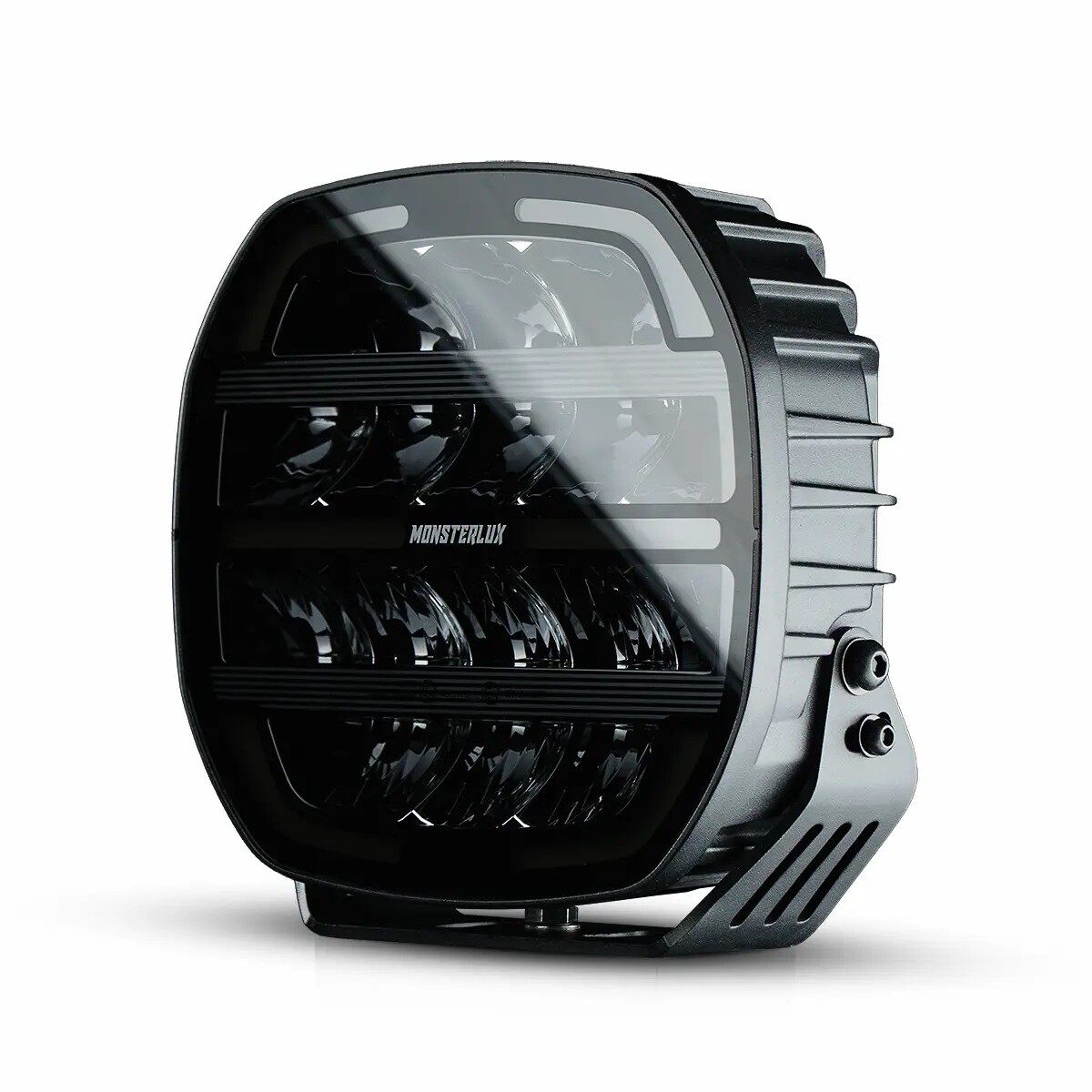

Auxiliary light Monsterlux Core 9, black, 9”, 4523 lumens, 5000 K, IP68

The Monsterlux Core 9 Auxiliary Light is a 9” round LED light with a black frame and modern dark optics, offering a balanced long-range and wide light pattern. It features 4523 lumens, a color temperature of 5000 K, and white and orange parking lights. Designed for durability with IP68 rating, it’s approved for road use and includes Monster Mode for off-road performance. Easy to install with a Deutsch 2-pin connector.

The Monsterlux Core 9 is a striking 9” round LED auxiliary light with modern dark optics and a black frame. It combines long range, a wide light pattern, and comfortable illumination for everyday driving. The carefully designed optics and road traffic approval make it a safe and stylish choice for both passenger cars and commercial vehicles.

Core 9 offers a balanced light pattern that combines good range with wide side visibility. The color temperature of 5000 K maintains clear contrast even in snow, rain, and darkness. Monster Mode™ unleashes the lamp’s full performance for off-road use. Stylish white and orange parking lights complete the look and enhance visibility. The robust frame, hardened lens, and sealed construction are designed to withstand water, salt, vibrations, and cold.

Installation is quick and neat thanks to the ready-made Deutsch DT 2-pin connector. A stable lower mount and support points on the back of the frame reduce vibrations and enable a secure installation even in demanding environments. Monster Mode is intended for off-road use only and is not approved for road traffic.

Technical data
- Article number: 3550-901001
- Lumens: 4523 lm (E-approved measurement) 9600 lm (Monster Mode measurement)
- Range: 436 m (E-approved) 667 m (Monster Mode)
- Color temperature: 5000 K
- Current consumption at 13.7V: 3.67 Amp (E-approved) 12.82 Amp (Monster Mode)
- Operating voltage: 9-36 V
- Power: 50.2 W (E-approved) 175 W (Monster Mode)
- Reference number: 45
- Parking lights: Yes, white and orange
- Approved for road traffic: Yes
- Approvals: 148, 149, R10
- IP rating: IP68
- Connector type: 2-pin Deutsch DTP
- Connector pair: Yes
- Cable length: 50 cm
- Shape: Round 9”
- Dimensions: 220 × 205 × 74 mm (Width|Height|Depth) (Height with mount 217 mm)
- Weight: 2.6 kg
- LED: 16 x LED
- Brightness control (boost): Yes
- Mount: Lower foot
- Warranty: 24 months
