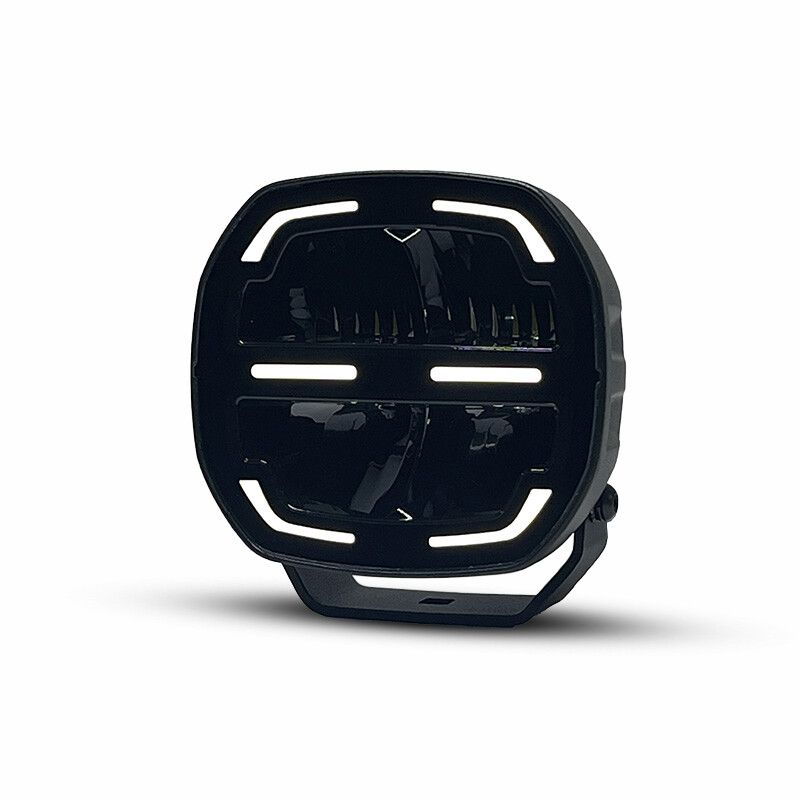

Auxiliary light MONSTERLUX Core 5, black

The Monsterlux Core 5 Auxiliary Light Black is a compact, powerful LED light featuring a black frame and two-tone parking light. It offers 1146 lumens brightness, a 239-meter range, and a combination light pattern for long-range and wide-area illumination. With a durable, IP68-rated aluminum housing and versatile mounting options, it’s ideal for motorcycles, ATVs, off-road vehicles, and more.

The Monsterlux Core 5 LED auxiliary light with a black frame is a compact and powerful auxiliary light that combines long range, wide light distribution, and modern dark optics. The black frame and two-tone parking light make it an excellent choice for motorcycles, ATVs, off-road vehicles, passenger cars, and eye-catching vehicle builds.

The combination light pattern guarantees a long-range area in the center as well as a wider spread of light, improving visibility to the sides as well. Measured brightness of 1146 lm and a range of 239 m at 1 lux provide effective extra lighting for demanding driving conditions. The dark optics give the light a modern and discreet appearance without compromising brightness. The durable cast aluminum housing, IP68 rating, and efficient heat management make this light a reliable choice for year-round tough use.

The Monsterlux Core 5 is suitable for versatile mounting thanks to its compact 5” design. The light can be mounted, for example, on bumpers, roof racks, ATVs, or work vehicles. The flat surface on the back of the frame and two M6 threads also allow for installation of multiple lights side by side.

Technical specifications
● Item number: 3555-501001B
● Brand and model: Monsterlux Core 5 LED auxiliary light with black frame
● Lumen: 1146 lm (measured)
● Range at 1 lux: 239 m
● Color temperature: 5000K
● Power consumption at 13.7V: 0.88 A
● Operating voltage: 9-36V
● Power: 12W (measured)
● Reference number: 12.5
● Parking light: Two-tone white and orange
● Approved for road use: Yes
● Approvals: R149, R10, R148, CE, RoHS
● IP rating: IP68
● Connector type: 4-pin Deutsch DT
● Connector pair: Yes
● Cable length: 50 cm
● Shape: Round 5"
● Dimensions: 114 × 108 × 55 mm (Width|Height|Depth) (Height with mount 119 mm)
● Weight: 700 g
● LED: 10W x 4 LEDs
● Brightness adjustment (boost): No
● Mounting: Underside with foot
● Warranty: 24 months
