CAM EZ STRT 583 07-14CD

In stock
SKU
09250445
€652.94

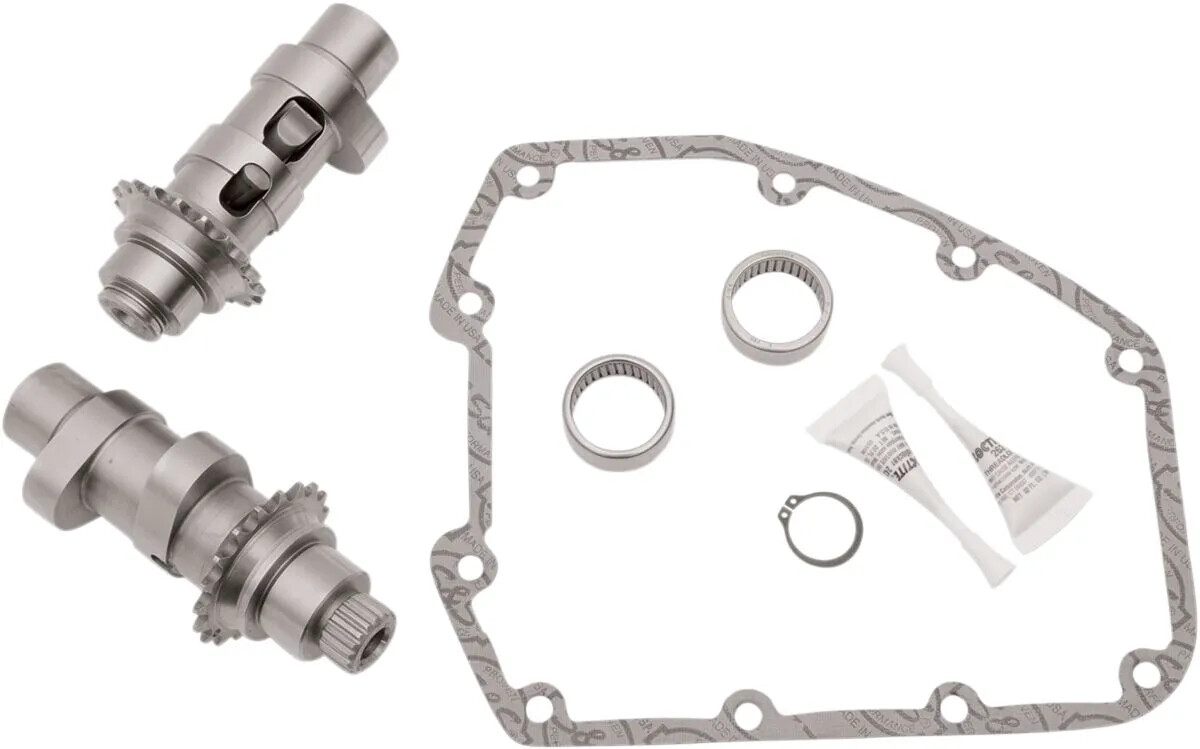

Easy Start Cam Kit for Twin Cam

  • Start any engine regardless of displacement or compression ratio with a stock starter
  • Save your starter and battery; tested for 10,000 starts without running battery down
  • Allow for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
  • All chain-drive cams include installation kit
  • All gear-drive cams include 4-gear set and installation kit
  • For 88/95/96/103 cubic-inch engines
  • Compression ratios below 10:1
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Due to the inherent characteristics of gear drives, you may experience more valve train noise.
  • Not for models with OEM compression releases.
  • Made in the U.S.A.



EXHAUST DURATION262°
EXHAUST LIFT0,583"
INTAKE DURATION204°
INTAKE LIFT0,583"
MODELEasy Start
APPLICATIONExhaust| Intake
EXHAUST CLOSE24°
EXHAUST OPEN58°
INTAKE CLOSE18°
INTAKE OPEN5°
FEATURESIncludes Installation Kit
TYPEChain
UNITSKit
PRODUCT NAMECam Kit
EXHAUST LIFT AT TDC0,206"
GRIND583 Series
EXHAUST LOBE CENTERLINE107°
INTAKE LOBE CENTERLINE96,5°
INTAKE LIFT AT TDC0,113"
EXHAUST LIFT IMPERIAL0.583"
INTAKE LIFT AT TDC IMPERIAL0.113"
EXHAUST OPEN IMPERIAL58°
EXHAUST LIFT AT TDC IMPERIAL0.206"
INTAKE DURATION IMPERIAL204°
INTAKE OPEN IMPERIAL5°
INTAKE CLOSE IMPERIAL18°
INTAKE LIFT IMPERIAL0.583"
EXHAUST DURATION IMPERIAL262°
EXHAUST CLOSE IMPERIAL24°
EXHAUST LOBE CENTERLINE IMPERIAL107°
INTAKE LOBE CENTERLINE IMPERIAL96.5°
