Rev limiter 101 OCTANE adjustable with toggle switch, universal

Universal and adjustable mini rev limiter with toggle switch.
With this limiter, the maximum motor speed is preset via two small rotary dials and switched on and off by means of a toggle switch. The speed limiter can be used on engines with external or stator mounted pickup sensor. The moulded housing is easily accommodated due to its compact design. Wiring and application are very easy to set up even for inexperienced users.
Compatibility:
This rev limiter works for almost all popular scooters and mopeds with 2-stroke and 4-stroke carburettor engines. This includes many GY6 139QMA/B vehicles, Derbi D50B as well as Minarelli AM6 or Kymco, Yamaha, Aprilia and Piaggio etc.
For direct injection engines and machines with electronic immobiliser, the limiter does not work!
Recommended lowest throttle speed is 35km/h and a reduction of the final speed by a maximum of 30%.
Dimensions:

Housing: 35x25x15mm + mounting eyelets

The length of the connection cable is 45-50cm, the switch cable is about 45cm long.

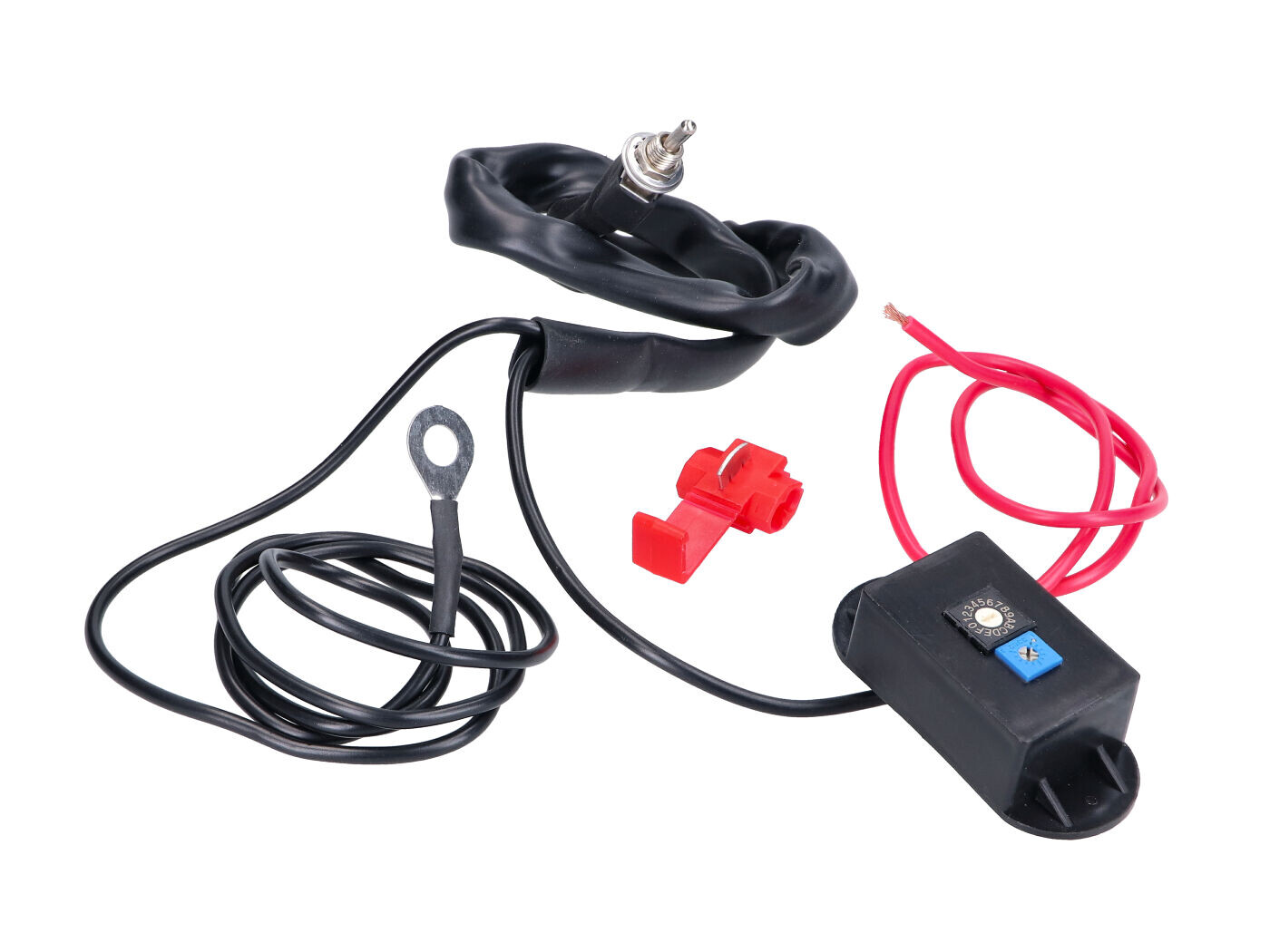

Scope of delivery:

speed limiter with toggle switch

user manual is available for download (German, English)

1x cable quick connector
