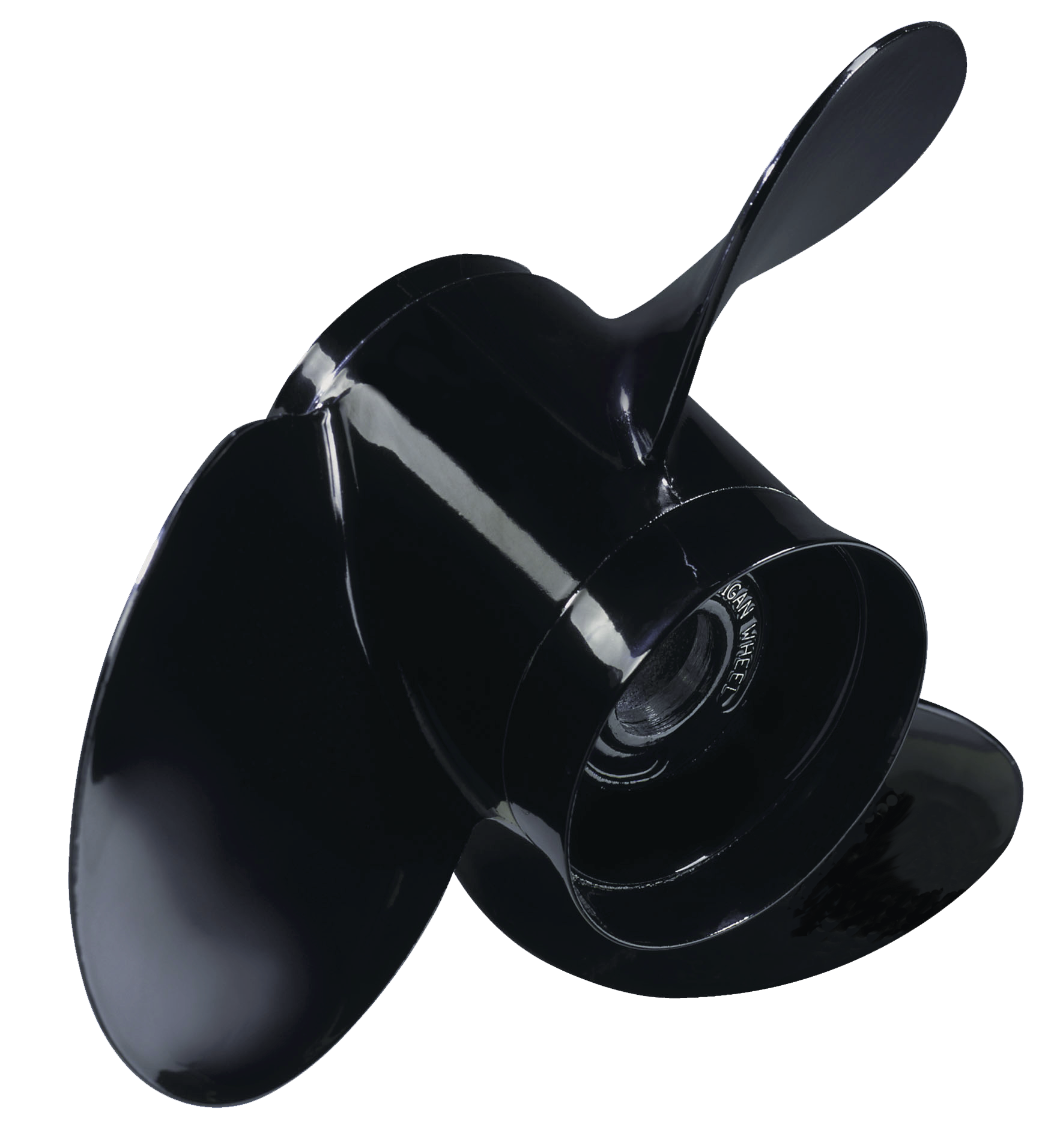

Propeller MICHIGAN WHEEL Vortex XHS 10-1/8 x 13

Michigan Wheel's high performance aluminum propeller utilizing XHS® / XHS II® Xchangeable Hub System.
High performance blade geometry
Precision balanced blades
High gloss powder coat
Honda 25-30 HP
Johnson/Evinrude 15-35 HP
Mercury/Mariner 9.9-30 HP
Suzuki 20-30 HP
Tohatsu/Nissan 25-30 HP
Yamaha 20-30 HP
For more detailed applications & which Hub Kit to use, go to \MORE INFO\.

Honda 25-30 HP
Johnson/Evinrude 15-35 HP
Mercury/Mariner 9.9-30 HP
Suzuki 20-30 HP
Tohatsu/Nissan 25-30 HP
Yamaha 20-30 HP
Honda 25-30 HP
*MUST use Gearcase Adapter Ring supplied with propeller*
• 10 Tooth Spline - 3 Gearcase - Thru Hub Exhaust - Hub Kit: 108-4-119 / 108-4-219
BF 25 1994-
BF 30 1995-
Johnson/Evinrude 15-35 HP
*MUST use Gearcase Adapter Ring supplied with propeller*
• 10 Tooth Spline - 3 Gearcase - Thru Hub Exhaust - Hub Kit: 108-4-121 / 108-4-221
25 HP 4-Stroke 2004-07
30 HP 4-Stroke 2004-07
• 14 Tooth Spline - 3 Gearcase - Thru Hub Exhaust - Hub Kit: 108-4-118 / 108-4-218
15 HP E-TEC H.O. 2011-
20 HP 2 Cyl 1984-97
25 HP (Commercial) 1993-05
25 HP 2 & 3 Cyl 1984-
25 HP E-TEC 2009-
30 HP 2 Cyl 1984-
30 HP E-TEC 2009-
35 HP 2 Cyl 1979-83
35 HP 3 Cyl 1997-01
Mercury/Mariner 9.9-30 HP
*MUST use Gearcase Adapter Ring supplied with propeller*
• 10 Tooth Spline - 3 Gearcase - Thru Hub Exhaust - Hub Kit: 108-4-120 / 108-4-220
9.9 HP 4-Stroke Bigfoot/Sail 1999-05
15 HP 4-Stroke Bigfoot/Sail 1999-05
18 HP (Mercury) 1980-85
20 HP 2-Stroke (Mercury) 1986-02
25 HP 2-Stroke (Mercury) 1980-05
25 HP 2-Stroke (Mariner) 1985-
25 HP (Sea Pro/Marathon) All years
• 10 Tooth Spline - 3 Gearcase - Thru Hub Exhaust - Hub Kit: 108-4-122 / 108-4-222
25 HP 4-Stroke (Not Bigfoot) 2006-
30 HP 4-Stroke (Not Bigfoot) 2006-
Suzuki 20-30 HP
*MUST use Gearcase Adapter Ring supplied with propeller*
• 10 Tooth Spline - 3 Gearcase - Thru Hub Exhaust - Hub Kit: 108-4-121 / 108-4-221
DT 20 1985-86 (*Use stopper 57632-96400)
DT 20 1987-88
DT 25 1985-86 (*Use stopper 57632-96400)
DT 25 1987-88
DT 25C 1989-00
DF 25 4-Stroke (Inc. V-Twin) 2000-
DF 25R 2010-
DF 25A 2014-
DT 30 1983-86 (*Use stopper 57632-96400)
DT 30 1987-97
DT 30C 1987-97
DF 30 4-Stroke 2000-07
DF 30A 2014-
Tohatsu/Nissan 25-30 HP
*MUST use Gearcase Adapter Ring supplied with propeller*
• 10 Tooth Spline - 3 Gearcase - Thru Hub Exhaust - Hub Kit: 108-4-122 / 108-4-222
25 HP 1986-01
25 HP 4-Stroke 2002-
30 HP 1985-01
30 HP TLDI 2016-
30 HP 4-Stroke 2002-
Yamaha 20-30 HP
*MUST use Gearcase Adapter Ring supplied with propeller*
• 10 Tooth Spline - 3 Gearcase - Thru Hub Exhaust - Hub Kit: 108-4-123 / 108-4-223
20 HP 1996-97
25 HP 1980-
F25 4-Stroke 1998-06
F25 4-Stroke 2010-
30 HP 1983-02

10-1/8 x 13
