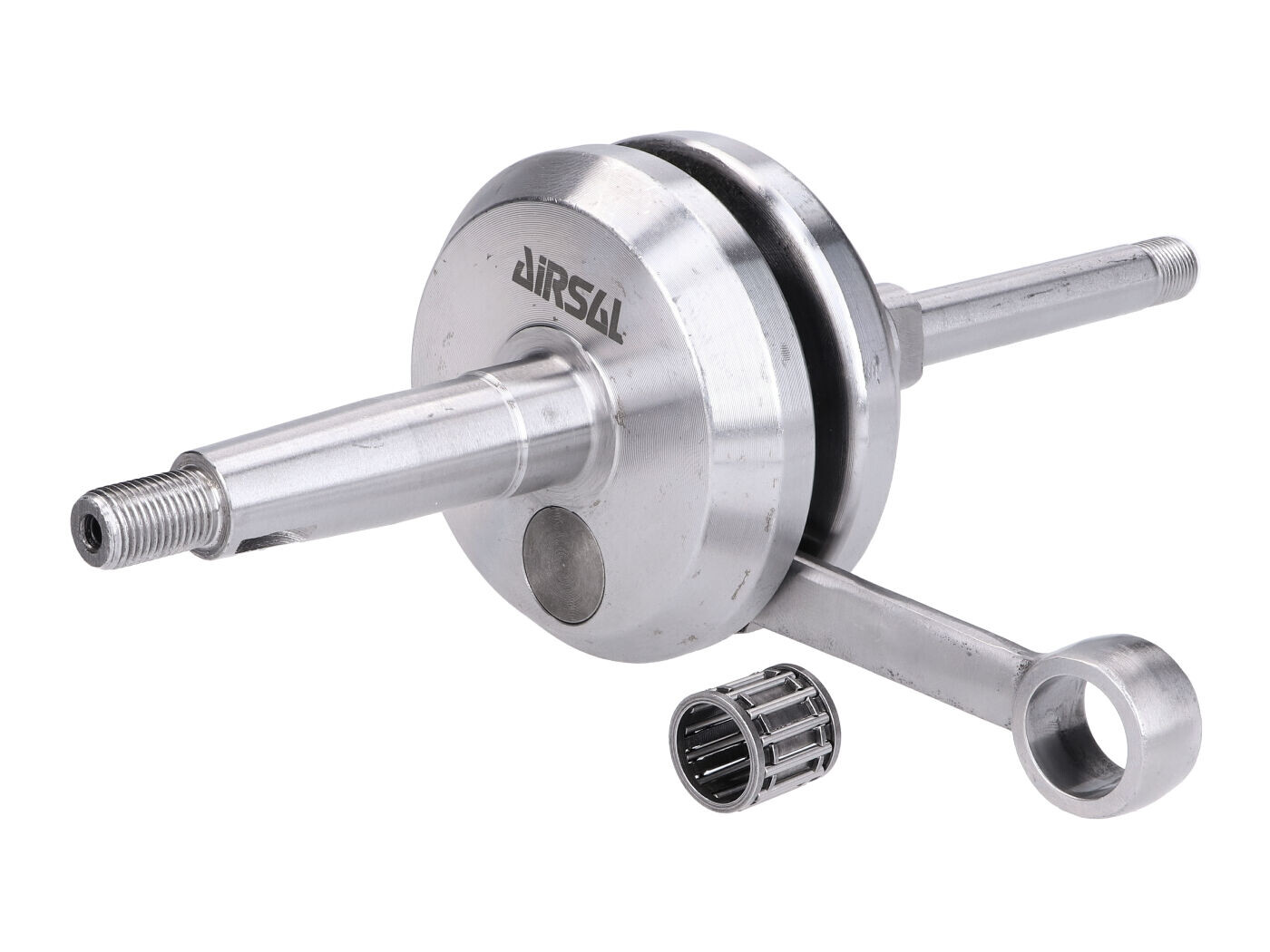

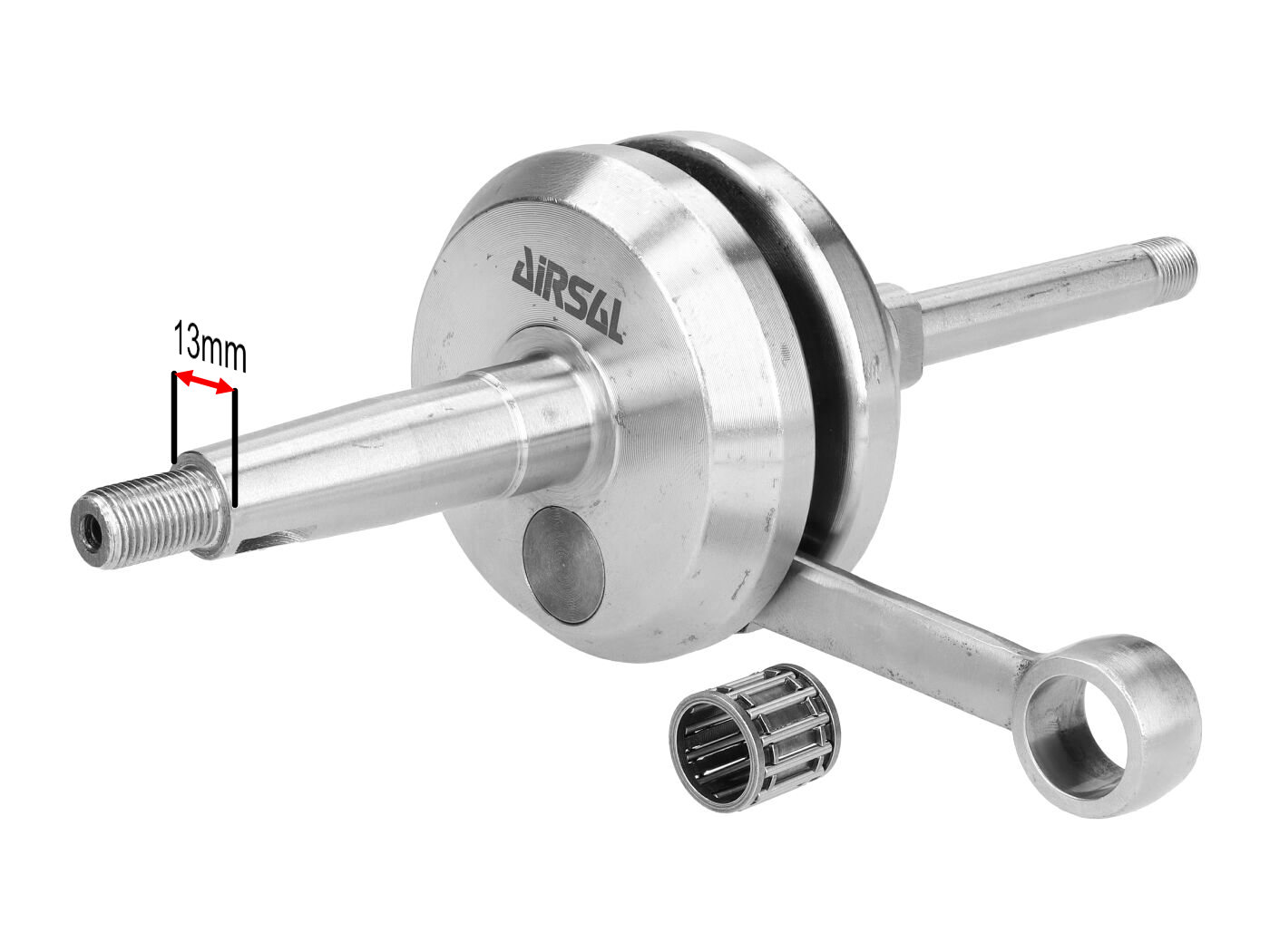

crankshaft Airsal original replica for Peugeot 103

High quality crankshaft from Airsal as original replica in top quality suitable for Peugeot 103 moped with large cone for electronic ignition.

Technical data:

Stroke: 39.1mm

Total length ignition side cheek pin: 70mm

.

Total length clutch side cheek pin: 97.8mm

.

Diameter 1st shoulder (coupling side cheek pin): 22mm

Diameter 2nd shoulder (coupling side cheek pin): 10mm

Thread on ignition side: M10x1

Thread on clutch side: M11x1

The scope of delivery includes a reinforced needle bearing 12x15x15mm.
