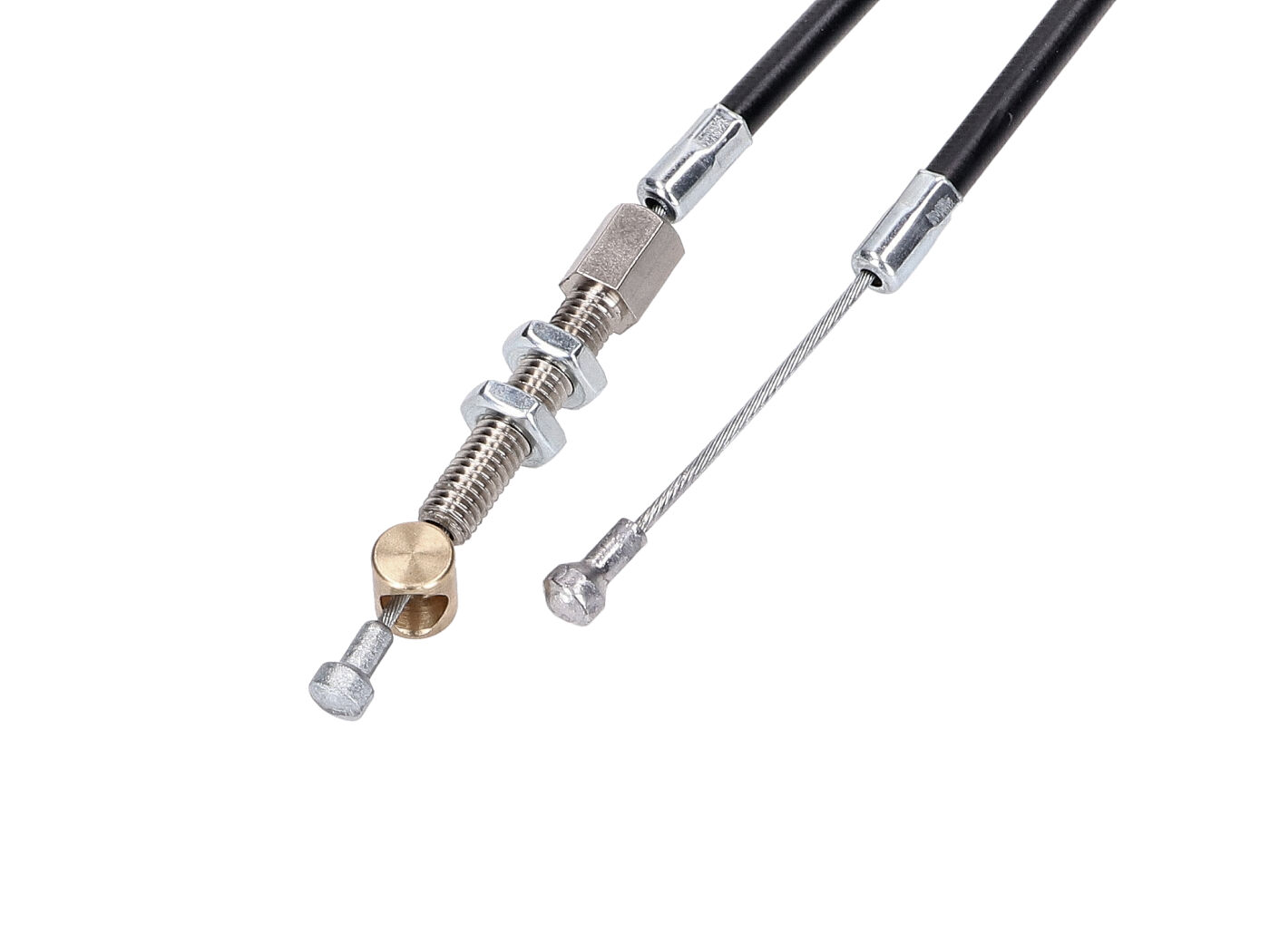

front brake cable Schmitt Premium wheel hub adjustment for Puch Maxi, X30 1-speed, 2-speed

Schmitt Premium cables are manufactured true to the original in Austria: Absolutely accurate fit and handmade in the highest quality. Fast machine manufacturing processes to save costs are deliberately not used here.

The inner cables are made from special cable steel (and not from the today mostly used brittle stainless steel). Therefore, the Schmitt Premium cables do not break as quickly as those from mass production.

Schmitt cables for classic vehicles are manufactured in the same design as it was standard at the time of production of the vehicles. Thus, for all fans of classic vehicles, a cable true to the original is used here. Since an inner cable manufactured in the old way tends to rust, it is lubricated with an Interflon high-performance fluid grease for life.

This Schmitt front brake cable fits Puch Maxi 1-speed, 2-speed and X30 / Sprinter with adjuster at the wheel hub. OEM number for comparison purposes only: 910.3.12.001.0

Dimensions:

Overall length: 101cm

Sheath length (incl. caps): 89.5cm

Stranded wire diameter: 1.5mm

Sheath diameter: 5mm

End cap length: 12mm

End cap diameter: 6mm

Graded nipple diameter, ball: 6mm head, 3.5mm neck

Graded nipple length, ball: 11mm

Nipple attachment diameter, cylindrical: 8mm

Nipple attachment length, cylindrical: 9mm

Threaded bolt length (with hexagonal adjusting screw): 40mm

Thread length: 29mm

Nut: M6
