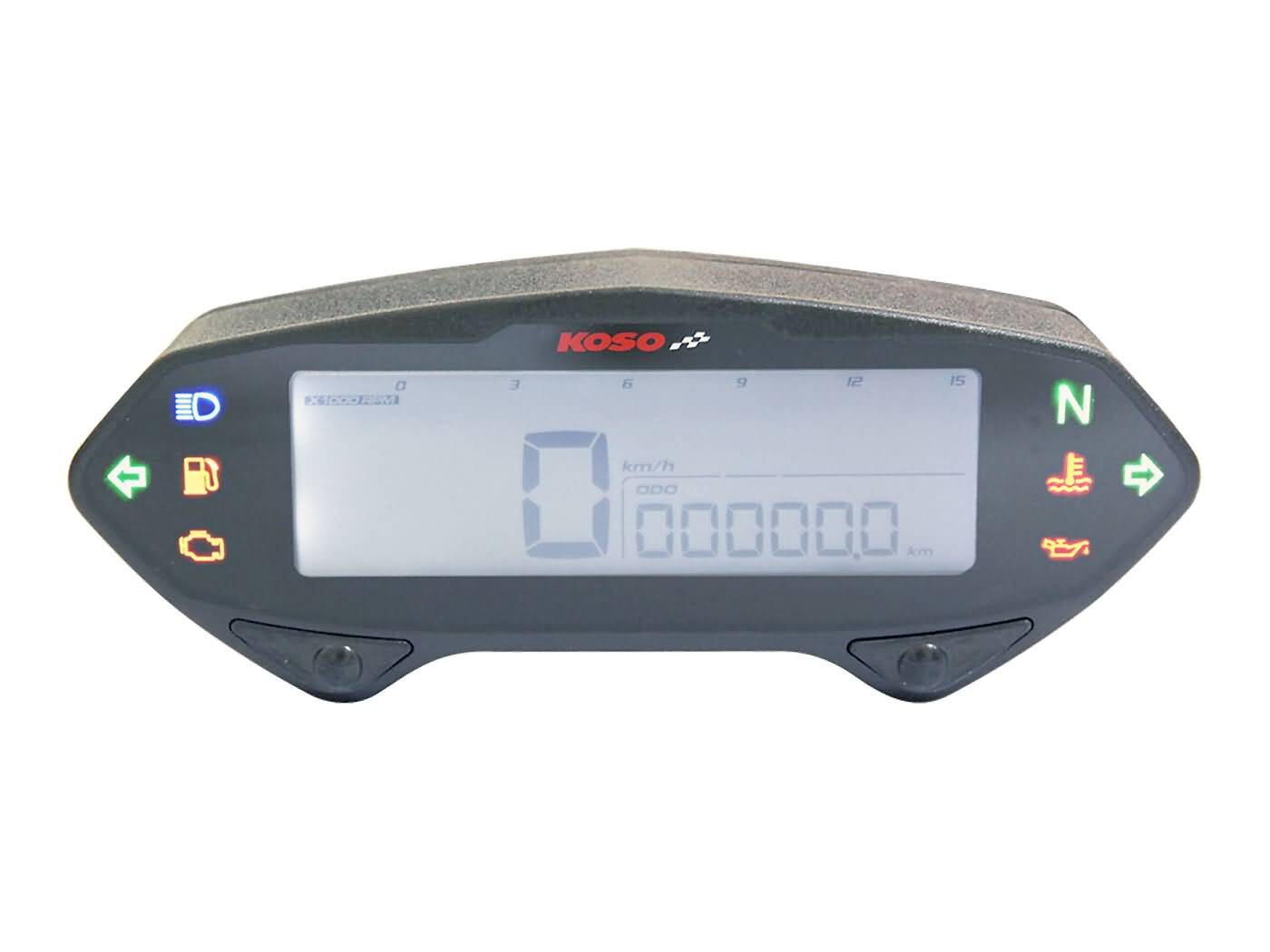

speedometer KOSO DB-01RN with E-mark

Universal digital speedometer from KOSO with white LCD backlight in a compact design. Suitable for scooters, Quads / ATVs and Enduros with 2 - or 4-stroke engines with a carburettoror fuel injection. Displays speed, fuel level and time, including oil, gasoline, flashers, trip distance and high beam switch. Vibration-proof and resistant to salt water. The decrease of the speed signal is done inductively and the wheel circumference is freely configurable. Included are wiring diagram, universal installation instructions and mounting materials. Speedometer: Display area: 0-360km / h (0-225MPH). Odometer: Display area: 00000.0 - 99999.9km (miles); Reset automatically after 99999.9 km (mile) distance meter A/B: Display area: 000.0 - 999.9km (mile); Reset automatically after 999.9 km (mile). Recordable top speed: Display area: 30-360km / h (19-225MPH) Tyre circumference setting: Setting range: 300-2500mm; Sensor points: 1-20 . Rev range setting: Setting range: 0.5, 1, 2,...-25. Recordable average speed: Recording range: 0-360km / h (0-225MPH) Tachometer: Display area: 0-15,000RPM; Unit: 10RPM. Rev range: Display area: 0-10,000 RPM / 0-12,000 RPM / 0-15,000 RPM shift light: Setting range: 1000-20,000RPM. Dimensions (Hxwxd): 50x120x20mm . Fuel guage: Setting range: 100Ohm, 250Ohm, 270Ohm, 510Ohm, 1200Ohm, user level gauge in levels: Setting range: 10-level indicator; Alert settings: when fuel level below the value of the setting, the symbol starts to flash; Warning setting range to low level: between 10-50%, when fuel level is below the value of the setting, the symbol starts flashing. Backlight: white, 5 x dimmable. Operating time total: Display area: 0.0 - 99999. 9hours; Unit: 0.1h operation time meter A/B: Display area: 0.0 - 9999. 9hours; Unit: 0, 1 h (format): Setting range: 12 h / 24 h: Setting range: 0:00 23:59 (24 h) / 1:00 12:59 (AM / PM) (12 h). Voltage meter: Setting range: Set DC 8.0V-16.0V. Oil change intervals: Unit: Metric and Imperial. Adjustable range: between 8000-(-)900km; counts down automatically as milage increases. From 0 km, the light flashes and the device counts down to – 999km. :Standard JIS with E-mark
