CAMS HP103C-EZ 07-14

In stock
SKU
09250830
€652.94

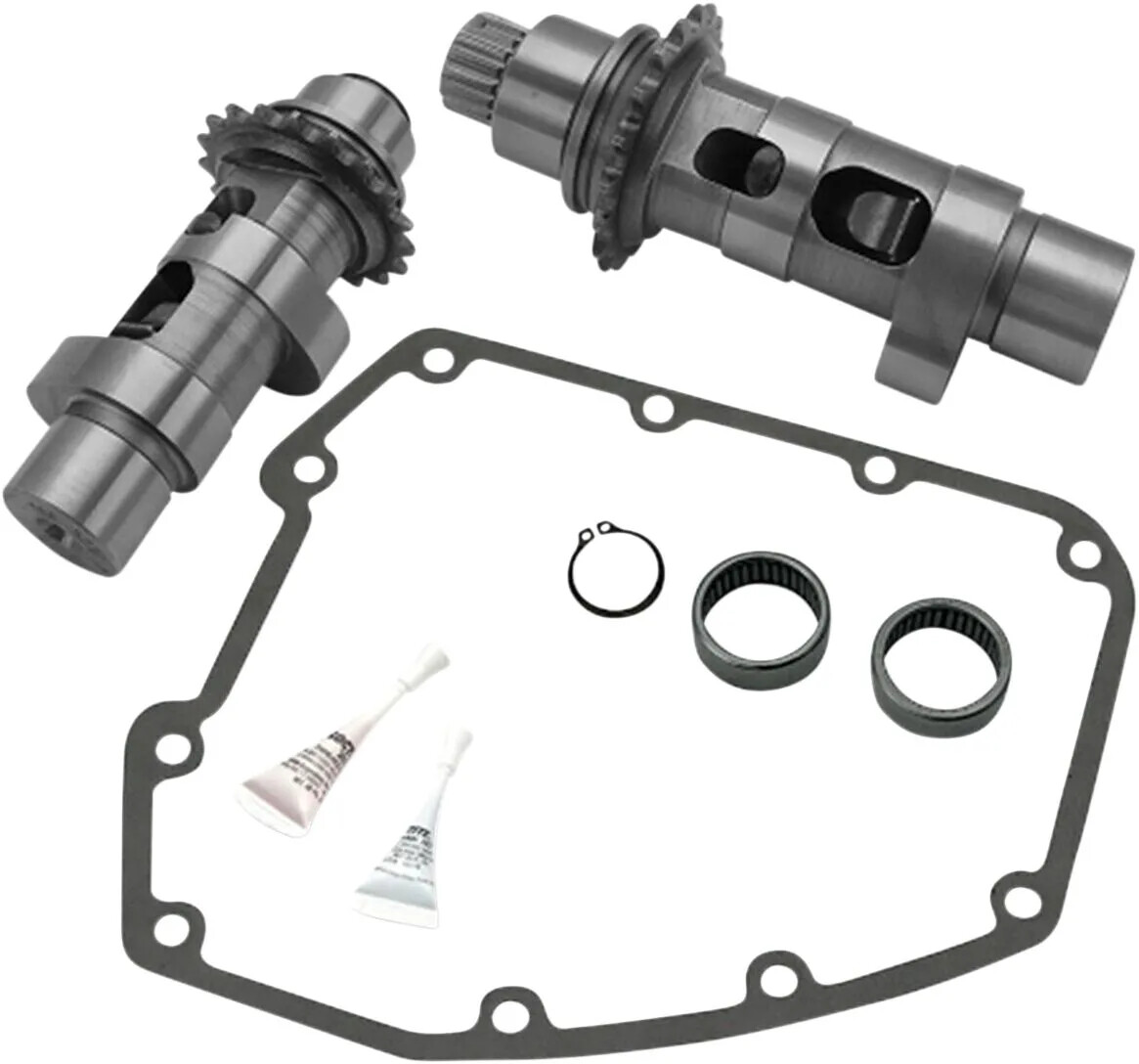

Easy Start Cam Kit for Twin Cam

  • Start any engine regardless of displacement or compression ratio with a stock starter
  • Save your starter and battery; tested for 10,000 starts without running battery down
  • Allow for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
  • All chain-drive cams include installation kit
  • All gear-drive cams include 4-gear set and installation kit
  • For 88/95/96/103 cubic-inch engines
  • Compression ratios below 10:1
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Due to the inherent characteristics of gear drives, you may experience more valve train noise.
  • Not for models with OEM compression releases.
  • Made in the U.S.A.



EXHAUST DURATION251°
EXHAUST LIFT0,575"
INTAKE DURATION249°
INTAKE LIFT0,575"
MODELEasy Start
APPLICATIONExhaust| Intake
EXHAUST CLOSE26°
EXHAUST OPEN45°
INTAKE CLOSE49°
INTAKE OPEN20°
FEATURESIncludes Installation Kit
TYPEChain
UNITSKit
PRODUCT NAMECam Kit
GRINDHP103
EXHAUST LIFT IMPERIAL0.575"
EXHAUST OPEN IMPERIAL45°
INTAKE DURATION IMPERIAL249°
INTAKE OPEN IMPERIAL20°
INTAKE CLOSE IMPERIAL49°
INTAKE LIFT IMPERIAL0.575"
EXHAUST DURATION IMPERIAL251°
EXHAUST CLOSE IMPERIAL26°
