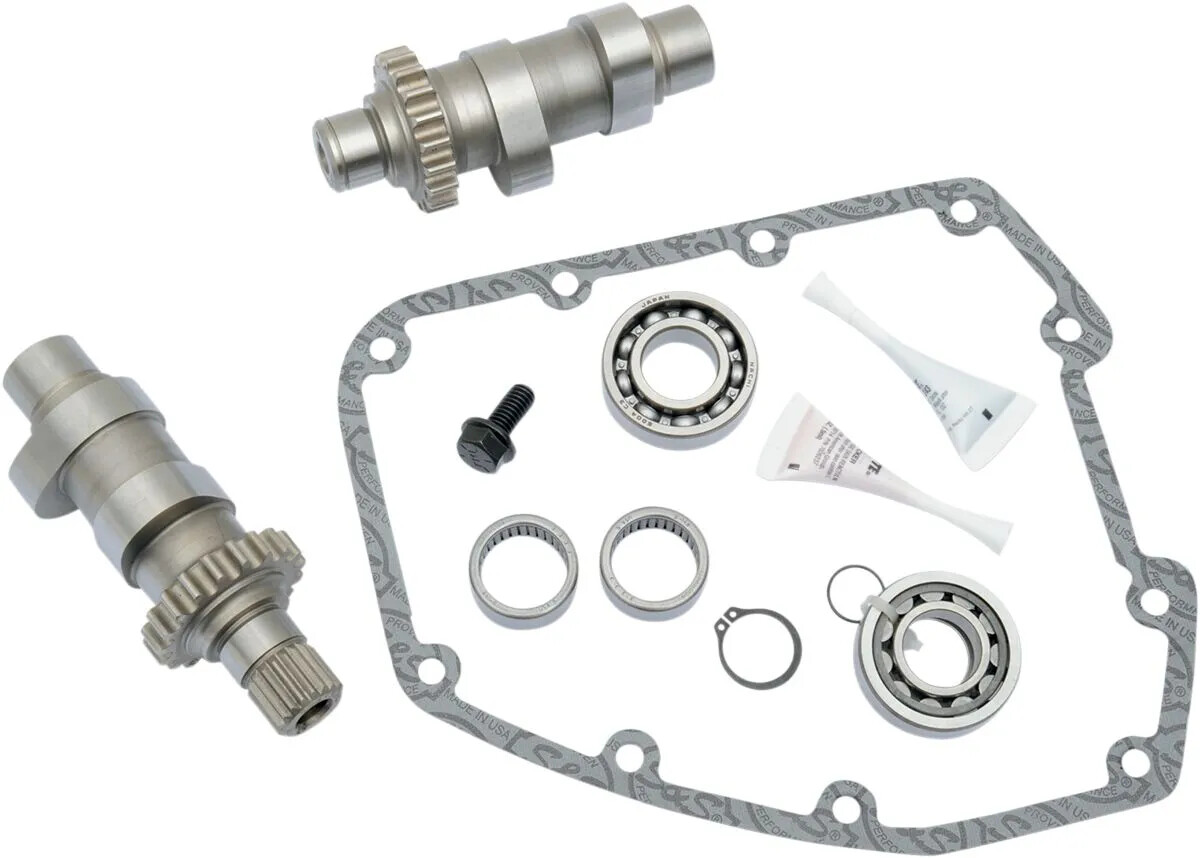

    main product photo

    CAM 509 CHN 99-06

    Be the first to review this product
    In stock
    SKU
    09250539
    S+S CYCLE
    Special Price €419.00 Regular Price €479.00
    Dispatching between 06.10.2026 and 07.10.2026
    Ship to EE Calculate Shipping Cost
    Add to Compare
    LHV Inbank Bigbank Esto Esto3 Liisi Svea
    Calculate instalment
    ▼
    Select provider
    Down payment
    €
    Loan amount: –
    Payment period
    24 months
    3 months 60 months
    Monthly payment – €
    Product price –
    Loan amount –
    Total amount –
    Interest cost –
    Interest rate –
    Max loan amount –

    The calculator is informative. The final offer depends on the provider's terms and credit decision.

    509 Cam Kit

    • Great low and mid-range torque
    • Lower lift allows them to be bolted into stock 96"-106" 2006 engines with stock valve springs
    • Strongest from 1,000-4,500 rpm
    • 180 psi cranking compression; no need for compression releases
    • Included Items: (2) Chain drive cams (1) front, (1) rear, (2) 22 x28.5 x12 Needle bearings, (1) Large O-ring, (2) Small O-rings, (1) Retaining ring, (1) 20 x 42x 12 Bearing, (1) 20 x 42 x12 Bearing w/O-ring, (1) 5/16"-18 x 3/4" Flange hex head bolt, (1) Cam cover gasket, (1) 5ml Tube of loctite® 262, (1) 5ml Tube of loctite® 243, Instructions
    • Made in the U.S.A.
    • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.Due to the inherent characteristics of gear drives, you may experience more valve train noise
    • If OES, 509 or 510C cams are used with the stock chain drive system in Twin Cam 88 engines, it is recommended to use cylinder heads with stock valve springs or performance valve springs with no more than 160 lb. of seat force. For more demanding applications, we recommend the S&S gear drive cams.



    EXHAUST DURATION 237°
    EXHAUST LIFT 0,509"
    INTAKE DURATION 216°
    INTAKE LIFT 0,509"
    APPLICATION Exhaust| Intake
    EXHAUST CLOSE 11°
    EXHAUST OPEN 46°
    INTAKE CLOSE 18°
    INTAKE OPEN 18°
    TYPE Chain
    UNITS Kit
    PRODUCT NAME Cam Kit
    EXHAUST LIFT AT TDC 0,140"
    GRIND 509 Series
    EXHAUST LOBE CENTERLINE 107,5°
    INTAKE LOBE CENTERLINE 90°
    INTAKE LIFT AT TDC 0,174"
    EXHAUST LIFT IMPERIAL 0.509"
    INTAKE LIFT AT TDC IMPERIAL 0.174"
    EXHAUST OPEN IMPERIAL 46°
    EXHAUST LIFT AT TDC IMPERIAL 0.140"
    INTAKE DURATION IMPERIAL 216°
    INTAKE OPEN IMPERIAL 18°
    INTAKE CLOSE IMPERIAL 18°
    INTAKE LIFT IMPERIAL 0.509"
    EXHAUST DURATION IMPERIAL 237°
    EXHAUST CLOSE IMPERIAL 11°
    EXHAUST LOBE CENTERLINE IMPERIAL 107.5°
    INTAKE LOBE CENTERLINE IMPERIAL 90°
    More Information
    Weight 1.830000
    Height 126
    Width 295
    Brand S+S CYCLE
    Lenght 240
    Availability In the central warehouse
    Supplier reference 330-0016
    Ships in 1 business day
    Campains Suvelõpu tühjendus
    Fitment chart (old) HARLEY DAVIDSON FLHR 1450 ROAD KING 1999-2006 FLHRC 1450 ROAD KING CLASSIC 2004 FLHRCI 1450 EFI ROAD KING CLASSIC 1999-2006 FLHRI 1450 EFI ROAD KING 1999-2000,2003-2006 FLHRS 1450 ROAD KING CUSTOM 2004-2006 FLHRSEI 1550 ROAD KING SCREAMIN EAGLE 2002 FLHRSEI2 1690 ROAD KING SCREAMIN EAGLE 2003 FLHRSI 1450 EFI ROAD KING CUSTOM 2004-2006 FLHT 1450 ELECTRA GLIDE 1999-2005 FLHTC 1450 ELECTRA GLIDE CLASSIC 2002-2005 FLHTCI 1450 EFI ELECTRA GLIDE CLASSIC 1999-2000,2003-2006 FLHTCSE2 1690 EFI ELECTRA GLIDE SCREAMIN EAGLE 2005 FLHTCUI 1450 EFI ELECTRA GLIDE ULTRA CLASSIC 1999-2006 FLHTCUSE 1690 ELECTRA GLIDE ULTRA CLASSIC SCREAMIN EAGLE 2006 FLHTI 1450 EFI ELECTRA GLIDE 2004-2006 FLHX 1450 STREET GLIDE 2006 FLHXI 1450 EFI STREET GLIDE 2006 FLST 1450 HERITAGE SOFTAIL 2006 FLSTC 1450 HERITAGE SOFTAIL CLASSIC 2000-2006 FLSTCI 1450 EFI HERITAGE SOFTAIL CLASSIC 2001-2006 FLSTF 1450 FAT BOY 2000-2006 FLSTFI 1450 EFI FAT BOY 2001-2006 FLSTFI 1550 EFI FAT BOY 15TH ANNIVERSARY 2005 FLSTFSE 1690 FAT BOY SCREAMIN EAGLE 2005 FLSTFSE2 1690 FAT BOY SCREAMIN EAGLE 2006 FLSTI 1450 EFI HERITAGE SOFTAIL 2006 FLSTN 1450 SOFTAIL DELUXE 2005-2006 FLSTNI 1450 EFI SOFTAIL DELUXE 2005-2006 FLSTS 1450 HERITAGE SOFTAIL SPRINGER 2000-2003 FLSTSC 1450 SOFTAIL SPRINGER CLASSIC 2005-2006 FLSTSCI 1450 EFI SOFTAIL SPRINGER CLASSIC 2005-2006 FLSTSI 1450 EFI HERITAGE SOFTAIL SPRINGER 2003 FLTR 1450 ROAD GLIDE 1999-2002 FLTRI 1450 EFI ROAD GLIDE 1999-2006 FLTRSEI 1550 ROAD GLIDE SCREAMIN EAGLE 2000 FLTRSEI2 1550 ROAD GLIDE SCREAMIN EAGLE 2001 FXD 1450 DYNA SUPER GLIDE 1999-2005 FXDC 1450 DYNA SUPER GLIDE CUSTOM 2005 FXDCI 1450 EFI DYNA SUPER GLIDE CUSTOM 2005 FXDI 1450 EFI DYNA SUPER GLIDE 2004-2005 FXDL 1450 DYNA LOW RIDER 1999-2005 FXDLI 1450 EFI DYNA LOW RIDER 2004-2005 FXDWG 1450 DYNA WIDE GLIDE 1999-2005 FXDWG2 1450 DYNA WIDE GLIDE LIMITED EDITION 2001 FXDWG3 1450 DYNA WIDE GLIDE LIMITED EDITION 2002 FXDWGI 1450 EFI DYNA WIDE GLIDE 2004-2005 FXDX 1450 DYNA SUPER GLIDE SPORT 1999-2004 FXDXI 1450 EFI DYNA SUPER GLIDE SPORT 2004-2005 FXDXT 1450 DYNA SUPER GLIDE T-SPORT 2001-2003 FXST 1450 SOFTAIL 2000-2006 FXSTB 1450 SOFTAIL NIGHT TRAIN 2000-2006 FXSTBI 1450 EFI SOFTAIL NIGHT TRAIN 2003-2006 FXSTD 1450 SOFTAIL DEUCE 2000-2006 FXSTDI 1450 EFI SOFTAIL DEUCE 2001-2006 FXSTDSE 1550 SOFTAIL DEUCE SCREAMIN EAGLE 2003 FXSTDSE2 1550 SOFTAIL DEUCE SCREAMIN EAGLE 2004 FXSTI 1450 EFI SOFTAIL 2003-2006 FXSTS 1450 SOFTAIL SPRINGER 2000-2005 FXSTSI 1450 EFI SOFTAIL SPRINGER 2003-2005
