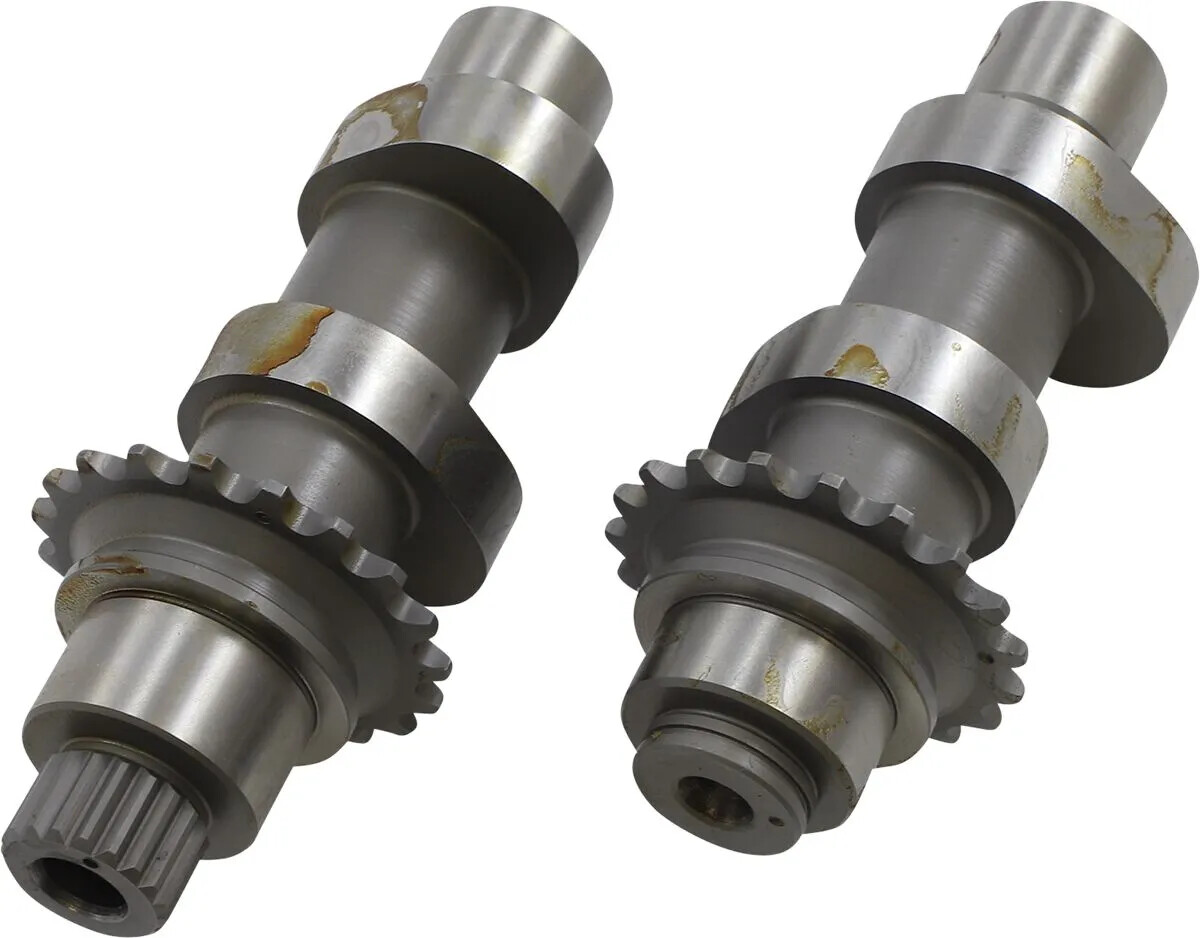

CAM ROLLER CONVER. 37N

Chain Driven Cam

• Allow you to upgrade your 99-06 Twin Cam (except 06 Dyna Glide) to the newer roller-style cam chains and replaces the spring tension cam chain adjusters with the later-style hydraulic adjusters for longer life
• Cam grinds listed are designed to be used with stock lifters; they require the installation of a 07-17 cam plate, oil pump, cam sprockets and chains, and both hydraulic chain adjusters (these parts are not included and must be purchased separately)
• A list of required components is supplied with each set of cams
• Performance should be similar to earlier bikes with the same cam grinds
• Made in the U.S.A.
• 99-06 Twin Cam motors (except 06 Dyna Glide) cannot use the 07-17 cams, as the bearing journal on the earlier motors is .875" in diameter and the 07-17 cams are 1.000" in diameter. The "N" series of cams feature the .875" bearing journal, yet still accept the new style cam support plate
• 99-01 model motors must use the Andrews rear cam sprocket Drag part #0925-0147. 2002-2006 models must use the stock rear cam sprocket, OEM #25728-06
• Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance

Bolt-in cams for 88" or 95" motors Smooth idle, broad torque band Run best with low-restriction

EXHAUST DURATION	236°
EXHAUST LIFT	0,510"
INTAKE DURATION	240°
INTAKE LIFT	0,510"
APPLICATION	Exhaust| Intake
EXHAUST CLOSE	14°
EXHAUST OPEN	46°
INTAKE CLOSE	48°
INTAKE OPEN	18°
FEATURES	Can be used with stock springs and tappets.
TYPE	Chain
UNITS	Pair
PRODUCT NAME	Cam Kit
EXHAUST LIFT AT TDC	0,148"
GRIND	37 Series
EXHAUST LOBE CENTERLINE	106°
INTAKE LOBE CENTERLINE	100°
INTAKE LIFT AT TDC	0,174"
