CAM EZ-551CHN 99-06

In stock
SKU
09250521
€715.33

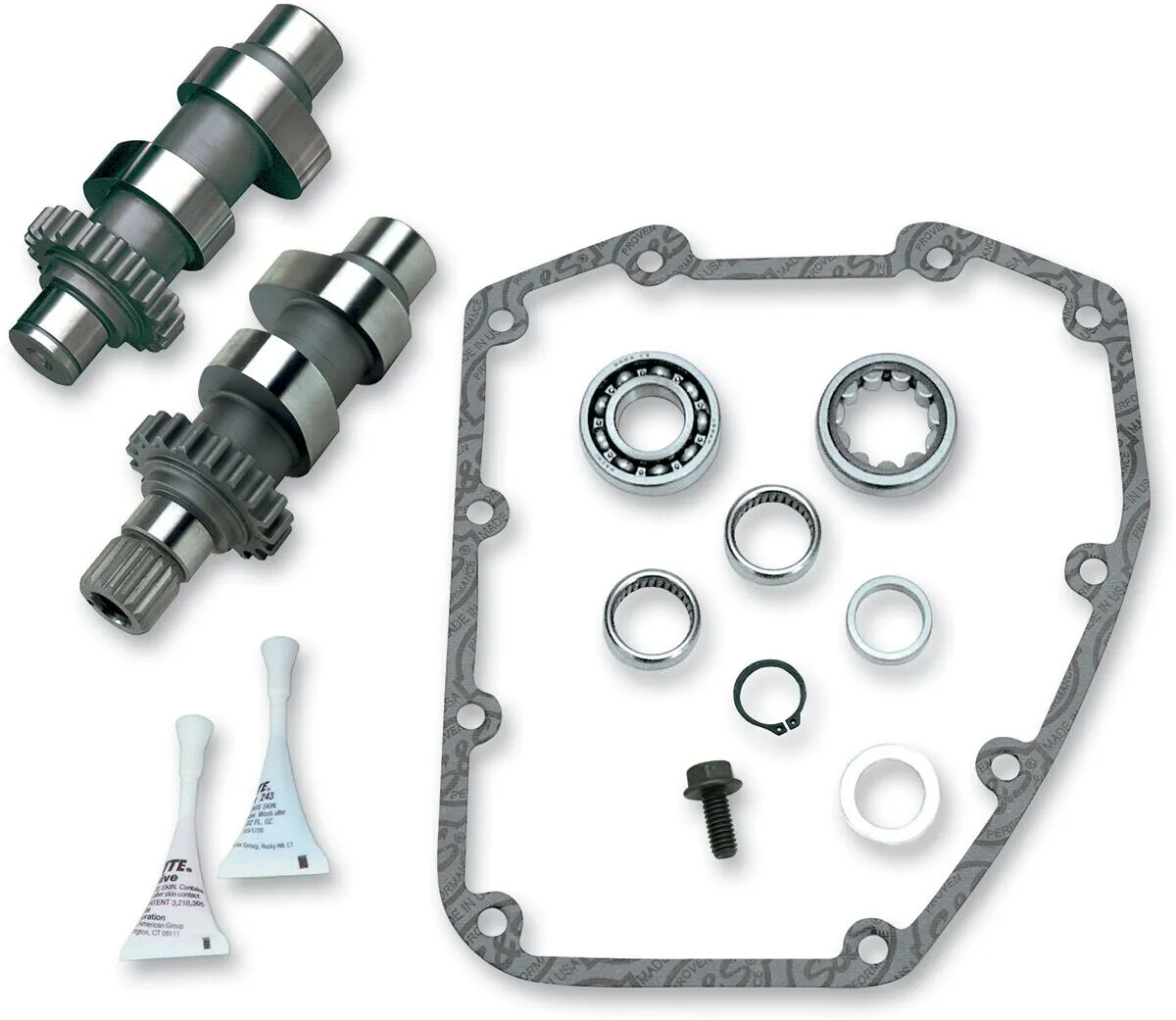

Easy Start Cam Kit for Twin Cam

  • Start any engine regardless of displacement or compression ratio with a stock starter
  • Save your starter and battery; tested for 10,000 starts without running battery down
  • Allow for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
  • All chain-drive cams include installation kit
  • All gear-drive cams include 4-gear set and installation kit
  • For 88/95/96/103 cubic-inch engines
  • Compression ratios below 10:1
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Due to the inherent characteristics of gear drives, you may experience more valve train noise.
  • Not for models with OEM compression releases.
  • Made in the U.S.A.



EXHAUST DURATION237°
EXHAUST LIFT0,550"
INTAKE DURATION215°
INTAKE LIFT0,550"
MODELEasy Start
APPLICATIONExhaust| Intake
EXHAUST CLOSE17°
EXHAUST OPEN41°
INTAKE CLOSE19°
INTAKE OPEN17°
FEATURESIncludes Installation Kit
TYPEChain
UNITSKit
PRODUCT NAMECam Kit
EXHAUST LIFT AT TDC0,170"
GRIND551 Series
EXHAUST LOBE CENTERLINE102°
INTAKE LOBE CENTERLINE91°
INTAKE LIFT AT TDC0,178"
EXHAUST LIFT IMPERIAL0.550"
INTAKE LIFT AT TDC IMPERIAL0.178"
EXHAUST OPEN IMPERIAL41°
EXHAUST LIFT AT TDC IMPERIAL0.170"
INTAKE DURATION IMPERIAL215°
INTAKE OPEN IMPERIAL17°
INTAKE CLOSE IMPERIAL19°
INTAKE LIFT IMPERIAL0.550"
EXHAUST DURATION IMPERIAL237°
EXHAUST CLOSE IMPERIAL17°
EXHAUST LOBE CENTERLINE IMPERIAL102°
INTAKE LOBE CENTERLINE IMPERIAL91°
