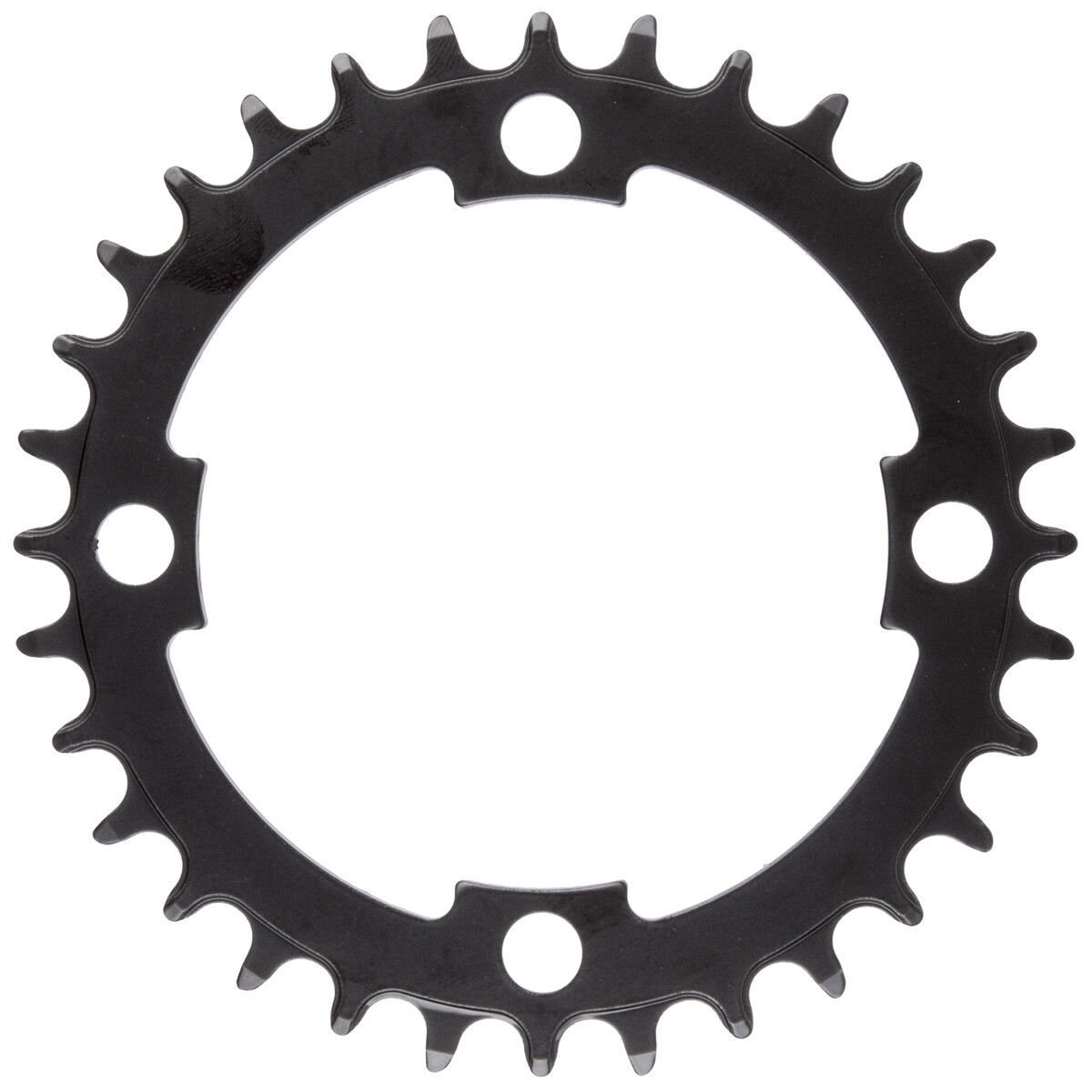

Chainring SAMOX E-bike Narrow wide BCD104 steel black. 32T.

Narrow wide chainring

32 teeth
Fits 3/32", 11/128" chains
4-bolt mounting
Color: Black
BCD/cross hole spacing 104mm
Weight: 170g
Measuring bolt spacing on chainrings
For 4-bolt models, measure the distance between adjacent bolt holes
For 5-bolt models, generally use the measurement chart below as a guide.
Number of bolts on the chainring Distance between two holes Diagonal hole spacing
mm inches (PCD/BCD)
4 45.3mm 1.78 inch 64mm
4 56.6mm 2.23 inch 80mm
4 62.2mm 2.45 inch 88mm
4 66.5mm 2.62 inch 94mm
4 67.9mm 2.67 inch 96mm
4 72.1mm 2.84 inch 102mm
4 73.5mm 2.90 inch 104mm
4 84.9mm 3.34 inch 120mm
5 43.5mm 1.71 inch 74mm
5 55.2mm 2.18 inch 94mm
5 64.7mm 2.55 inch 110mm
5 76.4mm 3.01 inch 130mm
5 79.4mm 3.12 inch 135mm
Calculation formula for bolt spacing on the outer circle:
4-bolt:
Distance between adjacent holes divided by 0.7071 = bolt spacing
5-bolt:
Distance between adjacent holes divided by 0.5878 = bolt spacing
