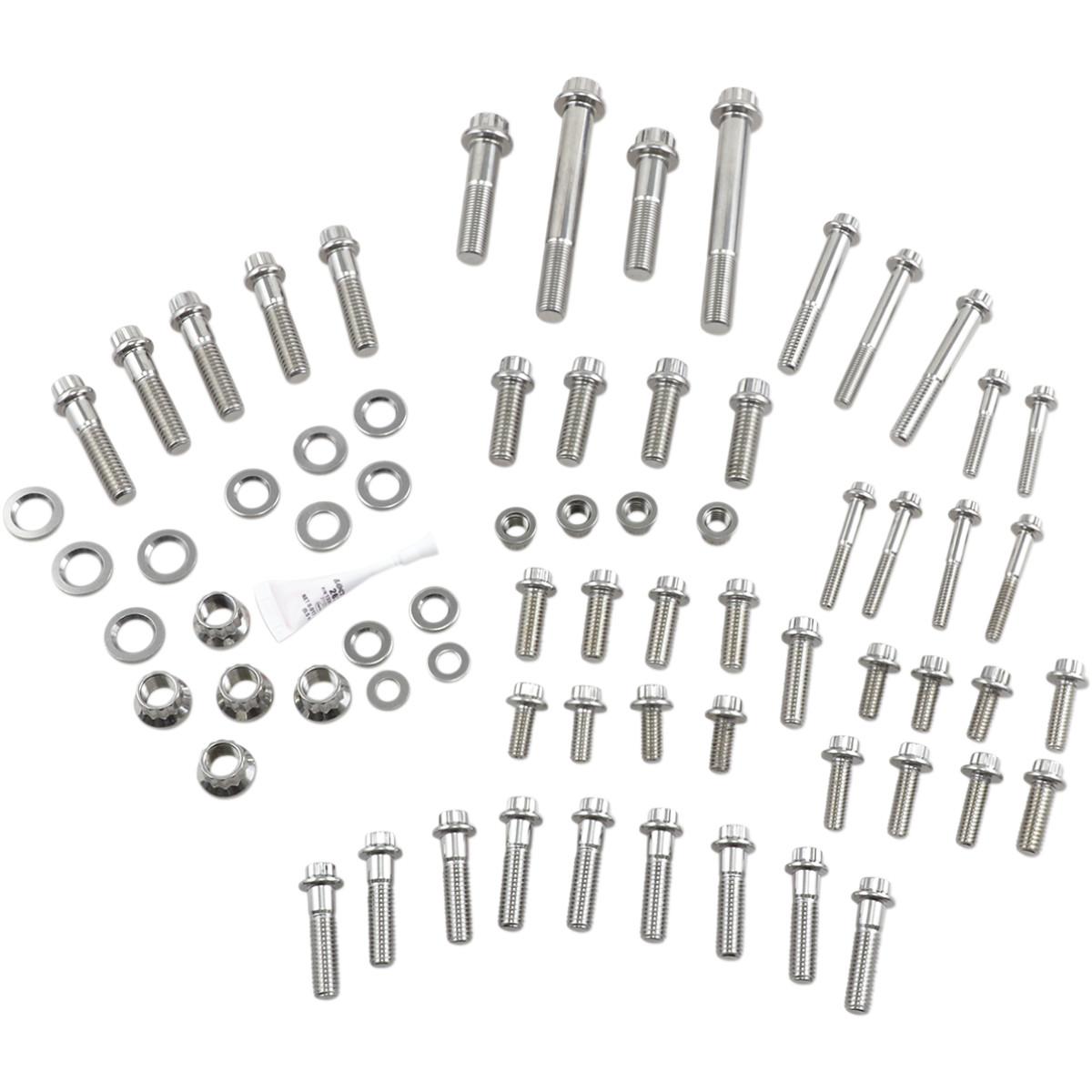

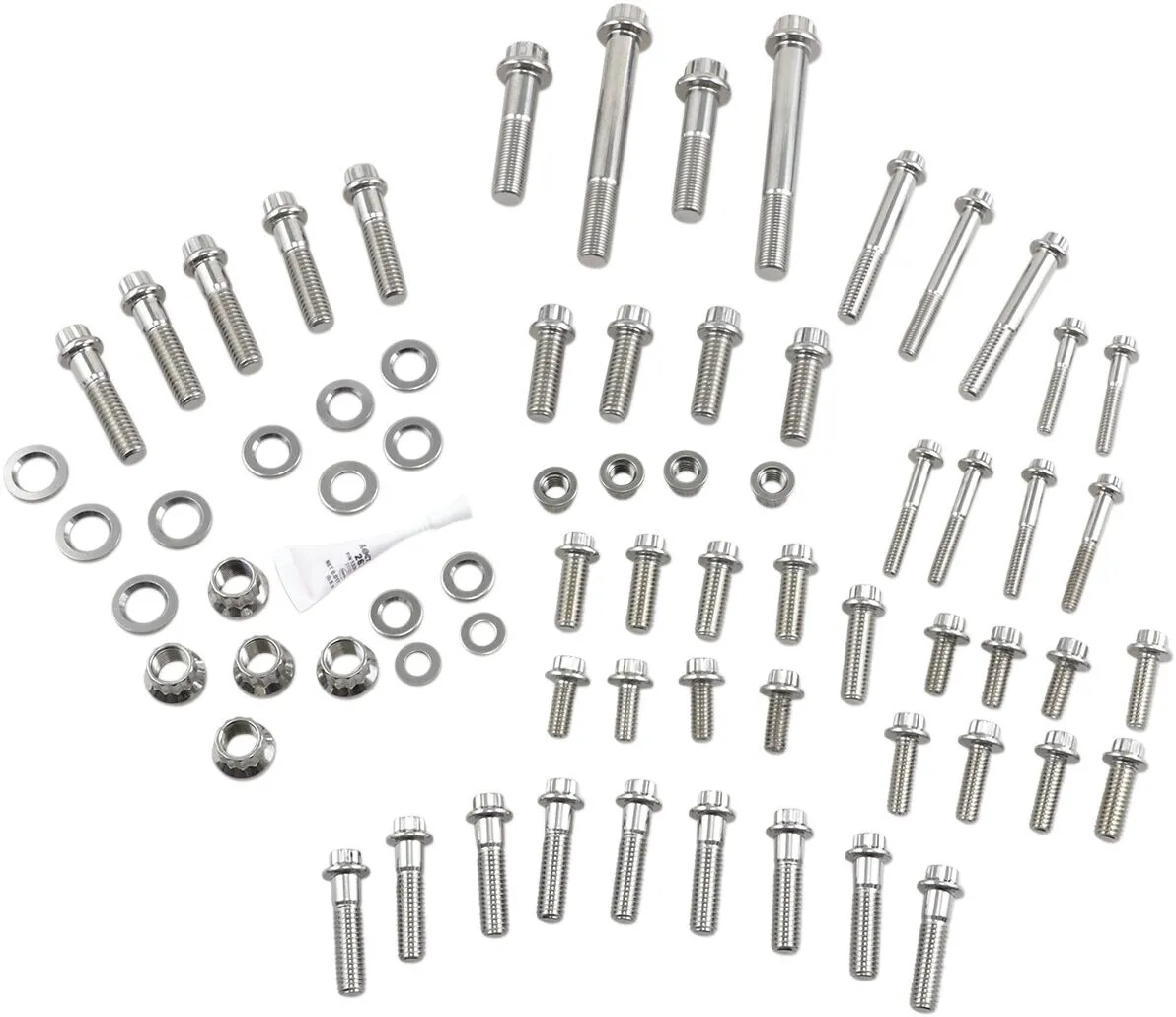

BOLT KT CHASSIS FXR 85-99

ARP® 12-Point Fastener Kit

• Quality 12-point heat-treated 8740 chrome moly steel bolts with black oxide finish and/or Chrome depending on your selection
• Feature precision-rolled threads for optimum engagement, to prevent galling and promote more consistent torque loading
• Wide underhead flange design provides even load distribution for optimum sealing of surfaces, preventing leaks
• Tensile strength rated @ 170,000 psi; superior and stronger than OEM and stronger than grade 8 fasteners
• Manufactured by ARP® to Feuling’s® exact specifications
• All kits include moly assembly lubricant for installation
• Made in the U.S.A.

For FXR/EVO 85-99. : Includes bolts and washers for front right rotor (bolts do NOT clear speedo for left rotor), fork clamps, headlight bracket, voltage regulator, rear fender struts, upper rear shocks (requires drilling larger fender hole), lower rear shocks, rear rotor, rear pully/sprocket, rear swing arm supports, front stabilizer, side covers (right & left), dash board, foot pegs (right & left), shifter peg and front axle nut. Moly paste and Loctite included for installation

COLOR/FINISH	Stainless Steel
MATERIAL	Stainless Steel
APPLICATION	Chassis
TYPE	Bolt
UNITS	Kit
PRODUCT NAME	Hardware Kit
HEAD TYPE	12-Point Flange
FASTENER TYPE	12-Point Flange
BASE FINISH	Natural
