P/U SENSR FOR CABLE DRIVE

Mechanical Speedometer Cable Adapter

• Speed pulse generator for cable driven applications
• Speed pulse generators can be used on Sportbike and Metric Cruisers applications with some modification to OEM speedometer cable to accommodate for a 5/8" thread size
• Certain Harley Davidson 12 mm cables are not compatible and may require modification or a custom cable replacement

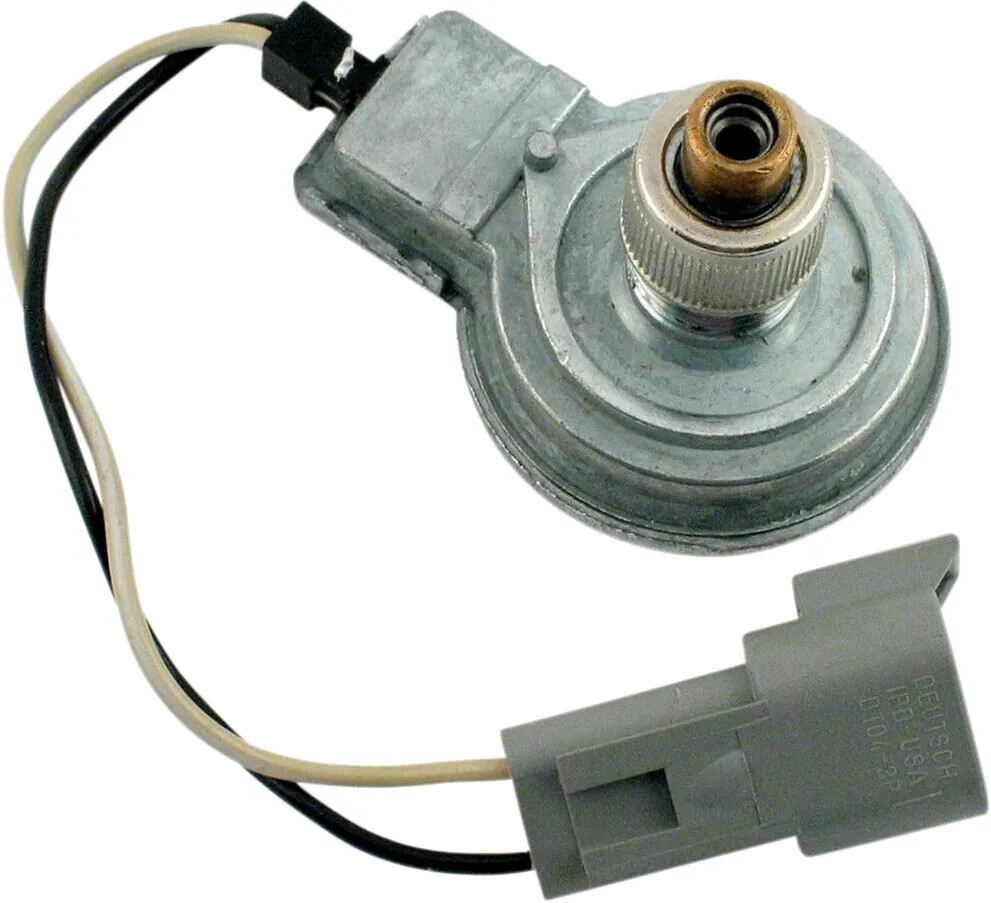

Sending unit for cable drive applications (screws to the end of the cable, can be remotely mounted or mounted to the speedometer; uses 5/8”-18 thread), for 3011 model 3-3/8” speedometer with indicators (Part Number 2210-0038) and 3016 model 3-3/8” speedometer/tachometer with indicators (Part Number 2212-0101). For use with MCV-7xxx, MCL-5xxx Series, MCL-4xxx, MCL/ HLY-2002, MVX-2002, HLY-3011/3015/ 3016, HLY-6000 and HLY-1000 series speedometers.

APPLICATION	Cable Drive
STYLE	Mechanical
TYPE	Speedometer
UNITS	Each
PRODUCT NAME	Adapter
DIAMETER - THREAD SIZE	16 mm (5/8")
