BRAKE DISC HALO T-FLOATER

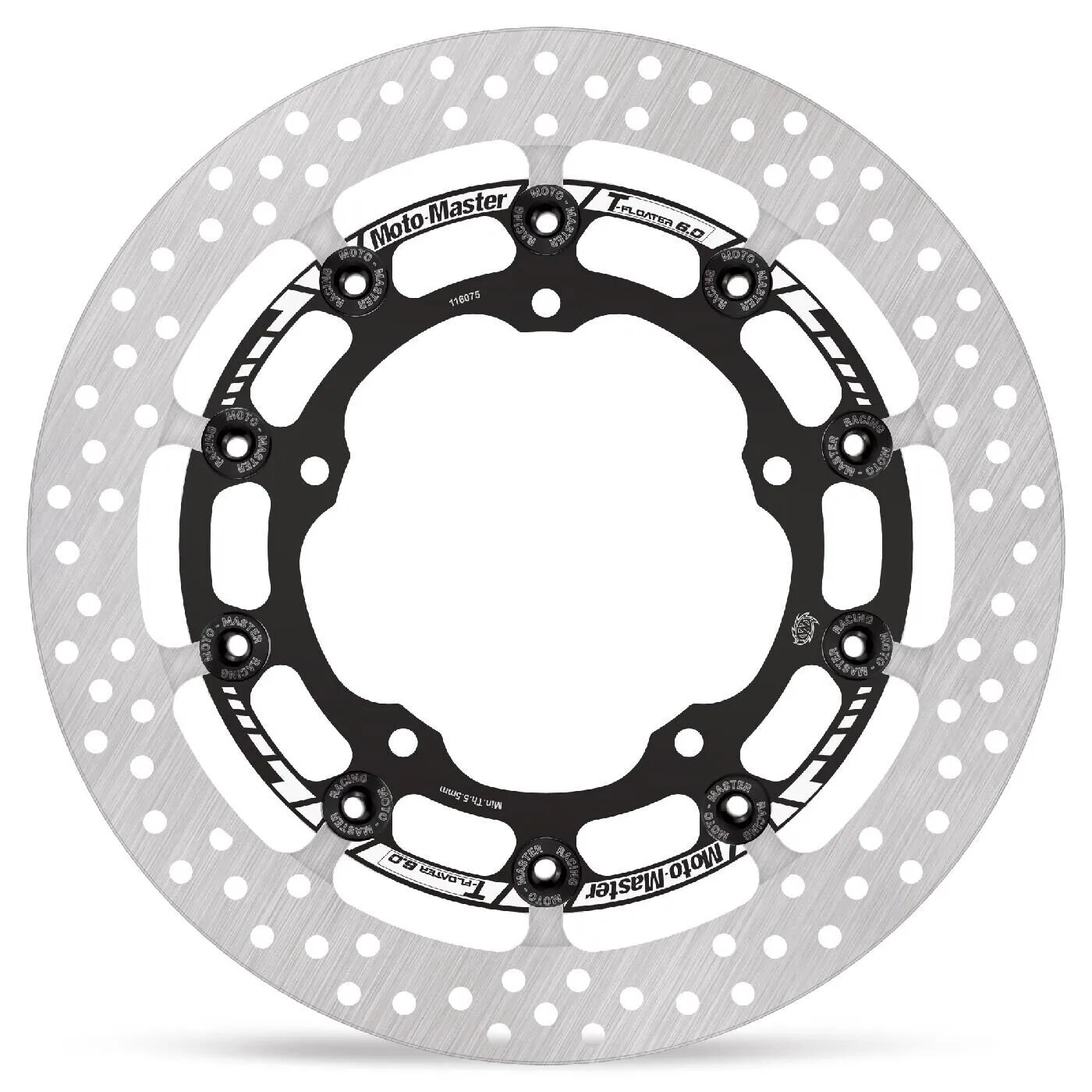

HALO series T-Floater brake rotor

• HALO outer ring design ensures equal heat dispersion under high thermal stress while the brake pad contact surface is cleaned evenly.
• Outer ring thickness is 6.0mm (320mm) and features an extra cooling slot on external perimeter.
• The laser cut and precision grinded outer ring is fixed to a billet CNC machined aircraft aluminium carrier which is black anodized and laser marked.
• T-Floater system ensures precise controlled full floating action under the most severe racing conditions.
• T-Floater pin-slot construction allows high mechanical load while exhibiting minimum wear.
• T-Floater system is lightweight due to specially designed, hard anodized aluminium floaters.

Diameter Outer 320mm, Diameter Inner 132mm, Thickness 6,0mm

BOLT PATTERN	6 Hole
COLOR/FINISH	Black| Stainless Steel
INSIDE DIAMETER	132 mm (5-3/16")
MATERIAL	Aluminum| Stainless Steel
OUTSIDE DIAMETER	320 mm (12-19/32'')
SHAPE	Round
THICKNESS	6,0 mm (15/64")
FEATURES	Standard
STYLE	Full-Floating
TYPE	Two Piece (Floating)
UNITS	Each
PRODUCT NAME	Brake Rotor
BOLT HOLE CIRCLE	150,0 mm
BRAKING SURFACE	Drilled
