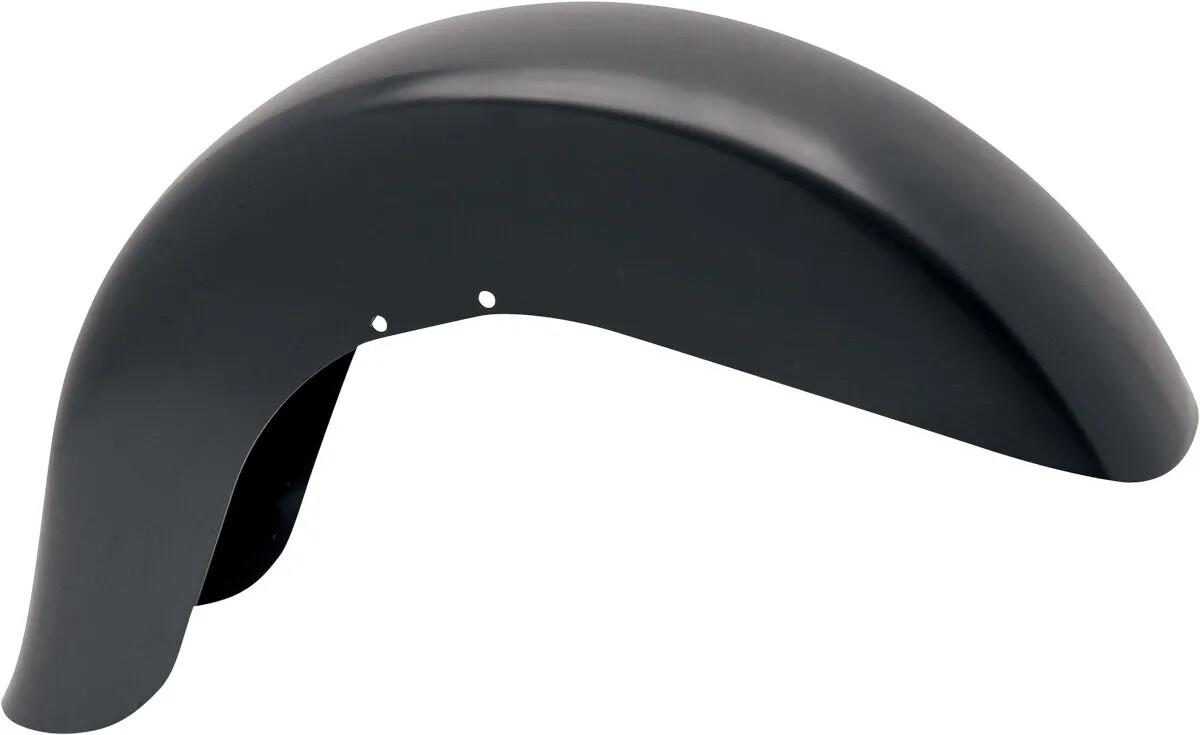

FENDER BENCHMARK FT 16/18

Benchmark Front Fender for Softails

• Stamped from 14-gauge U.S. steel, these 6-1/2" wide fenders are E-coated to prevent rust and corrosion with the lowest paint prep in the industry
• The use of precision deep-draw stamping technology ensures a consistent flawless finish while minimizing body work
• May also be used in a variety of custom applications
• No mounting blocks required
• Made in the U.S.A.

For FXS/FXST/FLST models (except springers) and custom applications.

COLOR/FINISH	E-Coating
FENDER WIDTH	165,10 mm (6,50")
MATERIAL	Steel
MODEL	Benchmark
HEIGHT	343,00 mm (13,50")
UNITS	Each
PRODUCT NAME	Fender
MOUNTING POSITION	Front
STRAIGHT LINE LENGTH	793,75 mm (31,25")
FOR WHEEL SIZE	406,40 mm (16,00")| 431,80 mm (17,00")| 457,20 mm (18,00")
CONTOUR LENGTH	1111,25 mm (43,75")
OUTSIDE MOUNTING WIDTH METRIC	-
OUTSIDE MOUNTING WIDTH IMPERIAL	-
OUTSIDE MOUNTING WIDTH	-
INSIDE MOUNTING WIDTH IMPERIAL	-
FOR WHEEL SIZE METRIC	406.40 mm
INSIDE MOUNTING WIDTH	-
INSIDE MOUNTING WIDTH METRIC	-
FOR WHEEL SIZE IMPERIAL	16.00"| 17.00"| 18.00"
BASE FINISH	E-Coating
