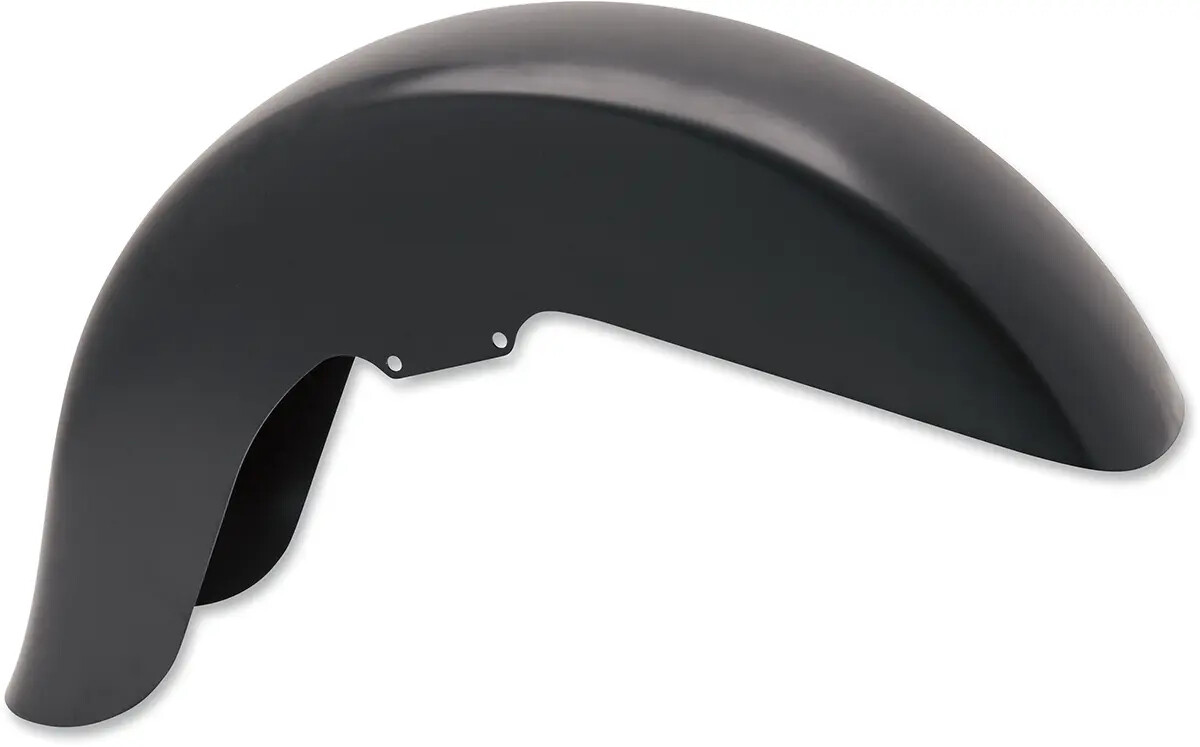

FENDER BENCHMARK FT 21

Benchmark Front Fender for Softails

• Stamped from 14-gauge U.S. steel, these 6-1/2" wide fenders are E-coated to prevent rust and corrosion with the lowest paint prep in the industry
• The use of precision deep-draw stamping technology ensures a consistent flawless finish while minimizing body work
• May also be used in a variety of custom applications
• No mounting blocks required
• Made in the U.S.A.

For FXS/FXST/FLST models (except springers) and custom applications.

COLOR/FINISH	E-Coating
FENDER WIDTH	165,10 mm (6,50")
MATERIAL	Steel
MODEL	Benchmark
HEIGHT	337,00 mm (13,25")
UNITS	Each
PRODUCT NAME	Fender
MOUNTING POSITION	Front
STRAIGHT LINE LENGTH	800,10 mm (31,50")
FOR WHEEL SIZE	533,40 mm (21,00")
CONTOUR LENGTH	1104,90 mm (43,50")
OUTSIDE MOUNTING WIDTH METRIC	168.275 mm
OUTSIDE MOUNTING WIDTH IMPERIAL	6.625"
OUTSIDE MOUNTING WIDTH	168,275 mm (6,625")
INSIDE MOUNTING WIDTH IMPERIAL	6.3125"
FOR WHEEL SIZE METRIC	533.40 mm
INSIDE MOUNTING WIDTH	160,34 mm (6,3125")
INSIDE MOUNTING WIDTH METRIC	160.34 mm
FOR WHEEL SIZE IMPERIAL	21.00"
BASE FINISH	E-Coating
