    main product photo

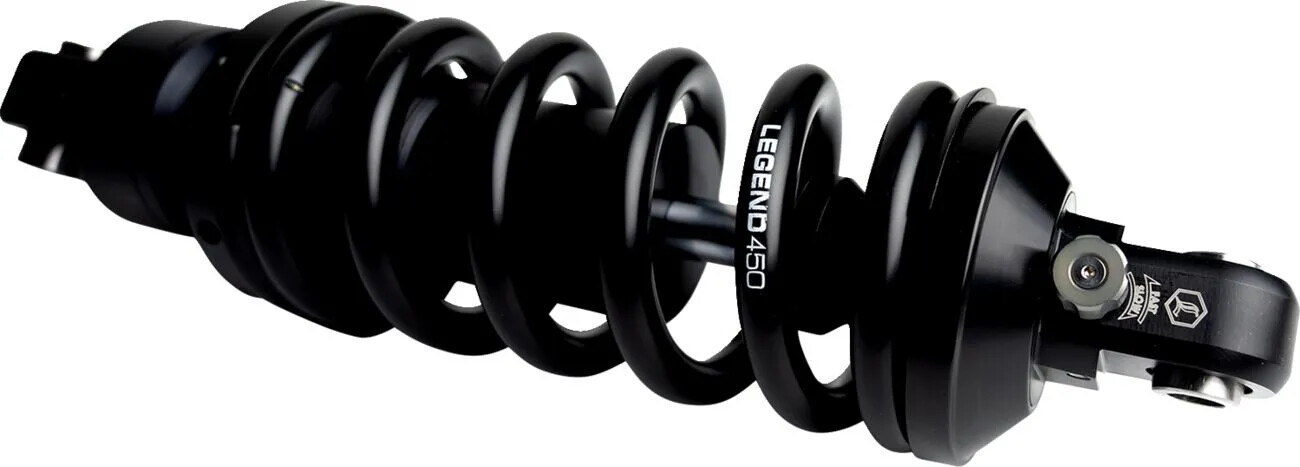

    SHOCKS REVO A 12.5 STD

    Be the first to review this product
    In stock
    SKU
    13102313
    LEGEND SUSPENSION
    Special Price €1,247.00 Regular Price €1,296.00
    Dispatching between 06.10.2026 and 07.10.2026
    Ship to EE Calculate Shipping Cost
    Add to Compare
    LHV Inbank Bigbank Esto Esto3 Liisi Svea
    Calculate instalment
    ▼
    Select provider
    Down payment
    €
    Loan amount: –
    Payment period
    24 months
    3 months 60 months
    Monthly payment – €
    Product price –
    Loan amount –
    Total amount –
    Interest cost –
    Interest rate –
    Max loan amount –

    The calculator is informative. The final offer depends on the provider's terms and credit decision.

    • All new Revo-A coil design for the M-Eight Softail
    • Available in 12.5", 13", and 13.5", standard or heavy-duty applications
    • Revo-A coil spring provides superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
    • Provides optimum rebound performance that can be fine-tuned for any given rider weight, personal ride preference, or personal riding style
    • Adjustable preload for rider set up, also allows for minimal pre-load adjustment when changing between rider's weights and loads
    • Seven external knob adjustments allow fine-tuning of rebound utilizing needle valve technology to adapt to your riding style
    • Low friction sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bind
    • Hard anodized, machined billet aluminum 46 mm mono tube utilizes a lightweight high flow piston design for improved fluid flow resulting in unmatched handling and bike control
    • Hard chromed shaft is 14% larger for increased strength
    • High quality chrome-silicon spring for consistent spring rate for the life of the motorcycle
    • Internal floating nitrogen piston ensures consistent damping performance
    • Deflective disc valving self-adjusts to frequency and ensures controlled performance
    • Legend's durable and low friction sealing system and sliding bearings provide improved performance and feel
    • Available in Black Type III hard coat anodize
    • Easy installation and adjustment replacing the stock shock and mounts with original OEM hardware
    • Sold as Mono Shock (1 shock only)
    • Preload wrench included
    • Designed for optimum performance with the Legend Axeo front suspension
    • Lifetime Warranty
    • Made by hand in Sturgis, SD, USA
    • P65 WARNING: Cancer and Reproductive Harm.
    • 13" is standard length for FLHC/FXFB/FXLRS/FXLRST. Heavy Duty applications are recommended for 350 lb + rider and passenger total weight. Also consider heavy-duty if the majority of your riding is 2 up with a passenger and/or gear.
    Brand
    LEGEND SUSPENSION
    Vendor part number
    1310-2313
    Adjustment Type
    Adjustable Rebound Damping
    Color/Finish
    Black, Anodized
    Duty
    Standard
    Extended Length
    318,00 mm (12,50")
    Material
    Billet Aluminum
    Model
    Revo-A
    Mounting Position
    Rear
    Product Name
    Shock Absorber
    Reservoir Location
    Internal
    Type
    Coilover Monotube
    Units
    Each
    More Information
    Weight 4.240000
    Height 152
    Width 395
    Brand LEGEND SUSPENSION
    Lenght 413
    Availability In the central warehouse
    Supplier reference 1310-2313
    Ships in 1 business day
    Campains Suvelõpu tühjendus
    0
    Rating:
    0% of 100
    Reviews
    Write Your Own Review
    Only registered users can write reviews. Please Sign in or create an account

    This product fits these motorcycles

    22 models, 1 makes

    HARLEY-DAVIDSON

    • FLDE 1750 ABS2018-2020
    • FLFB 1750 ABS2018-2020
    • FLFBS 1868 ABS2018-2024
    • FLHC 1750 ABS2018-2022
    • FLHCS 1868 ABS2018-2024
    • FLI 1868 ABS2024
    • FLSB 1750 ABS2018-2024
    • FLSL 1750 ABS2018-2021
    • FXBB 1750 ABS2018-2020
    • FXBBS 18682021
    • FXBBS 1868 ABS2021-2024
    • FXBR 1750 ABS2018-2020
    • FXBR 1923 ABS2023-2024
    • FXBRS 1868 ABS2018-2022
    • FXFB 1750 ABS2018-2019, 2021
    • FXFBS 1868 ABS2018-2023
    • FXLR 1750 ABS2018-2020
    • FXLRS 1868 ABS2020-2021
    • FXLRS 1923 ABS2022-2024
    • FXLRST 1923 ABS2022-2024
    • FXST 17502021
    • FXST 1750 ABS2020-2024
