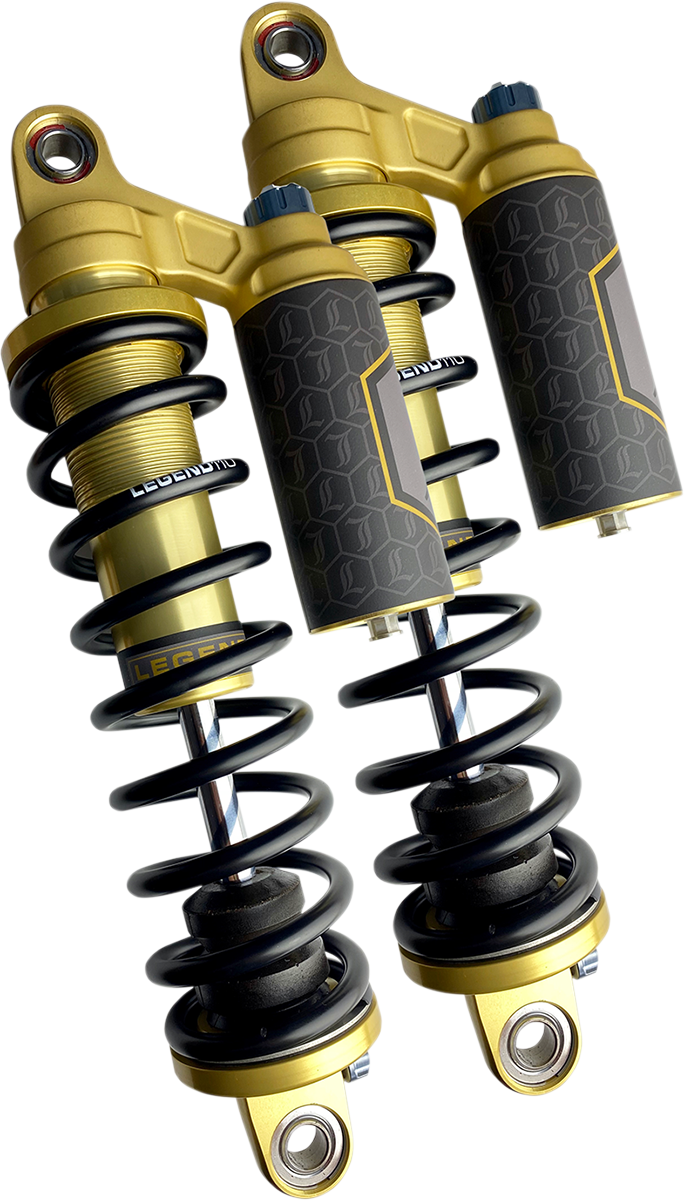

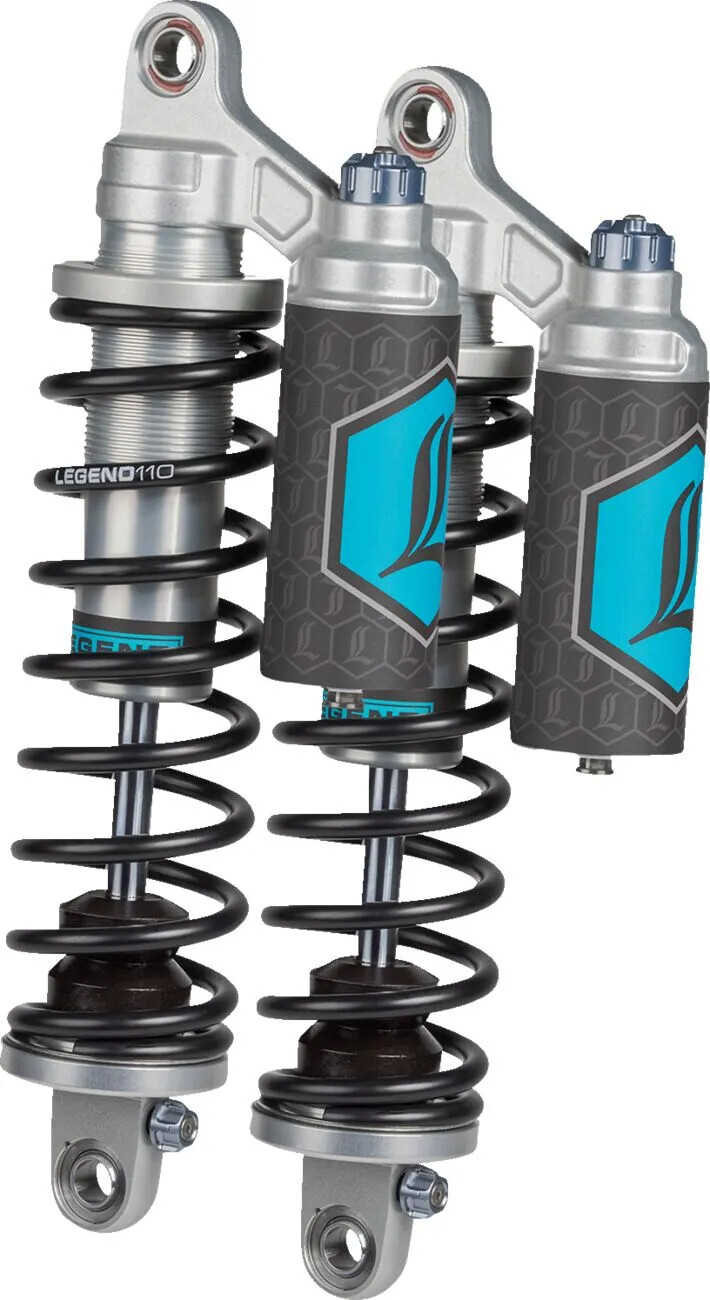

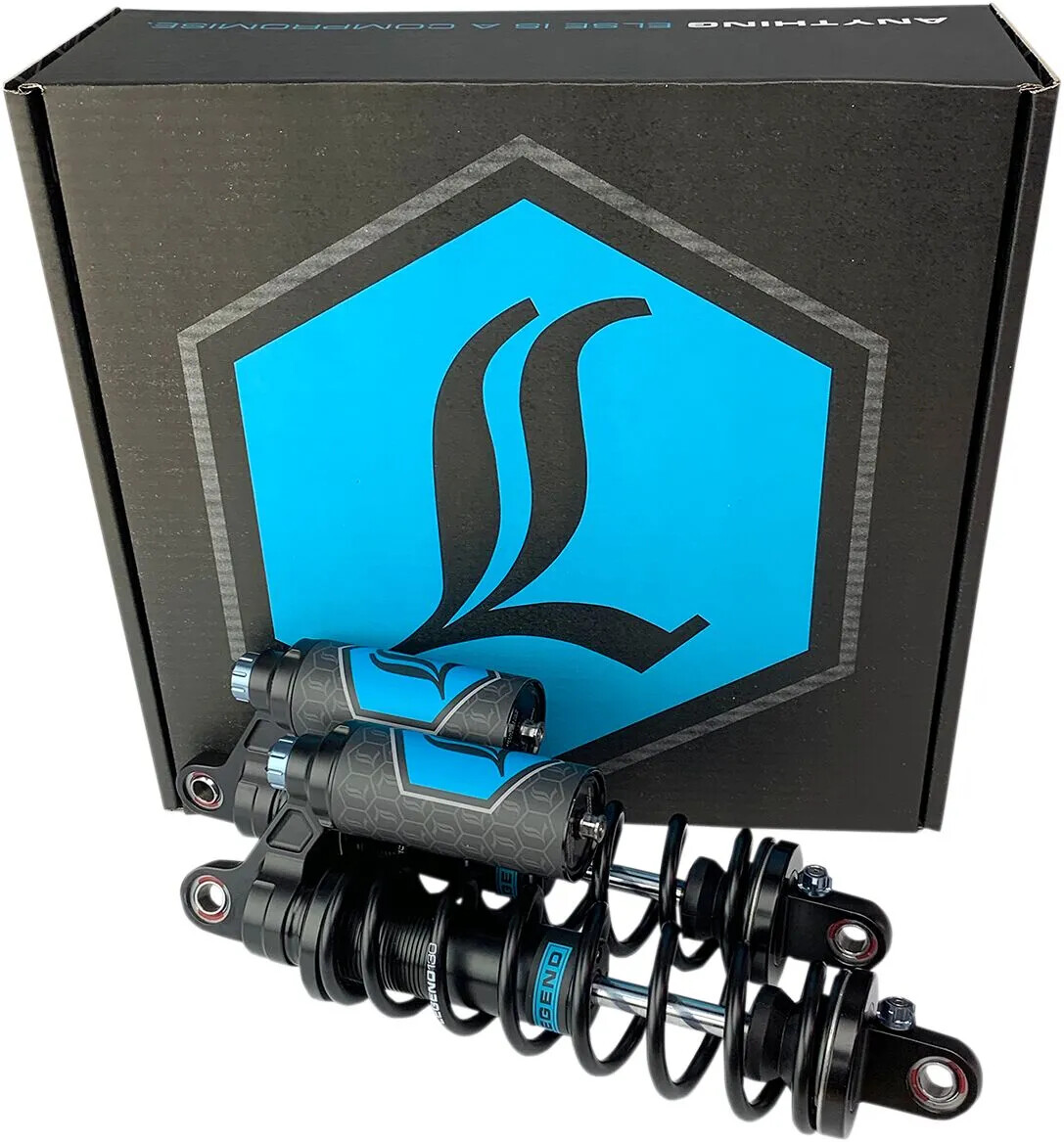

SHOCKS REVO-ARC PB 13 HD

REVO ARC Piggyback Coil Suspension

• Available in Black, Gold and Clear Type III Hard-coat Anodize
• Legend's touring specific spring rates produce superior ride quality and performance
• REVO coils provide improved plush ride quality, control, and resistance to bottoming-out
• REVO's extended coil length has larger "sweet spot" without increasing overall shock length
• Allows minimal pre-load adjustments by hand when changing between riders' weights or loads
• Adjusts by hand, no tools needed
• Available in 13" and 14", standard or heavy-duty applications
• Easy installation and alignment, provided by spherical bearings on both top and bottom
• 35 mm monotube construction
• Deflective disc valve stacks
• Balanced/Matched piston and base-valve design specific for these motorcycle applications
• Low friction sealing system and PTFE based sliding bearings for improved performance and feel
• Seven external knob adjustments allow fine-tuning of rebound
• Seven external knob adjustments allow fine-tuning of compression
• Provides optimum rebound and compression performance for any given rider weight, personal ride quality preference, or personal riding style
• Nitrogen gas bladder design allows ultra-fast response and stiction-free movement
• Light to heavy riders can fine-tune ride preference
• Aggressive to casual riding styles can tune to desired quality or personal preference
• Made by hand in Sturgis, SD USA
• FL: Heavy Duty applications are recommended for 500lb. + rider and passenger total weight.
• DYNA, FXR, SPORTSTER: Heavy Duty application are recommended for 250lb.+ rider and passenger total weight. Also consider Heavy Duty if the majority of your riding is 2-UP, stunt riding, or aggressive riding style.
• Heavy Duty application is recommended for 250lb.+ rider and passenger total weight. Consider Heavy Duty if the majority of your riding is 2-up, stunt ridings, or aggressive riding style.
