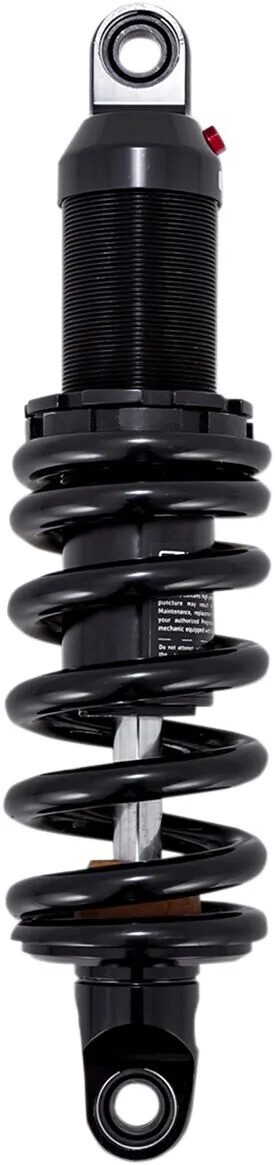

SHOCK 465 FL/FX 13.5

465 Series Shock for Softails

• High-pressure gas monotube design for the ultimate performance
• Five-position rebound adjustment to tailor the suspension for changing conditions and riding styles
• Threaded shock body with a wide range of adjustment to fine-tune preload and sag
• Hard anodized aluminum body and components for excellent durability and corrosion resistance
• 46 mm bore and deflective disc piston provides precise damping
• 16 mm hard chrome shaft rides on custom viton seals for low friction and leak-free reliability
• Each shock is custom tuned (damping and spring rate) for each fitment
• Remote Adjustable Preload (RAP) option features remote hydraulic adjuster to make easier to fine-tune suspension for different loads, passengers or luggage
• Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues such as swingarm/axle to exhaust contact as well as chain/ belt guard or tire contact.
• Heavy Duty Applications are recommended for bikes operating at or near the manufacturer’s maximum load rating over 50% of the time.

The 465 Series is a state of the art high pressure gas monotube shock design for the new Harley-Davidson M8 Softail models. It utilizes a large 46 mm bore with deflective disc damping, threaded body and a 5 position rebound adjuster. The beefy 16 mm hard chrome shaft rides on custom viton seals for a low friction and leak free life. Available in 12.20", 12.60", 13.10" & 13.50" shock lengths in a Standard and Heavy Duty spring rate for M8 Softail Models. Each shock is hand-built, tuned and dyno’d in our facility in California and come with a Lifetime Warranty.

BORE SIZE	46,00 mm (1,81")
COLOR/FINISH	Anodized| Black
MATERIAL	Aluminum
MODEL	465 Series
TYPE	Coilover Monotube
UNITS	Each
PRODUCT NAME	Shock Absorber
MOUNTING POSITION	Rear
DUTY	Standard
DAMPING METHOD	Gas Charged
EXTENDED LENGTH	343,00 mm (13,50")
SPRING TYPE	Single Progressive Rate
ADJUSTMENT TYPE	Threaded Preload Adjustable
RESERVOIR LOCATION	Internal
