BELT DRIVE 1-5/8 90-06FLT

8mm Belt Drive with Lock-Up Clutch

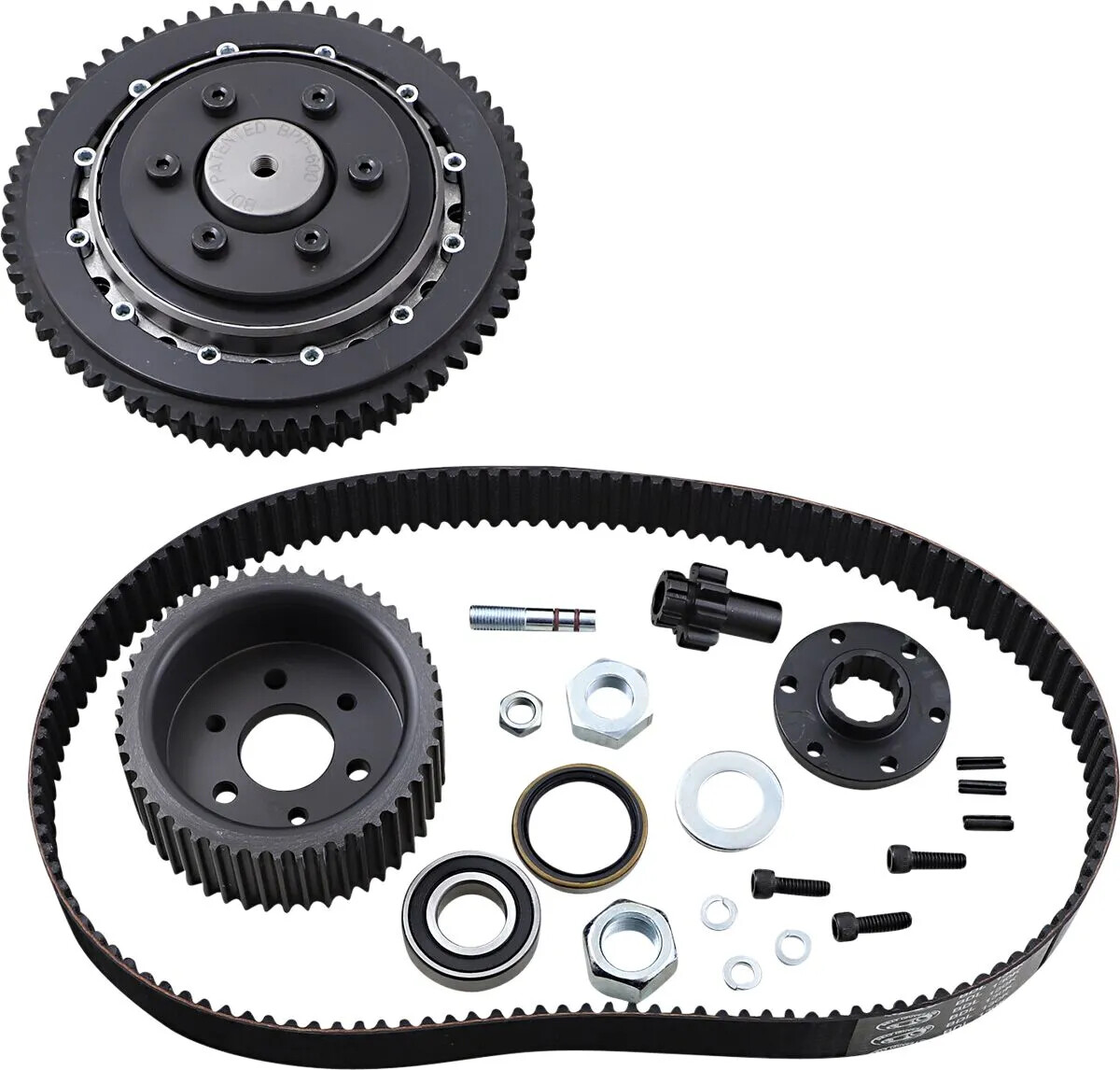

• 1-5/8" kits include front pulley, belt, clutch hub, clutch basket and aramid clutch set (consists of two half plates, four full plates and five steel drive plates)
• Direct bolt-in applications
• 3" electric start kits include front pulley, belt, clutch hub and clutch basket and aramid clutch set (consists of two half plates, four full plates and five steel drive plates), 6061 T-6 billet motor plate, outside guard and polished pulley cover
• All systems come with the Quiet Clutch and ball-bearing lockup design pressure plate
• Lockup design applies extra pressure to the clutch plates for positive engagement with no clutch slippage
• No increase in lever pull effort
• Rear pulley has a 40mm, double-row bearing with an inner stress-proof steel clutch hub to support the clutch
• Replacement components available separately
• Made in the U.S.A.
• 3" systems are not designed for use with floorboards.
• Not for use with offset primaries.
