CAM KIT RS 487 ST CHAIN DRIVE

Be the first to review this product
In stock
SKU
09251623
FEULING PARTS
Special Price €2,263.00 Regular Price €2,585.00
Dispatching between 02.11.2026 and 15.11.2026
Ship to EE Calculate Shipping Cost
Add to Compare
LHV Inbank Bigbank Esto Esto3 Liisi Svea
Calculate instalment
▼
Select provider
Down payment
€
Loan amount: –
Payment period
24 months
3 months 60 months
Monthly payment – €
Product price –
Loan amount –
Total amount –
Interest cost –
Interest rate –
Max loan amount –

The calculator is informative. The final offer depends on the provider's terms and credit decision.

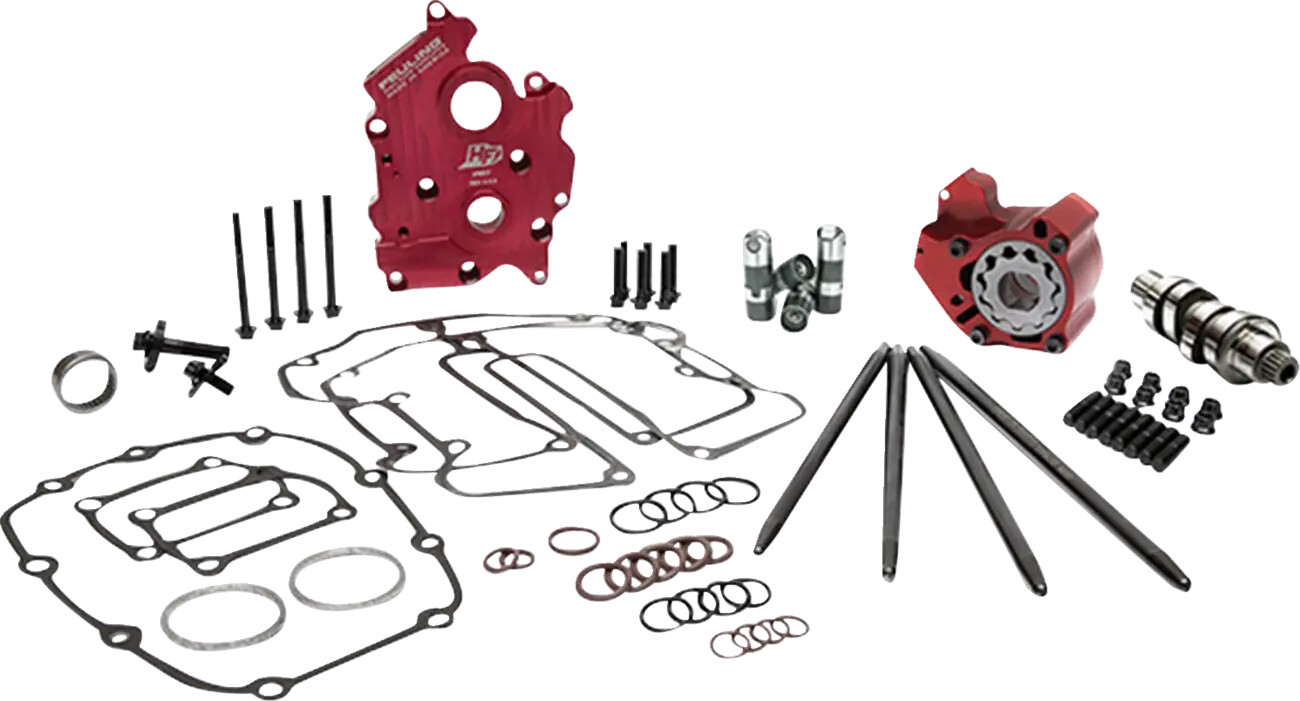

  • 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Sort Travel Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
  • 487 Reaper Camshaft.
  • Bolt-in
  • Chain Drive
  • Camshaft for 114" and 117" engine
  • Responds very well to increased bore and or compression
  • Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
  • RPM range 2,250 - 6,100
  • 38° overlap
  • Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
  • Cam Installation Kit
  • Includes cam bearing, cam/crank hardware and gasket/O-ring kit
  • Race Series® Short Travel Lifters
  • Short travel hydraulic roller lifters, standard OD (0.8420-0.8423)
  • Designed with 0.115 of total travel
  • One Piece Pushrod
  • HP+ 0.165 wall, +0.040 longer
  • Heavy duty 7/16" diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
  • Race Series® Oil Pump
  • Increase oil pressure, scavenge volume and engine oil flow
  • 30% more pressure gear volume over stock
  • 53% more scavenge gear volume over stock
  • 42% more scavenge volume with port sizing, matched passages and holes to the engine case
  • 46% more oil volume to the crankshaft and connecting rod bearing
  • 15°- 25° cooler engine temperatures
  • 15°- 30° cooler oil temperatures
  • 10-30 more PSI of oil pressure
  • Reduces wet sumping, blow by and oily air cleaners
  • Magnets in oil pump to help protect gears and pressure relief valve
  • Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
  • FEULING test results show a 50% reduction of engine sump oil level.
  • High Flow Camplate
  • Bolts into stock location
  • Billet 7075 aluminum
  • Made in the USA
  • Feuling does not recommend tuning beyond stock emissions standards.
  • Not for VVT water cooled engines. Kit Includes: • 487 Reaper Chain Drive Camshaft • Cam Installation Kit • Race Series® Short Travel Lifters • One Piece HP+® Pushrods • Race Series® Oil Pump • High Flow Camplate • ARP Rocker Studs and Nuts • Camplate/Oil Pump Fasteners
Brand
FEULING PARTS
Vendor Part Number
7273ST
Application
Water Cooled
Exhaust Close
17,5°
Exhaust Duration
241,5°
Exhaust Lift
0,487"
Exhaust Lift at TDC
0,146"
Exhaust Lobe Centerline
103,25°
Exhaust Open
44°
Features
Short Travel Lifters
Grind
487 Series
Intake Close
37°
Intake Duration
237°
Intake Lift
0,478"
Intake Lift at TDC
0,180"
Intake Lobe Centerline
98,5°
Intake Open
20,5°
Model
Reaper
Product Name
Camchest Kit
Type
Chain Drive
Units
Kit
More Information
Weight 0.010000
Height 0
Width 0
Brand FEULING PARTS
Lenght 0
Availability In the central warehouse
Supplier reference 7273ST
