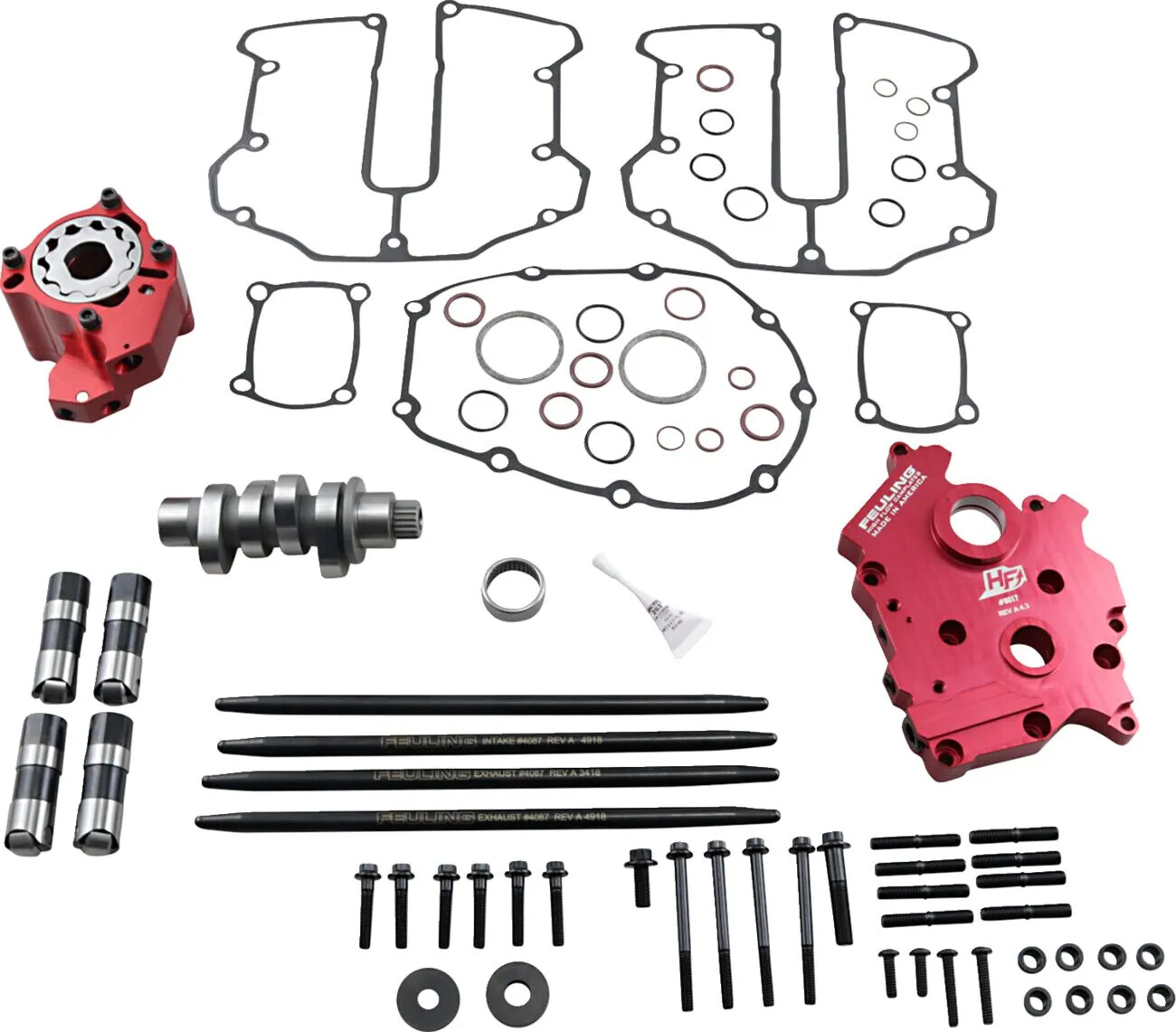

592 Race Series® Camchest Kit

  • Kit includes Race Series oiling system: billet 7075 oil pump, Race Series lifters and High Flow billet aluminum camplate
  • Oil pump is 50% harder and stronger than the factory pump, holds tighter tolerances under temperature
  • Race Series hydraulic lifters have a full .200” of total travel designed with slower bleed-down rate to handle heavy valve spring pressures, increase engine rpm before valve float and feature increased roller clearance for steep-ramped camshafts and clearance for the M-Eight front exhaust camshaft lobe flange
  • Quieter and smoother engine operation
  • Increase oil pressure, scavenge volume and engine oil flow
  • 15-25 degree cooler engine temperatures
  • 15-30 degree cooler oil temperatures
  • 10-30 more PSI of oil pressure
  • Eliminate wet sumping, blow by and oily air cleaners
  • Heavy duty .165” wall one-piece pushrods reduce valvetrain harmonics and increase valve lift
  • High-flow air cleaner and triple-stepped exhaust pipe highly recommended
  • High-lift high-load valve springs are required
  • RPM range 2850-6250



EXHAUST DURATION 264°
EXHAUST LIFT 0.592"
INTAKE DURATION 234°
INTAKE LIFT 0.578"
MODEL Race Series®
APPLICATION Exhaust| Intake
EXHAUST CLOSE 16°
EXHAUST OPEN 68°
INTAKE CLOSE 34°
INTAKE OPEN 20°
FEATURES Twin Cooled
TYPE Chain
UNITS Kit
PRODUCT NAME Camchest Kit
GRIND 592 Series
EXHAUST LOBE CENTERLINE 116°
INTAKE LOBE CENTERLINE 97°
EXHAUST LIFT IMPERIAL 0.592"
EXHAUST OPEN IMPERIAL 68°
INTAKE DURATION IMPERIAL 234°
INTAKE OPEN IMPERIAL 20°
INTAKE CLOSE IMPERIAL 34°
INTAKE LIFT IMPERIAL 0.578"
EXHAUST DURATION IMPERIAL 264°
EXHAUST CLOSE IMPERIAL 16°
EXHAUST LOBE CENTERLINE IMPERIAL 116°
INTAKE LOBE CENTERLINE IMPERIAL 97°
More Information
Weight 5.190000
Height 150
Width 280
Brand FEULING PARTS
Lenght 415
Availability In the central warehouse
Supplier reference 7268
Ships in 1 business day
Campains Outlet
Fitment chart (old) HARLEY DAVIDSON FLHTCU 1750 ABS ELECTRA GLIDE ULTRA CLASSIC 107 2017-2018 FLHTCUTG 1868 ABS TRI GLIDE ULTRA 114 2021-2022 FLHTCUTGSE 1923 ABS TRI GLIDE CVO 117 2022 FLHTCUTGSE 1923 ABS TRI GLIDE ULTRA CVO 117 2021 FLHTK 1750 ABS ELECTRA GLIDE ULTRA LIMITED 107 2017 FLHTK 1750 ABS ULTRA LIMITED 107 2018 FLHTK 1750 ABS ULTRA LIMITED ANNIVERSARY 107 2018 FLHTK 1750 ABS ULTRA LIMITED SHRINE EDITION 107 2018 FLHTK 1868 ABS GLIDE ULTRA LIMITED 114 2019-2022 FLHTK 1868 ABS ULTRA LIMITED SHRINE EDITION 114 2019-2021 FLHTKL 1750 ABS ELECTRA GLIDE ULTRA LIMITED LOW 107 2017 FLHTKL 1750 ABS ULTRA LIMITED LOW 107 2018 FLHTKL 1868 ABS ULTRA LIMITED LOW 114 2019 FLHTKSE 1868 ABS ELECTRA GLIDE ULTRA LIMITED CVO 114 2017 FLHTKSE 1923 ABS ULTRA LIMITED CVO 117 2018-2021 FLHTKSE 1923 ABS ULTRA LIMITED CVO ANNIVERSARY 117 2018 FLHXSE 1868 ABS STREET GLIDE CVO 114 2017 FLHXSE 1923 ABS STREET GLIDE CVO 117 2018-2022 FLTRK 1868 ABS ROAD GLIDE LIMITED 114 2020-2022 FLTRKSE 1923 ABS ROAD GLIDE LIMITED CVO 117 2022 FLTRU 1750 ABS ROAD GLIDE ULTRA 107 2017-2018 FLTRU 1868 ABS ROAD GLIDE ULTRA 114 2019 FLTRXSE 1923 ABS ROAD GLIDE CVO 117 2018-2022
