PISTN KT TRKR SPRTSTR STD

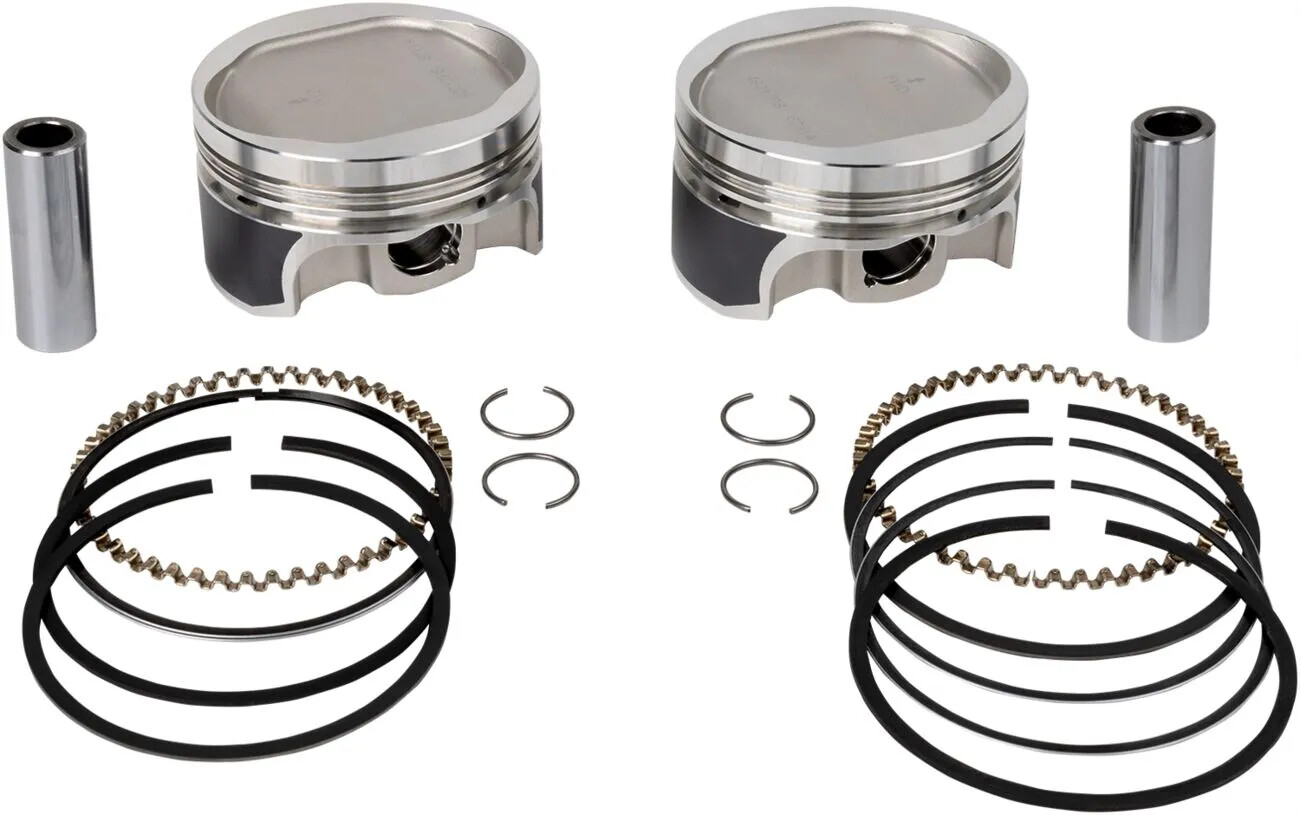

Tracker Series Piston

• Forged piston crown with generous valve pockets for big valves and cams
• Precision-fit rings selected for each application for ultimate sealing
• Force-fed pin oiling provides enhanced lubrication of the piston pin
• Pressure seal groove reduces ring lifting and power loss
• ArmorGlide® skirt coating reduces friction, providing quieter operation and improving scuff resistance
• Valued-packaged with two pistons, rings, piston pins and circlips
• Made in the U.S.A

2008-2020 models will require the use of 1200cc cylinders

DISPLACEMENT	1200 cc
COMPRESSION RATIO	9,5:1
UNITS	Kit
PRODUCT NAME	Piston Kit
STROKE LENGTH	3-13/16"
PISTON SIZE	Standard
PISTON HEAD SHAPE	Reverse
SKIRT COATING	ArmorGlide®
PISTON SIZE IMPERIAL	Standard
COMPRESSION RATIO IMPERIAL	9.5:1
