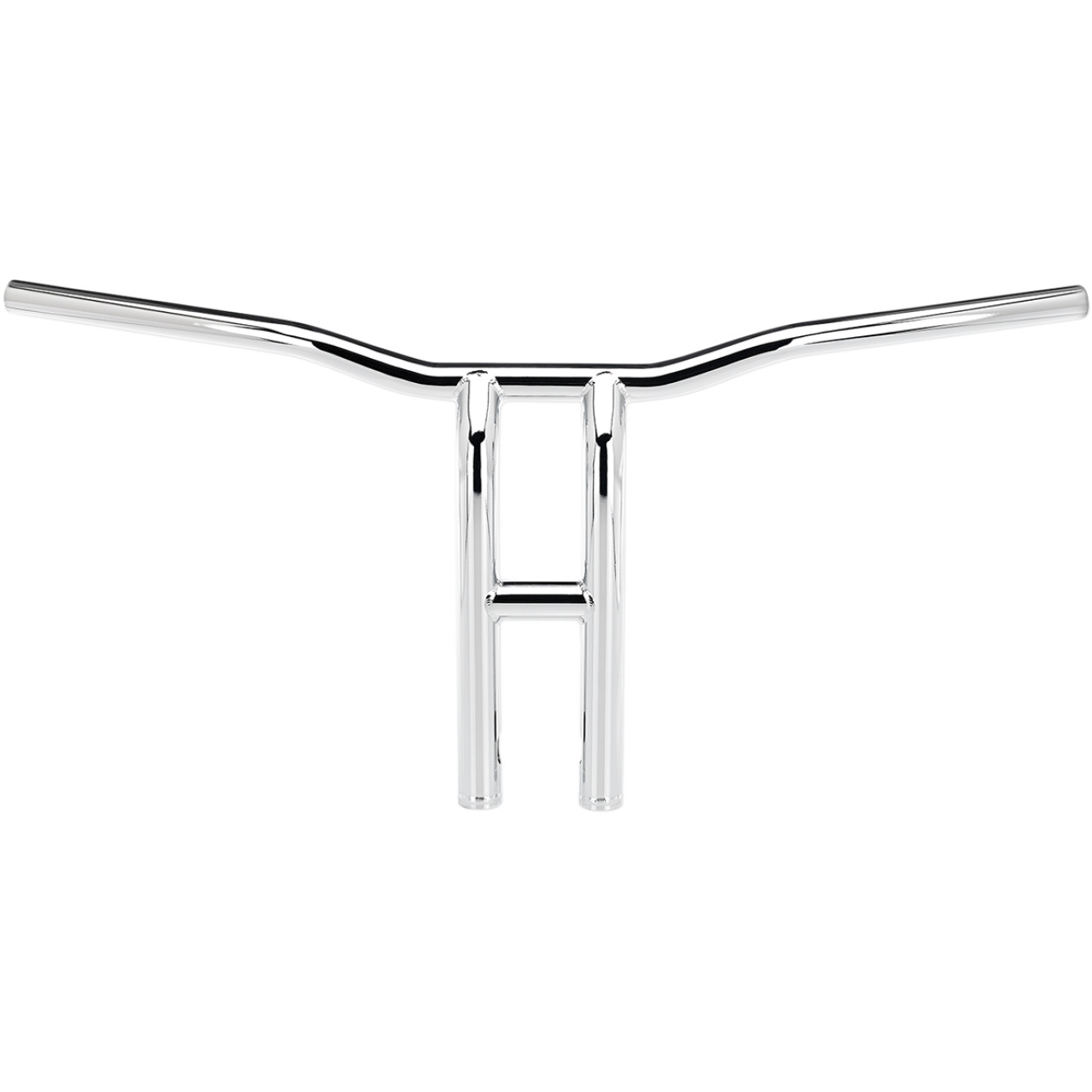

Lenksud Biltwell Ty

1" Handlebar

• Manufactured from 1" OD x .120" wall seamless 4130 chromoly tubing
• All bends are created with internal mandrels on a CNC bender to reduce flat spots in the bends
• All welded joints are precision-mitered and TIG-welded
• Not notched for TBW applications.

Vertical uprights have 1-1/4" OD Pullback models place handlebars 2" closer to the rider

CENTER WIDTH	88,9 mm (3-1/2")
COLOR/FINISH	Chrome
MATERIAL	Chromoly
PULLBACK/SWEEP	69,9 mm (2-3/4")
WIDTH	77,5 cm (30-1/2")
END RISE	35,5 cm (14")
FEATURES	Smooth, Unknurled
RISE	35,5 cm (14")
HANDLEBAR DIAMETER	28,6 mm (1-1/8")
UNITS	Each
CLAMPING DIAMETER	25,4 mm (1")
CONTROLS DIAMETER	25,4 mm (1")
PRODUCT NAME	Handlebar
BASE COLOR	Silver
BASE FINISH	Chrome
