brake disc set swiing EBR Harry for Puch

Brake disc system suitable for Puch mopeds with 5-star cast wheel. The set consists of very high quality and accurately fitting components of the brand swiing and was designed for use with EBR Harry forks.

No adjustments are necessary for mounting on the vehicle! Even the brake fluid is already filled in, so that the components can be screwed together directly. The set comes with a 90cm long steel braided brake cable. This should be taken into account when choosing the handlebar. The spacer sleeves are to be positioned in the direction of travel left 26.25mm long and right 23.5mm long. To secure the screw connections must be mandatory to use a screw lock such as Loctite.

Also available as a complete set with the matching forks or as a set for hydraulic forks.

Contents:

• Brake caliper
• Steel flex brake cable
• Brake lever
• Brake disc
• Wheel axle
• Wheel hub
• Distance sleeves
• Fastening material

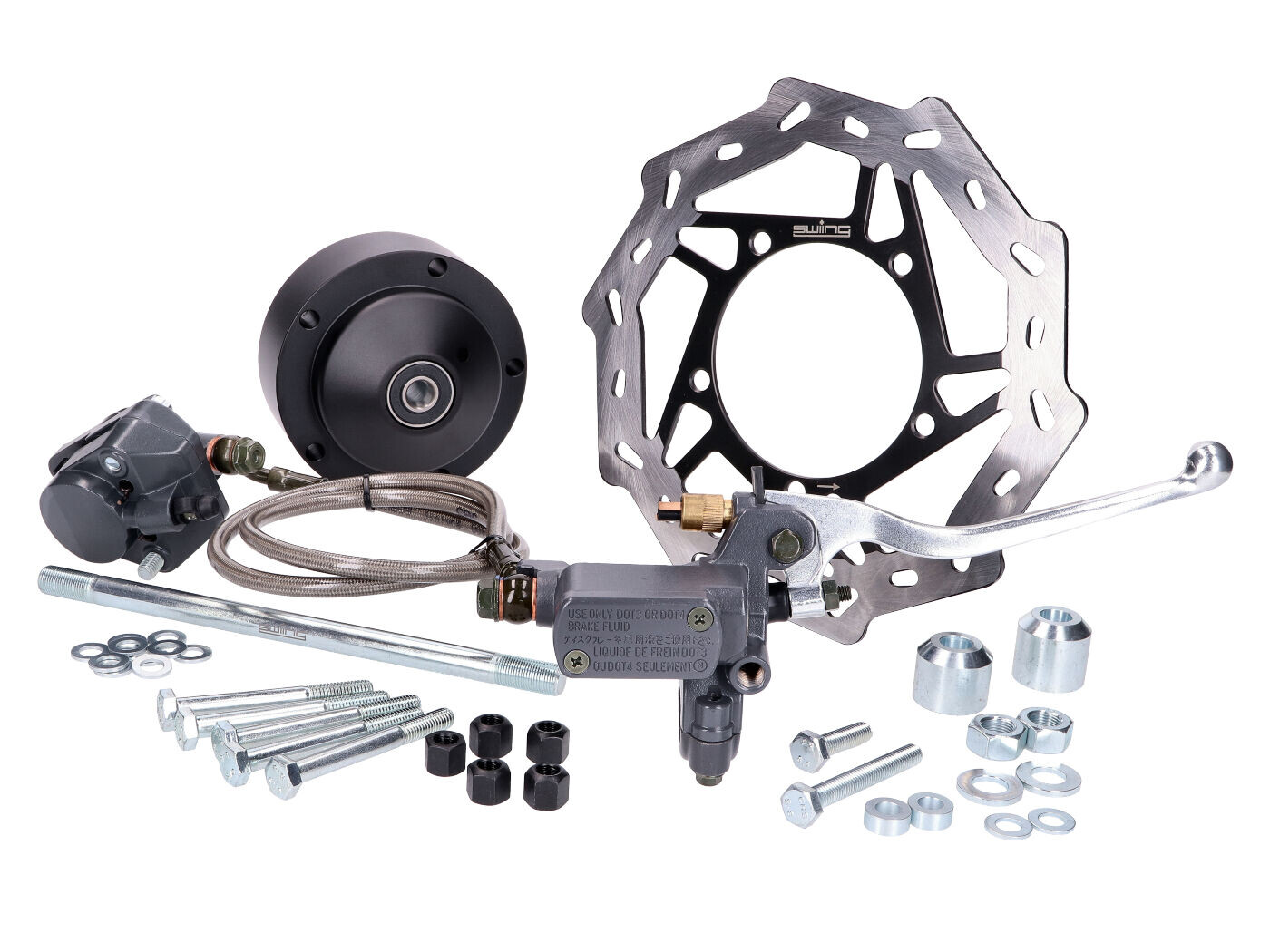

Scope of delivery as shown on the product picture.
