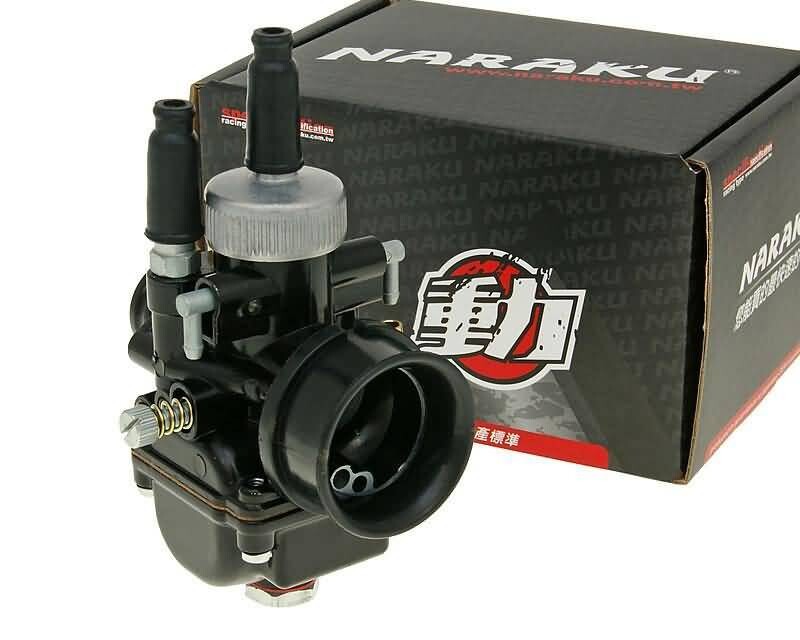

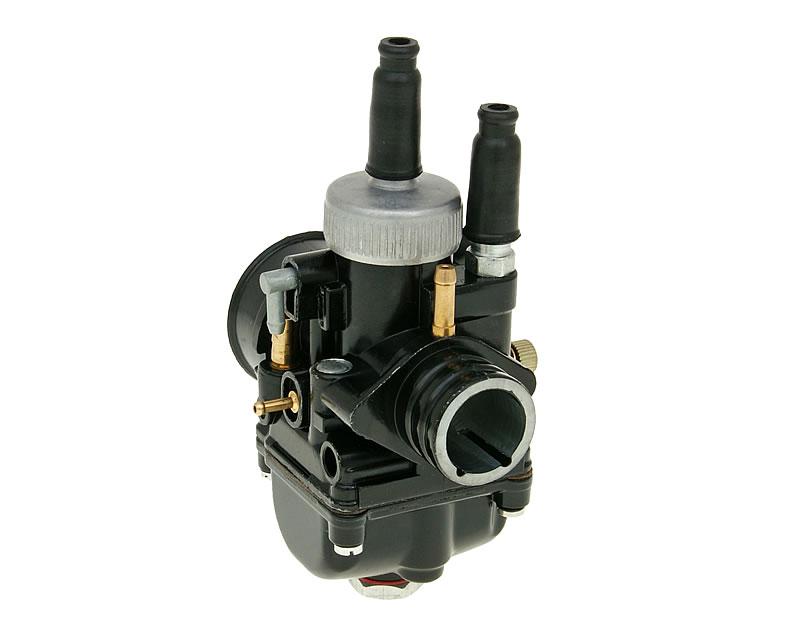

carburetor Naraku Black Edition 19mm

Naraku carburettor Black Edition for 70cc scooters and mopeds. Aluminium. Easy to tune, inconspicuous, and available in different designs.

The carb features oil and pressure connections and comes supplied as follows: Main Jet 60 (M5 type), Pilot Jet 45, Needle W16.

No vehicle-specific use, adapters must be used for tight clearance fits. Manual choke.

Connection width
Air filter: 32-38.5mm
Intake manifold: 25mm
