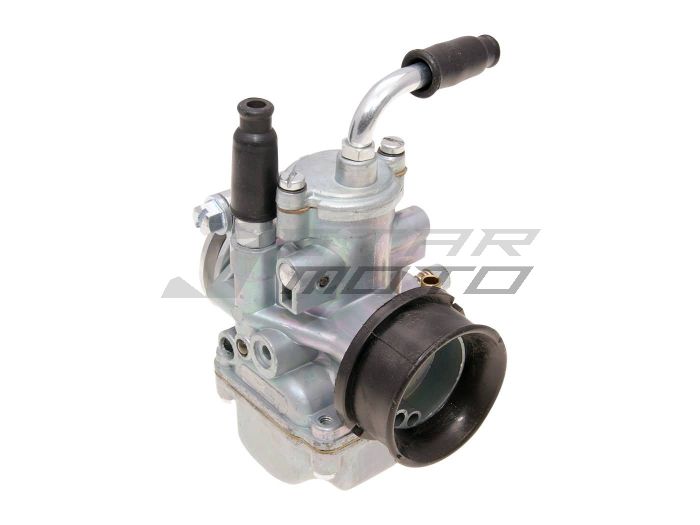

carburetor Naraku V.2 19mm with clamp fixation 24mm and manual choke

Carburetor with clamp fixation (direct mount) are used where the carburetor is directly mounted on a stiff intake manifold. This is necessary on stiff stock intake manifolds coming with the vehicle or on several tuning intake manifolds. Generally we show the sleeve diameter of the carb flange in the title of the carb. In addition, the connection widths for intake manifolds can be found on matching intake manifolds.

Naraku tuning carburetor with Naraku connector for use with 38mm air filter connections, ideal for 70cc scooters and mopeds.

Set Up as follows:
Main Jet 85 (Dellorto M5)
Idle Jet 55
Choke 55.
Intake Connection 24mm
Air Filter Connection 32/38mm.
Manual Choke (not supplied).
