SHOCK 990 91-05 FXD 13.5

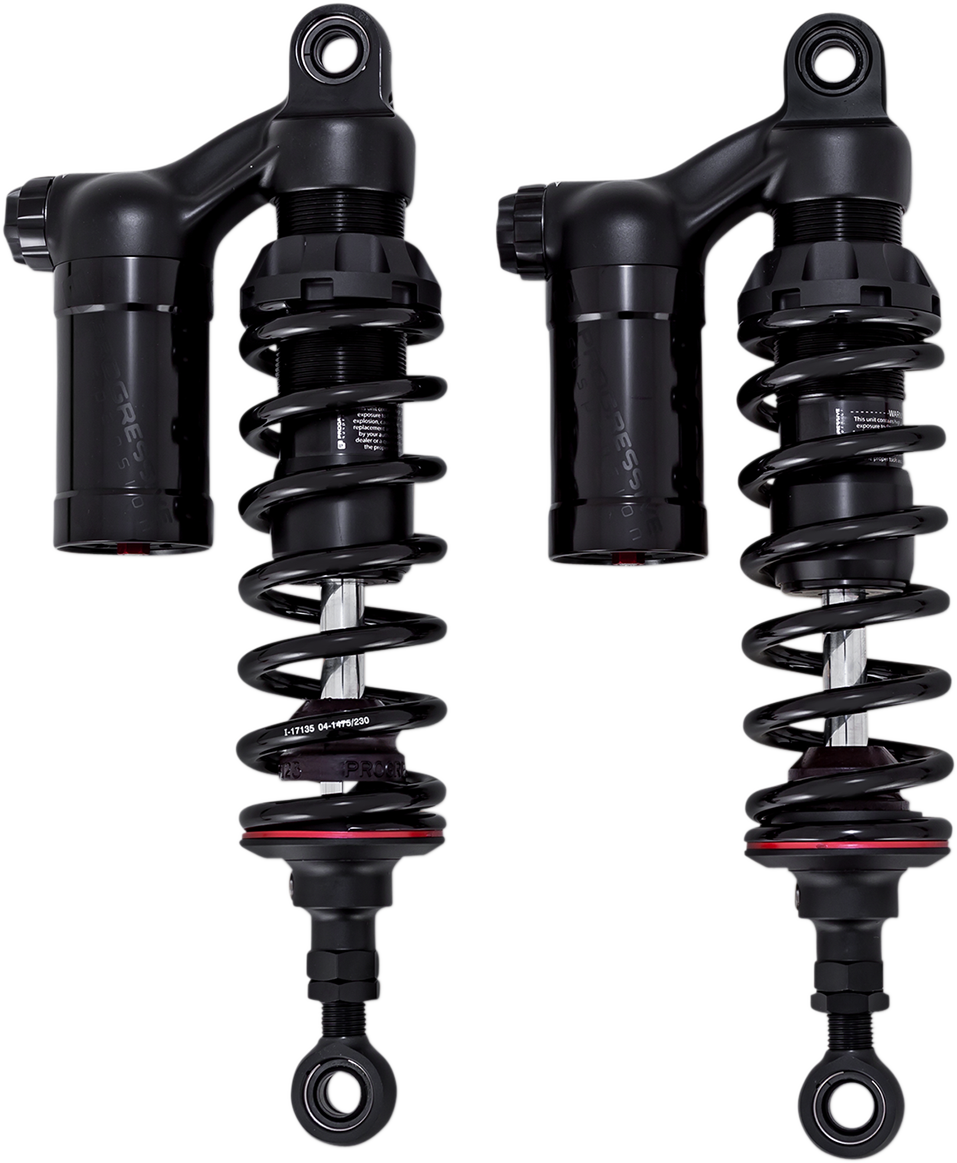

990 Series Piggyback Shocks

• Easily accessible adjustment knobs for high-speed and low-speed compression damping
• 0.4” adjustable height eyelet
• High-pressure gas monotube
• Captured designed jounce bumper for smooth and controlled bottoming
• Piggybacking reservoir
• Aluminum body
• Linear rate coil spring
• Deflective disc damping
• Made in the U.S.A.
• All shocks are measured center-of-eyelet to center-of-eyelet.
• A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.
• A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.
• Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/ axle to exhaust contact as well as chain/belt guard or tire contact.

Shocks longer than stock length on FXDB/FXDWG may cause Axle/Shock/Swingarm to contact exhaust system and clearances should be checked.

MATERIAL	Aluminum
MODEL	990 Series
TYPE	Coilover Monotube
UNITS	Pair
PRODUCT NAME	Shock Absorber
DUTY	Standard
DAMPING METHOD	Deflective Disc
EXTENDED LENGTH	343,00 mm (13,50")
ADJUSTMENT TYPE	Adjustable High and Low Speed Compression| Adjustable Rebound Damping| Adjustable Spring Preload
RESERVOIR LOCATION	Piggyback
