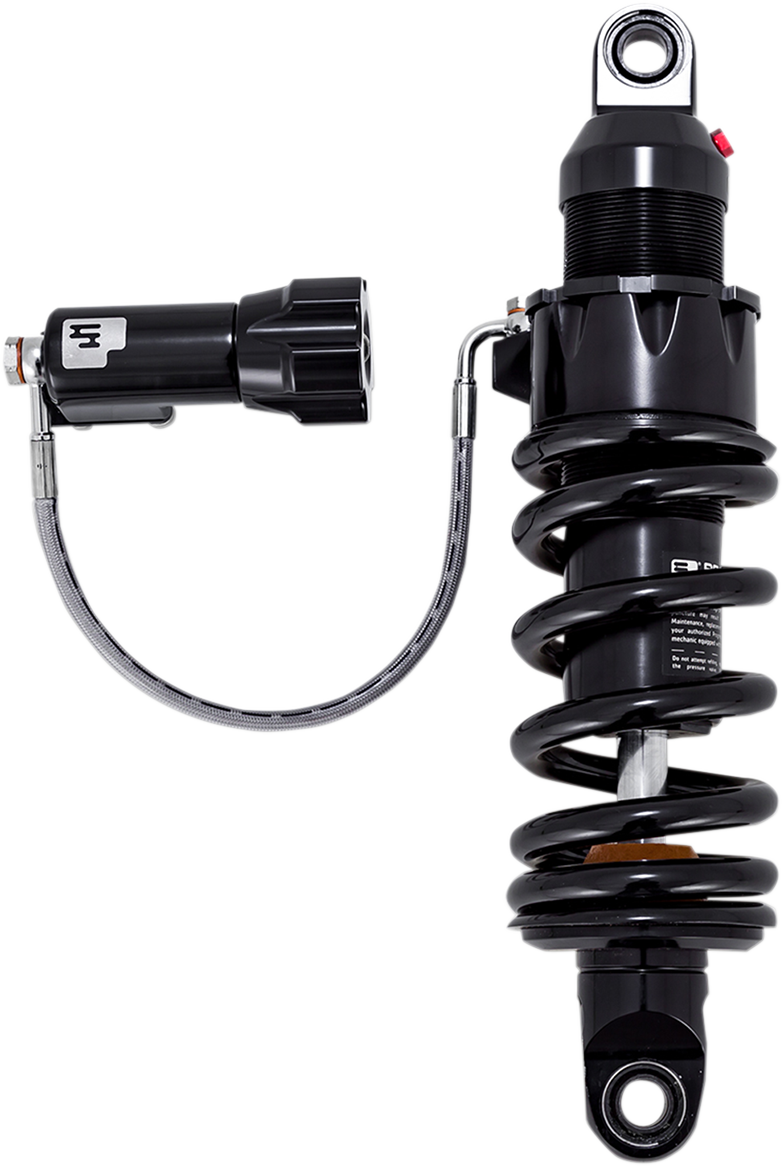

SHOCK 465 RAP FL/FX 13.5

465 Series Shock with Remote Adjustable Preload

• High-pressure gas monotube design for ultimate performance
• Remote Adjustable Preload (RAP) features a remote hydraulic adjuster to make it even easier to fine-tune your suspension for different loads, such as passengers or luggage
• Five-position rebound adjustment to tailor the suspension for changing conditions and riding styles
• Hard-anodized aluminum body and components for excellent durability and corrosion resistance
• 46 mm bore and deflective disc piston provide precise damping
• 16 mm hard-chrome shaft rides on custom viton seals for low friction and leak-free reliability
• Each shock is custom tuned (damping and spring rate) for each fitment
• Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues such as swingarm/ axle to exhaust contact, as well as chain/belt guard or tire contact.
• Heavy Duty Applications are recommended for bikes operating at or near the manufacturer’s maximum load rating over 50% of the time.

The 465 Series R.A.P. (Remote Adjustable Preload) is a state of the art high pressure gas monotube shock design for the new Harley-Davidson M8 Softail models. It utilizes a large 46 mm bore with deflective disc damping, threaded body and a 5 position rebound adjuster. The beefy 16 mm hard chrome shaft rides on custom viton seals for a low friction and leak free life. Every shock includes a R.A.P. mounting bracket. Available in 12.20", 12.60", 13.10" & 13.50" shock lengths in a Standard and Heavy Duty spring rate for M8 Softail Models. Each shock is hand-built, tuned and dyno’d in our facility in California and come with a Lifetime Warranty.

BORE SIZE	46,00 mm (1,81")
COLOR/FINISH	Anodized| Black
MATERIAL	Aluminum
MODEL	465 Series
TYPE	Coilover Monotube
UNITS	Each
PRODUCT NAME	Shock Absorber with Remote Adjustable Preload
MOUNTING POSITION	Rear
DUTY	Standard
DAMPING METHOD	Gas Charged
EXTENDED LENGTH	343,00 mm (13,50")
SPRING TYPE	Single Progressive Rate
ADJUSTMENT TYPE	Remote Adjustable Preload
RESERVOIR LOCATION	Internal
